Запчасти Case IH 230 (303[A]) - ATTACHMENTS, PNEUMATIC TIRE PUMP, SCHRADER, SPECIAL Attachments

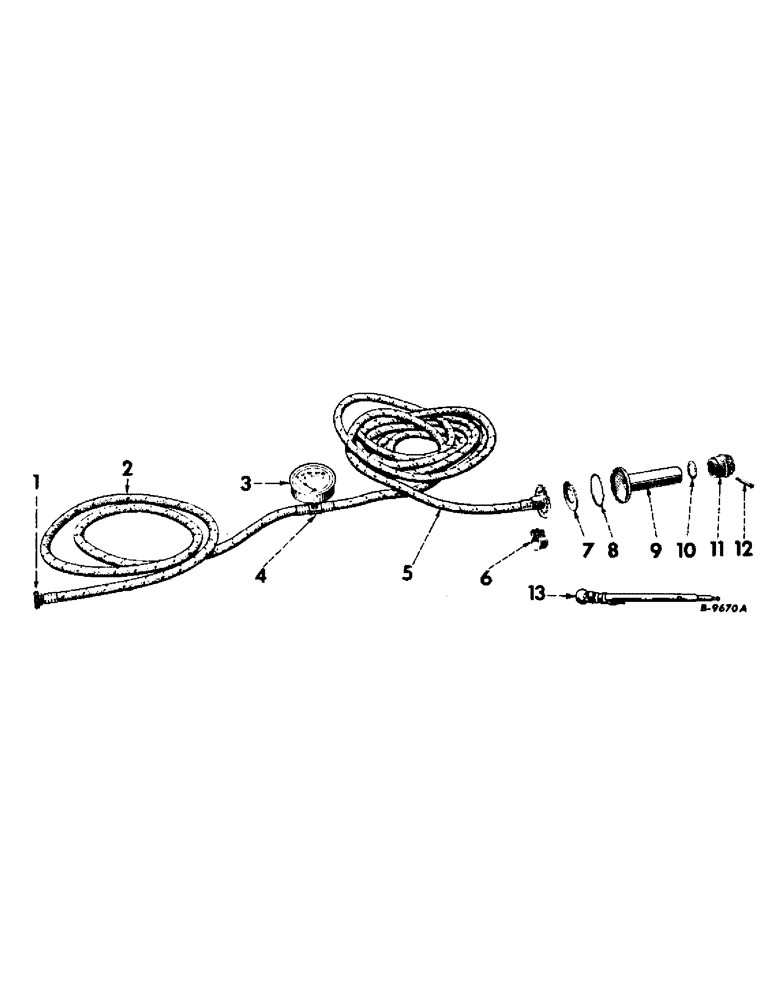

Схема запчастей Case IH 230 - (303[A]) - ATTACHMENTS, PNEUMATIC TIRE PUMP, SCHRADER, SPECIAL Attachments
11
2
12
10
8
7
1
6
4
13
3
9
5

Артикул

Название

Примечание

Количество

1

42813D

CONNECTOR, pump

1шт.

2

42808D

HOSE, tire pump (4 ft.)

1шт.

3

42809D

GAGE, air pressure

1шт.

4

42806D

CONNECTOR, air pressure gage

1шт.

5

42807D

HOSE, tire pump (12 ft.)

1шт.

6

62602D

CLAMP, hose

4шт.

7

42802D

DISC, rubber

1шт.

8

42812D

WASHER, fiber

1шт.

9

42800D

SHELL, long

1шт.

10

42811D

WASHER, rubber (inside adapter)

1шт.

11

NSS

NOT SOLD SEPARAT

ADAPTER, (no longer available for service)

1шт.

12

42810D

SCREW, attaching (for adapter)

1шт.

13

350488R1

GAUGE

GAGE, tire pressure (for use on air-water valves)

1шт.

Выбрано товаров: 13
