Запчасти Case IH 230 (213) - CHASSIS, SEAT AND SUPPORTS (12) - CHASSIS

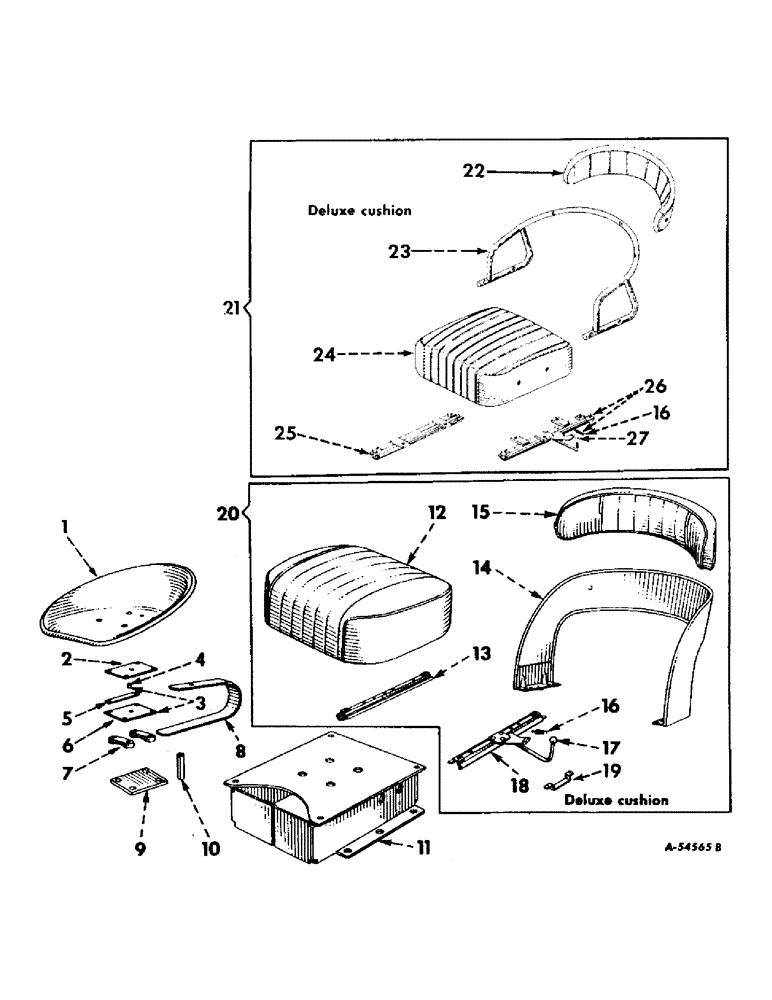

Схема запчастей Case IH 230 - (213) - CHASSIS, SEAT AND SUPPORTS (12) - CHASSIS
16
1
24
15
9
2
16
22
19
4
27
3
8
5
25
26
17
23
14
11
18
20
12
6
13
10
21
7

Артикул

Название

Примечание

Количество

1

351880R92

SEAT

(plain)

1шт.

1

357518R91

DRIVER SEAT

SEAT (deluxe upholstered) (not illustrated)

1шт.

2

362553R1

BRACKET, seat adjustment, upper

1шт.

373542R1

FARMALL, Serial Range: 240-501-2892

1шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL, Serial Range: 240-501-7992

1шт.

2

372542R1

BRACKET, seat adjustment, upper

1шт.

NSS

NOT SOLD SEPARAT

FARMALL 240-2893 up

1шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 240-7993 up

1шт.

3

362553R11

BRACKET, seat adjustment lower, assembly

1шт.

NSS

NOT SOLD SEPARAT

FARMALL, Serial Range: 240-501-2892

1шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL, Serial Range: 240-501-7992

1шт.

3

373542R11

BRACKET, seat adjustment lower, assembly

1шт.

NSS

NOT SOLD SEPARAT

FARMALL 240-2893 up

1шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 240-7993 up

1шт.

4

21061R1

DOWEL,3/8" x 1/2"

PIN, dowel, 3/8 x 1/2"

1шт.

5

362554R1

SPACER, seat adjustment

1шт.

NSS

NOT SOLD SEPARAT

FARMALL, Serial Range: 240-501-2892

2шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL, Serial Range: 240-501-7992

2шт.

6

362553R1

BRACKET, seat adjustment lower

1шт.

373542R1

FARMALL, Serial Range: 240-501-2892

1шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL, Serial Range: 240-501-7992

1шт.

6

372542R1

BRACKET, seat adjustment lower

1шт.

NSS

NOT SOLD SEPARAT

FARMALL 240-2893 up

1шт.

NSS

NOT SOLD SEPARAT

INTERNATIONAL 240-7993 up

1шт.

181397

BOLT,Hex, 7/16" - 20 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-20nf x 1-1/4"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

7

362556R1

CLAMP, seat spring

2шт.

187152

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW, cap, hex-hd., 1/2-13nc x 5"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

8

362555R1

SPRING, seat

1шт.

9

371718R1

SUPPORT, seat spring

1шт.

10

371719R1

SPACER, seat support

4шт.

11

370572R31

SUPPORT, seat

1шт.

12

371625R91

CUSHION

deluxe seat

1шт.

13

371629R91

RAIL, seat, R.H.

1шт.

154000

NET WRAP,Cross Fil Hd, 5/16" - 18 x 1 1/4"

SCREW, machine, rd-hd., cr-rec., 5/16-18nc x 1-1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

371626R91

SUPPORT, back, assembly

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

cap, hex-hd., 5/16-18 NC 1-1/4"

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

371627R91

CUSHION

back assembly

1шт.

16

96775R1

SPRING

1шт.

17

371700R1

KNOB, plastic

1шт.

18

371628R91

RAIL, seat, L.H., w/lever and knob, 371700R1 and spring, 273103R1

1шт.

154000

NET WRAP,Cross Fil Hd, 5/16" - 18 x 1 1/4"

SCREW, machine, rd-hd., cr-rec., 5/16-18NC x 1-1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

371630R1

GUIDE, handle

1шт.

20

371585R91

SEAT, deluxe cushion, assembly (Bostrom) (optional with 375178R91) (composed of (1) cushion 371625R91, (1) spring 273103R1, (1) cushion 371627R91, (1) support 371626R91, (1) guide 371630R1, (4) screw 180081, (1) knob 371700R1 (4) screw 154000

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

217907

SUPPORT

SCREW, cap, socket-hd., 5/16-18NC x 5/8"

4шт.

21

375178R91

SEAT, deluxe cushion, assembly (Milsco) (optional with 371585R91) (composed of (1) cushion 375179R1, (1) cushion 375181R91, (1) frame 375180R91, (1) knob 375184R1, (1) rail (L.H.) 375182R91 (1) rail (R.H.) 375183R91, (4) screw 120628, (7) screw 134440

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

217907

SUPPORT

SCREW, cap, soc-hd., 5/16-18NC x 5/8"

4шт.

22

375181R91

CUSHION, back assembly

1шт.

134440

SUPPORT

SCREW, mach., csk-ov-hd., 1/4-20NC x 1-3/4"

3шт.

23

375180R91

FRAME, seat assembly

1шт.

134440

SUPPORT

SCREW, mach., csk-ov-hd., 1/4-20NC x 1-3/4"

4шт.

24

375179R1

CUSHION, seat

1шт.

25

375183R91

RAIL, seat, R.H.

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

mach., slt-rd-hd., cd-pltd., 1/4-20NC x 1/2"

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

26

375182R91

RAIL, seat, L.H.

1шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

mach., slt-rd-hd., cd-pltd., 1/4-20NC x 1/2"

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

375184R1

KNOB, L.H. seat rail

1шт.

371584R91

PARTS ACCESSORY, deluxe cushion seat (consists of seat, 371585R91 and four nuts, 102634 and four screws, 217907)

1шт.

351438R93

PAD

detachable seat (rubber) (special)

1шт.

359483R91

PAD

detachable seat (jute) (special)

1шт.
