Запчасти Case IH 230 (302) - ATTACHMENTS, FENDER, SPECIAL, FARMALL 200 AND 230 TRACTORS Attachments

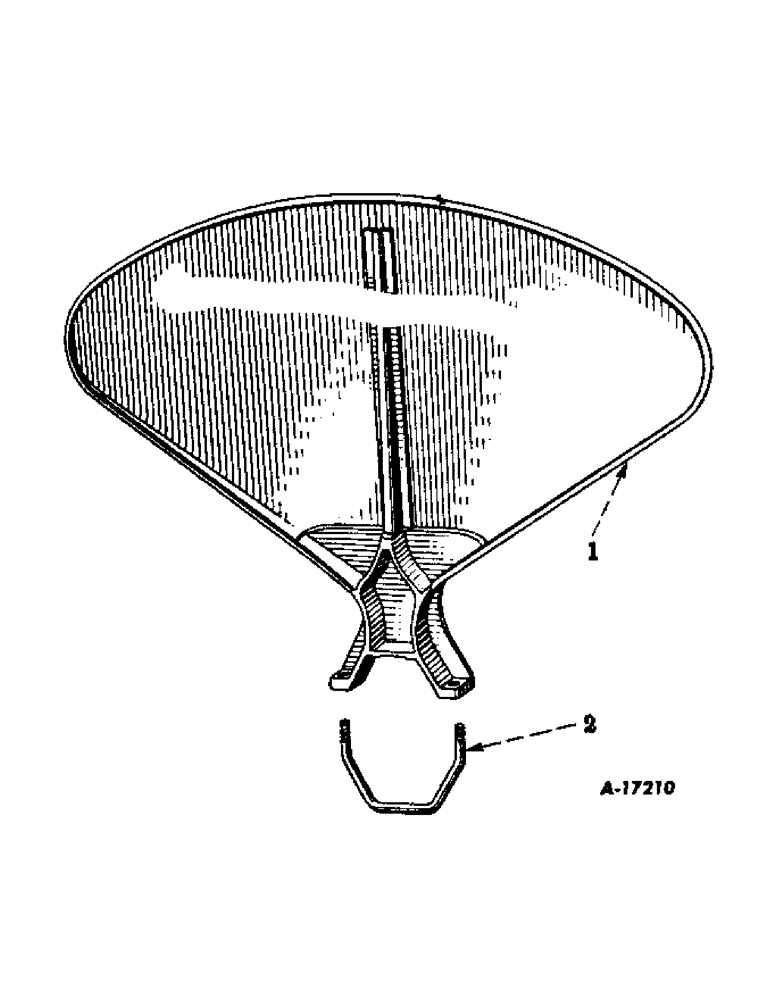

Схема запчастей Case IH 230 - (302) - ATTACHMENTS, FENDER, SPECIAL, FARMALL 200 AND 230 TRACTORS Attachments
1
2

Артикул

Название

Примечание

Количество

351255R91

FENDER PARTS ACCESSORY

1шт.

1

351248R92

FENDER

2шт.

2

351250R1

BOLT (SPREADER),1/2" - 20 x 4 3/4"

U-BOLT, fender

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

Выбрано товаров: 5
