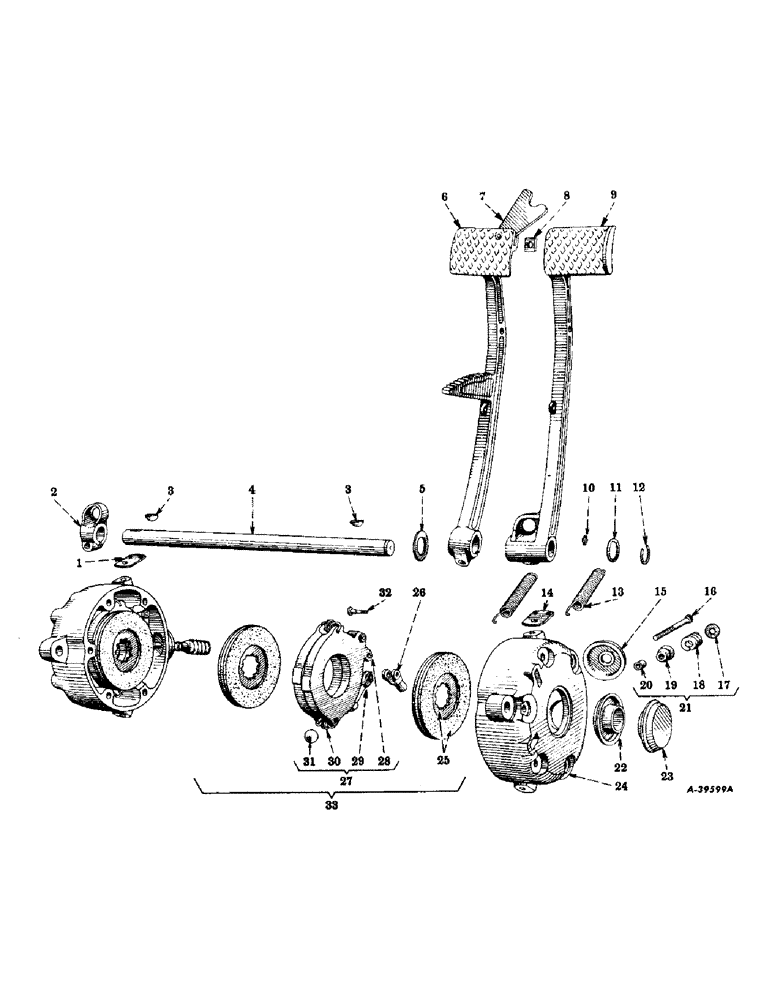

Запчасти Case IH 230 (204) - CHASSIS, BRAKES AND CONNECTIONS, FARMALL 200 AND 230 TRACTORS (12) - CHASSIS

1

355812R1

ANCHOR, clutch pedal return spring

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

355974R1

LEVER, brake shaft

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14nc

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, Woodruff, ni-stl., no. 13

2шт.

4

355971R1

SHAFT, brake pedal

1шт.

5

48983D

THRUST WASHER

thrust, brake pedal shaft

2шт.

6

355972R21

PEDAL, brake, L.H. (will work for 357736R91) (composed of (1) pedal 355972R2 (NSS), (1) plate 43751DB, (1) rivet 104087, (1) 51293D)

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 2-1/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

7

43751DB

LATCH, PEDALS

PLATE, lock, brake pedal

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

rd-hd., 1/4 x 1-1/4"

1шт.

8

51293D

SPRING

tension, brake pedal lock plate

1шт.

9

355973R2

PEDAL, brake, R.H. (will work for 357737R91)

1шт.

10

66584D

FITTING

lubrication

1шт.

11

40435D

WASHER, brake pedal shaft

1шт.

12

351215R1

RING, snap, brake shaft

1шт.

13

351210R1

SPRING

return brake pedal

2шт.

14

355812R1

ANCHOR, brake pedal return spring

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

355976R1

BOOT

enclosure

2шт.

16

355977R1

ROD

operating brake

2шт.

114494

NUT,Jam, 3/8"-24, G5

6шт.

17

575807R1

WASHER

steel, plain, 13/32" ID x 1" OD x no. 11 GA.

2шт.

18

355978R1

SPRING

brake operating rod

2шт.

19

355980R1

BALL

brake operating rod

2шт.

20

355979R1

SPACER

brake operating rod

2шт.

21

355977R11

ROD

operating, brake, assembly (composed of, (1) ball 355980R1, (3) nut 114494, (1) rod 355977R1, (1) spacer 355979R1, (1) spring 355978R1, (1) washer 575807R1)

2шт.

22

355970R1

RETAINER

PLUG, cup brake housing (open end plug)

2шт.

23

357101R1

PLUG

cup brake housing (closed end plug)

2шт.

24

355969R3

HOUSING, brake

2шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/2"

10шт.

25

368181R91

BRAKE

DISC, middle, w/bonded facing (will work for 356071R91)

4шт.

26

355975R1

CLEVIS COUPLING

YOKE, brake operating rod

2шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, rod end, 3/8 x 1-3/32"

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

27

364837R91

PLATE

DISC, actuating, assembly (will work for 356853R91) (composed of, (3) ball 16208R1, (2) disc (NSS), (1) link 356069R1 (1) link 356070R1, (2) nut 114493, (2) spring 354627R1, (2) stud 354625R1)

2шт.

If the brakes on Farmall 200 tractors 501 to 11117 should become ifefective, it is recommended that the increased ration linkage actuating discs or brakes be replaced in pairs (under PACKAGE, 366054R91) the new discs can be used with the old facings.

1шт.

28

356070R1

DRAG LINK

LINK, actuating (plain)

2шт.

29

356069R91

LINK

actuating (yoke)

2шт.

30

354627R1

SPRING

extension

4шт.

31

16028R1

BALL

7/8" dia.

6шт.

32

354625R1

STUD

actuating disc

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.

33

368180R91

BRAKE, double disc (includes rwo disc, 368181R91 and one disc, assembly 364837R91) (will work for 364836R91)

1шт.

356527R91

LINING SET, brake (consists of four linings, w/twenty rivets, 356073R1) (only for service on disc, w/riveted facing, 356071R91)

2шт.

356073R1

RIVET

tubular, stl., 3/16 x 1/2"

40шт.

366054R91

PACKAGE

field, double disc brake actuating disc (will work for 356853R91) (Farmall 200-501 to 11117) (consists of two disc, 364837R91 and diagram)

1шт.
