Запчасти Case IH 230 (197) - CHASSIS, REAR AXLE, INTERNATIONAL 240 TRACTORS (12) - CHASSIS

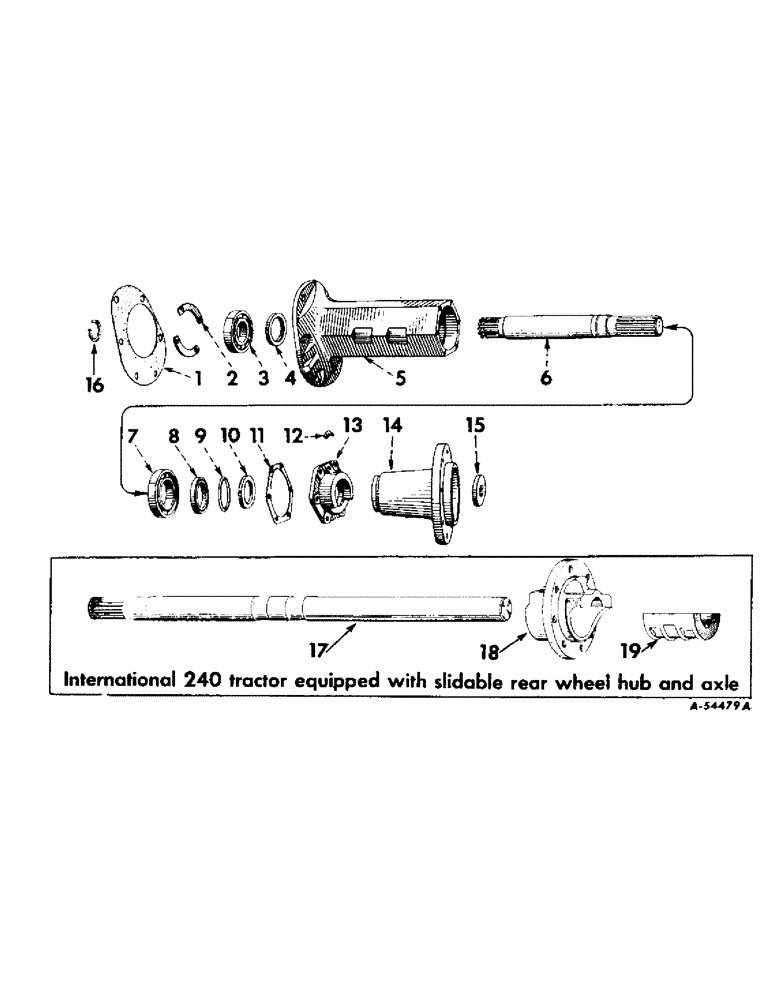

Схема запчастей Case IH 230 - (197) - CHASSIS, REAR AXLE, INTERNATIONAL 240 TRACTORS (12) - CHASSIS
13
6
4
10
17
1
18
11
2
5
7
19
16
8
3
14
12
9
15

Артикул

Название

Примечание

Количество

1

351113R1

GASKET

rear axle carrier

2шт.

2

351114R2

RETAINER, rear axle inner bearing

4шт.

192278

BOLT, self-locking, hex-hd., 3/8-16NC x 3/4"

8шт.

3

ST295

BEARING, BALL,50mm ID x 110mm OD x 27mm W

rear axle, inner

2шт.

4

46983D

OIL SEAL

OIL SEAL, rear axle carrier, inner

2шт.

5

351111R31

CARRIER

rear axle, L.H. w/oil seal, 46983D

1шт.

425-1110

NUT,5/8"-18, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

5

351112R31

CARRIER

rear axle, R.H. w/oil seal, 46983D

1шт.

425-1110

NUT,5/8"-18, G5

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

6

369392R1

AXLE, REAR

2шт.

7

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, ball, rear axle, outer

2шт.

8

60254D

SEAL

OIL SEAL, rear axle, outer

2шт.

9

369389R1

RING

rear axle, hub retainer

2шт.

10

351118R1

SEALING WASHER

WASHER, felt, rear axle

2шт.

11

351117R1

GASKET

rear axle carrier cap

2шт.

12

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 deg. angle (optional with 109462)

2шт.

12

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, lubrication, 90 deg. angle (optional with 271285)

2шт.

13

351116R11

CAP, rear axle carrier, w/washer, 351118R1 and oil seal, 60254D

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

14

369388R1

HUB

rear axle

2шт.

15

369390R1

WASHER

retainer rear wheel hub

2шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

16

358236R1

RING

snap rear axle

2шт.

17

370312R1

AXLE, rear

2шт.

18

374841R1

HUB, rear wheel

2шт.

A complete slidable rear wheel hub and axle field attachment may be ordered by ordering reference nos. 16 through 18 incl. and attaching hardware from parts stock.

1шт.

19

351246R1

COLLAR CLAMP

CLAMP, rear wheel hub

2шт.

374842R1

SCREW, rear wheel hub clamp

8шт.

366112R1

WASHER

rear wheel hub clamp screw

8шт.

Выбрано товаров: 32
