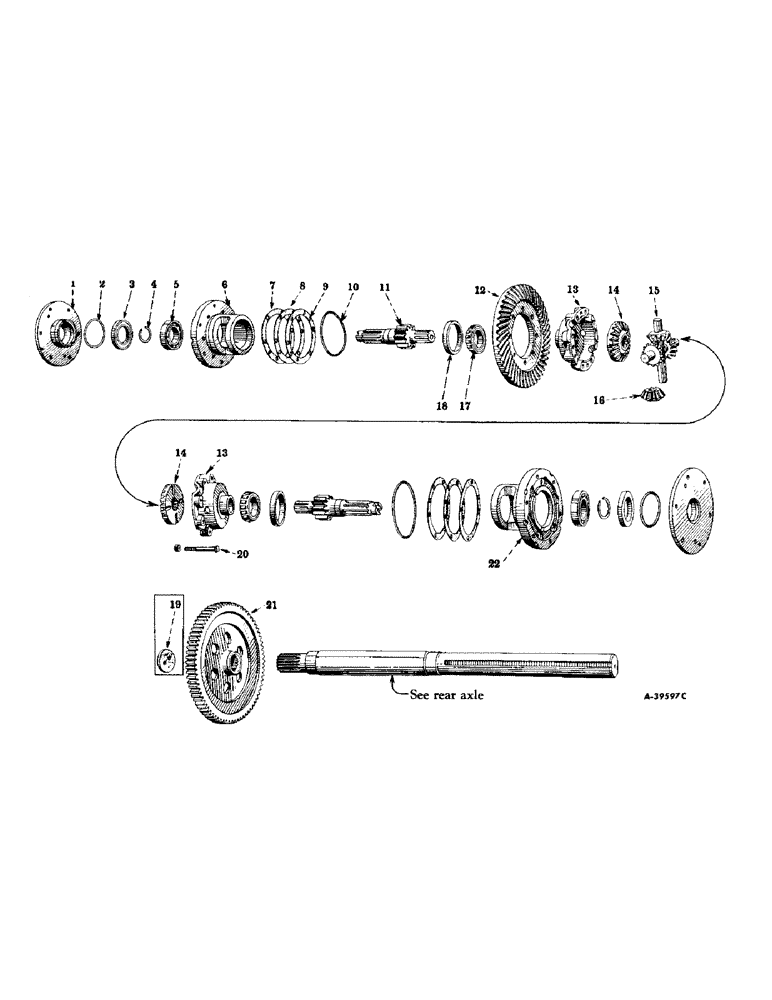

Запчасти Case IH 230 (193) - CHASSIS, REAR AXLE AND DIFFERENTIAL (12) - CHASSIS

1

355985R11

RETAINER, bull pinion shaft bearing, assembly (composed of (1) oil seal 75260H, (1) pin 443767, (1) ring 285723R1)

2шт.

443767

AXLE PIN

PIN, dowel, 1/4 x 1/2"

2шт.

2

285723R1

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

RING, pinion, bull shaft bearing retainer (will work for 350793R1)

2шт.

3

75260H

SEAL ASSY.

OIL SEAL, bull pinion shaft bearing retainer

2шт.

4

355984R1

RING

snap, bull pinion shaft

2шт.

5

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

(bull pinion and brake shaft)

2шт.

6

373122R11

CAGE, bull pinion shaft bearing, L.H., w/cup, ST874 A (Farmall and International 240 Tractors)

1шт.

6

355981R11

CAGE, bull pinion shaft bearing, L.H., w/ring, 59385D and cup, ST874 A or 29008H (Farmall 200 and 230 Tractors)

1шт.

355982R1

SCREW, cap, bull pinion shaft bearing cage

6шт.

7

351102R1

SHIM

bull pinion shaft bearing cage, light

2шт.

7

351105R1

SHIM, bull pinion shaft bearing cage, extra light

1шт.

8

351103R1

SHIM, bull pinion shaft bearing cage, medium

2шт.

9

351104R1

SHIM, bull pinion shaft bearing cage, heavy

2шт.

10

59385D

RING

seal, bull pinion shaft bearing cage

2шт.

11

369387R1

PINION, bull (12 teeth), and brake shaft (will work for 355983R2 and 357429R1)

2шт.

12

351096R1

GEAR, differential drive (47 teeth) Farmall 200 and 230 tractors

1шт.

12

369386R1

GEAR, differential drive (46 teeth) Farmall and International 240 tractors

1шт.

13

351445R91

CASE, differential (2 halves) L.H. and R.H.

1шт.

14

351631R2

PINION

GEAR, differential bevel (24 teeth)

2шт.

15

356589R1

SPIDER, differential

1шт.

16

351630R2

GEAR

PINION, differential (13 teeth)

4шт.

17

ST775A

ROLLER BEARING,2.0005" ID x 3.5010" OD x 0.8265"

CONE, tapered roller bearing differential case bearing

2шт.

18

ST874A

TAPERED BEARING,90.03mm OD x 16mm W

CUP, differential case bearing

2шт.

19

351110R1

RETAINER, bull gear (Farmall 200 and 230 tractors)

2шт.

221595

SCREW

cap, self-locking, hex-hd., 3/8-24NF x 7/8"

4шт.

20

351095R1

BOLT

differential case

8шт.

353790R1

NUT

hex., lock, 7/16NF

8шт.

21

366334R1

GEAR, bull (one piece gear) (will work for gear with riveted hub, 351109R31) (Farmall 200 and 230 tractors)

2шт.

21

369391R1

GEAR, bull (one piece gear) (Farmall and International 240 tractors)

2шт.

22

355981R11

CAGE, bull pinion shaft bearing, R.H., w/ring, 59385D and cup, ST874 A (Farmall 200 and 230 tractors)

1шт.

22

373123R11

CAGE, bull pinion shaft bearing, R.H., w/cup, ST874 A (Farmall and International 240 tractors)

1шт.

355982R1

SCREW, cap, bull pinion shaft bearing cage

6шт.
