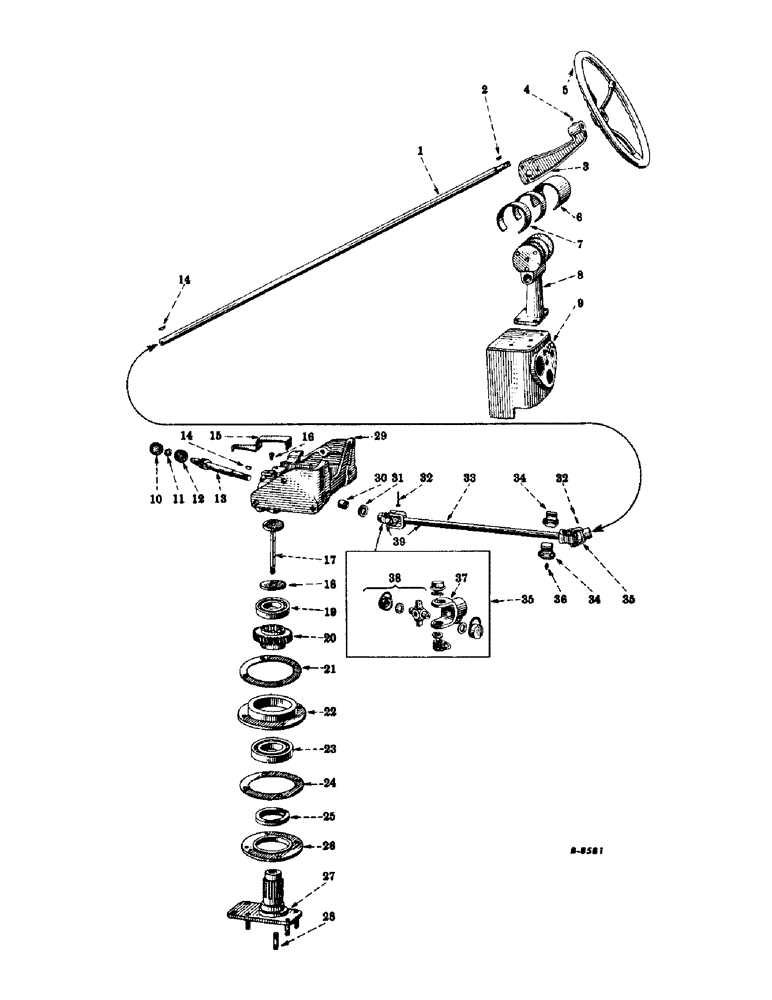

Запчасти Case IH 230 (176) - CHASSIS, STEERING MECHANISM, FARMALL 200 AND 230 TRACTORS (12) - CHASSIS

1

351127R2

SHAFT, steering

1шт.

219753

BACK-UP RING

hex., jam, 3/4-16NF

1шт.

2

112139

WOODRUFF KEY,#A, 1/4" x 7/8"

KEY, Woodruff (type A)

1шт.

3

360363R11

SUPPORT, steering shaft, rear, w/fitting, 66584D

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

66584D

FITTING

lubrication, steering shaft, rear support

1шт.

5

29118DC

WHEEL

steering, 18" (optional with 60070D)

1шт.

5

60070D

STEERING WHEEL

WHEEL, steering, 18" (optional with 29118DC)

1шт.

6

354364R1

COVER, steering shaft support bracket (for tractors not equipped with touch-control)

1шт.

7

351403R1

COVER, hydraulic lift control and steering shaft bracket support (tractors equipped with touch-control)

1шт.

8

354741R1

BRACKET, steering shaft support

1шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 7/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

9

355479R92

SUPPORT, steering shaft and instrument panel, w/nut and plug

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

10

6660DA

BEARING CAP

steering worm bearing

1шт.

11

69442D

NUT

steering worm

1шт.

12

ST225BT

BALL BEARING

BEARING, ball, steering worm shaft

1шт.

13

351123R2

CAPSCREW

WORM, steering

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

14

103462

KEY

Woodruff, no. 13

2шт.

15

351121R21

BRACKET, starting crank

1шт.

179814

SPACER

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

16

356568R1

PLUG, steering gear housing vent

1шт.

17

52953DX

SHAFT

WASHER, steering worm wheel shaft upper bearing, and stud

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

1шт.

10332

WASHER

lock, 1/2"

1шт.

18

352417R1

WASHER

SEAL, steering worm wheel shaft

1шт.

19

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

BEARING, upper, steering worm wheel shaft

1шт.

20

351122R1

GEAR

WHEEL, worm, steering (38 teeth)

1шт.

21

52951D

GASKET

steering worm wheel shaft lower bearing cage

1шт.

22

8324D

CAGE

steering worm wheel shaft lower bearing

1шт.

23

ST269A

BALL BEARING,60mm ID x 110mm OD x 22mm W

BEARING, lower, steering worm wheel shaft

1шт.

24

52952D

GASKET

steering worm wheel shaft lower bearing cage cover

1шт.

25

360457R91

SEAL

OIL SEAL, steering worm wheel shaft

1шт.

26

350009R12

COVER, steering worm wheel shaft lower bearing cage, w/oil seal, 360457R91

1шт.

179862

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

27

53001DX

SHAFT, steering worm wheel, w/four studs, 53002D

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

28

53002D

STUD

steering worm wheel shaft

4шт.

29

351120R71

HOUSING, steering assembly (composed of (1) bushing 41096DB, (1) housing 351120R7 (NSS), (1) oil seal 364468R91, (1) plug 356568R1, (1) plug 103866, (1) plug 103867)

1шт.

425-1110

NUT,5/8"-18, G5

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., C.I., 1/4" (optional with 103878)

1шт.

103878

PLUG

pipe, sq-hd., stl., 1/4" (optional with 103866)

1шт.

103867

PLUG

pipe, sq-hd., C.I., 3/8" (optional with 103879)

1шт.

103879

PLUG, pipe, sq-hd., stl., 3/8" (optional with 103867)

1шт.

359258R1

SCREW, cap, hex-hd., 5/8-11NC x 3"

2шт.

359259R1

BOLT,Hex, 5/8" - 11 x 2"

SCREW, cap, hex-hd., 5/8-11NC x 2"

1шт.

359260R1

SCREW, cap, hex-hd., 5/8-18NF x 2-3/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

30

41096DBR

BUSHING,25.43mm ID x 32.64mm OD x 31.75mm L

sterring worm

1шт.

31

364468R91

SEAL

OIL SEAL, steering worm shaft (will work for 43800DA)

1шт.

32

112055

PIN,3/16" x 1 1/2"

steering shaft universal joint (3/16 x 1-1/2")

2шт.

33

351316R93

SHAFT AND YOKE, universal joint

1шт.

34

351126R12

BEARING CARRIER

steering shaft center, assembly (composed of (1) bearing 351126R1 (NSS), (1) cap 351125R2 (NSS), (1) lubricator 66584D, (2) screw 179845, (2) washer 103321)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

351930R92

YOKE

JOINT, steering universal (order 351124R94)

2шт.

36

66584D

FITTING

lubrication

1шт.

37

350256R1

YOKE

steering universal joint

2шт.

38

363321R91

BEARING

AND SPIDER, steering universal joint (optional with 363313R91)

2шт.

38

363313R91

BEARING

ANS SPIDER, steering universal joint (optional with 363321R91)

2шт.

39

351124R94

SHAFT

steering, 351316R93, w/two bearing and spider and two yoke 350256R1

1шт.

365798R1

FLUID

ADDITIVE, torque amplifier and transmission lubricant (gallon can)

1шт.
