Запчасти Case IH 230 (172) - CHASSIS, GEAR SHIFTER MECHANISM AND TRANSMISSION, FARMALL AND INTERNATIONAL 240 TRACTORS (12) - CHASSIS

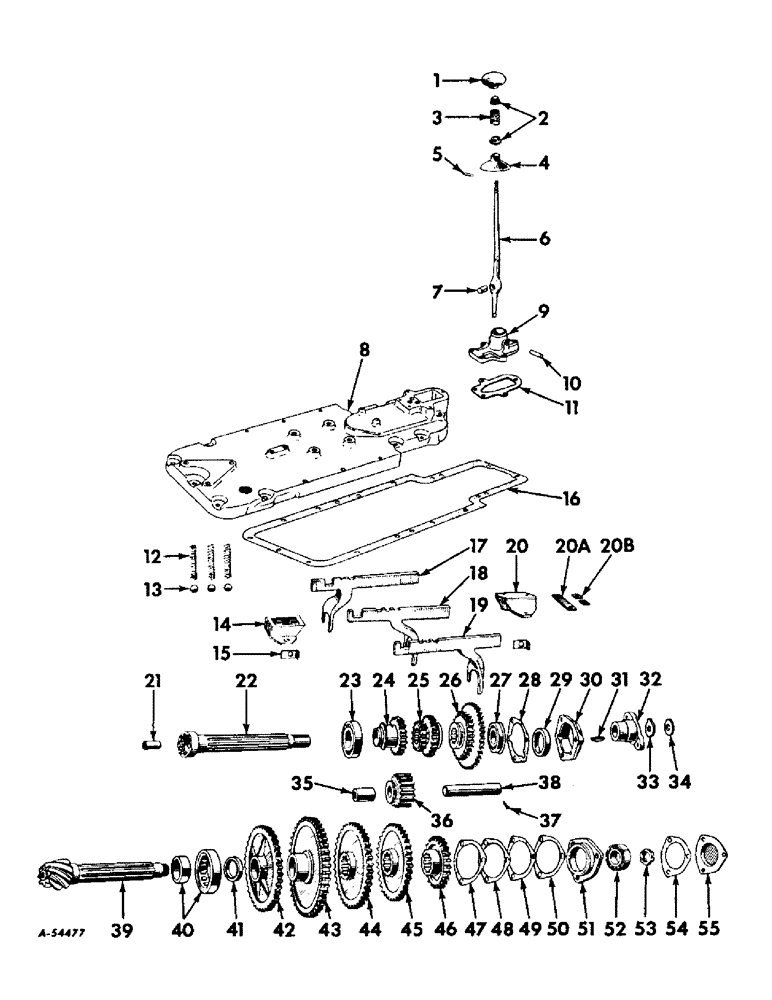

Схема запчастей Case IH 230 - (172) - CHASSIS, GEAR SHIFTER MECHANISM AND TRANSMISSION, FARMALL AND INTERNATIONAL 240 TRACTORS (12) - CHASSIS
9
54
8
42
22
15
39
20
52
48
25
1
27
17
23
38
28
34
33
20a
20b
32
30
18
13
3
53
19
51
41
6
24
40
21
11
43
29
5
44
45
2
4
35
26
16
31
12
7
47
46
50
10
14
36
49
55
34

Артикул

Название

Примечание

Количество

1

53717DA

BUTTON

KNOB, gear shift lever

1шт.

2

43579D

RETAINER

gear shift swivel spring

2шт.

3

43578D

SPRING

gear shift swivel

1шт.

4

49489D

SHIELD

gear shift swivel

1шт.

5

43580D

PIN

gear shift spring retainer

1шт.

6

369042R11

LEVER

gear shift

1шт.

7

49488D

PIN

SHAFT, gear shift lever swivel, large

1шт.

8

369018R1

COVER, rear frame

1шт.

144000

PLUG

pipe, csk-hd., 1" (optional with 103876)

1шт.

103876

PLUG, pipe, csk-hd., 1" (optional with 144000)

1шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8"

9шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

6шт.

179846

LEVER

hex-hd., 3/8-16NC x 2-1/2" (Tractors equipped with remote control attachment)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

17шт.

9

369040R1

HOUSING, gear shifter swivel

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

10

49492D

AXLE PIN

SHAFT, gear shift lever swivel, small

1шт.

11

369041R1

SEAL

gear shifter swivel housing

1шт.

12

41058DA

SPRING

gear shift poppet ball

3шт.

13

D2616

BALL

gear shift poppet (optional with 13722D)

3шт.

13

13722D

BALL

gear shift poppet (optional with D2616)

3шт.

14

369036R11

GUIDE, gear shift rail, rear

1шт.

NLS

NO LONGER SERVICED

2шт.

15

48567D

SUPPORT

LOCK, gear shift rail guide capscrew

2шт.

16

351133R1

GASKET

rear frame cover

1шт.

17

369028R11

FORK AND RAIL, reverse speed gear shifter

1шт.

18

369030R11

FORK AND RAIL, first and second speed gear shifter

1шт.

19

369032R11

FORK AND RAIL, third and fourth speed gear shifter

1шт.

20

369034R11

GUIDE, gear shift rail, front

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

20a

59473D

LOCK

shifter rail stop bolt

2шт.

20b

369038R1

STOP, shifter rail

1шт.

21

351144R1

BUSHING

transmission spline shaft

1шт.

22

351143R11

SHAFT

transmission spline (10 teeth), w/bushing, 351144R1

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

23

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

transmission spline shaft, rear

1шт.

24

369023R11

GEAR

reverse spline (22 teeth), w/oil retainer and rivet, 105088

1шт.

24

351063R11

GEAR

reverse spline (20 teeth), w/rivet, 105088

1шт.

Used with high speed and low reverse attachment.

1шт.

105088

RIVET,But Hd, 3/16" x 2 1/4"

rd-hd., 3/16 x 2-1/4"

1шт.

25

369024R1

GEAR

sliding, first and second speed (14 and 22 teeth)

1шт.

25

364443R1

GEAR, sliding, first and second speed (16 and 22 teeth)

1шт.

Used with high speed and low reverse attachment.

1шт.

26

359979R1

GEAR, sliding, third and fourth speed (31 and 37 teeth) (tractors with high speed third gear)

1шт.

26

369025R1

GEAR

sliding, third and fourth speed (26 and 53 teeth)

1шт.

27

ST246

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, ball, transmission spline shaft, front

1шт.

28

46503D

GASKET,0.79mm Thk

transmission spline shaft bearing retainer

1шт.

29

42177D

OIL SEAL

OIL SEAL, transmission spline shaft

1шт.

30

369026R11

HUB

RETAINER, transmission spline shaft bearing, w/oil seal, 42177D

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

31

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

KEY, Woodruff, alloy-stl., no. 126

1шт.

32

43548D

CLAMP

FLANGE, transmission drive

1шт.

33

359992R1

GASKET

transmission drive flange

1шт.

34

43262DA

WASHER

transmission drive flange

1шт.

35

51177DR

BEARING

BUSHING, reverse idler gear

1шт.

36

369027R11

GEAR

reverse idler (14 teeth), w/bushing)

1шт.

36

351058R12

GEAR, reverse idler (16 teeth), w/bushing) (optional with 364490R12)

1шт.

Used with high speed and low reverse attachment.

1шт.

36

364490R12

GEAR, reverse idler (16 teeth), w/bushing) (optional with 351058R12)

1шт.

Used with high speed and low reverse attachment.

1шт.

37

61082D

SCREW, reverse idler shaft lock

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

38

351816R1

SHAFT

reverse idler

1шт.

39

351134R1

COUNTERSHAFT AND BEVEL, pinion (8 teeth)

1шт.

Used with high speed and low reverse attachment.

1шт.

39

369019R1

COUNTERSHAFT AND BEVEL, pinion (7 teeth)

1шт.

40

43284D

BEARING ASSY,39.99mm ID x 80mm OD x 18mm W

roller, countershaft

1шт.

41

351135R2

SPACER

first speed gear

1шт.

42

354643R11

PINION

GEAR, transmission oiler, w/bushing

1шт.

Used with high speed and low reverse attachment.

1шт.

42

369020R11

GEAR

transmission oiler, w/bushing

1шт.

43

364442R1

GEAR, first speed (45 teeth)

1шт.

Used with high speed and low reverse attachment.

1шт.

43

369021R1

GEAR

first speed (47 teeth)

1шт.

44

351060R1

GEAR

second speed (39 teeth)

1шт.

45

351061R1

PINION

GEAR, third speed (35 teeth)

1шт.

45

359978R1

GEAR, third speed (30 teeth) (tractors with high speed third gear)

1шт.

46

369022R1

GEAR

fourth speed (27 teeth)

1шт.

46

351062R1

PINION

GEAR, fourth speed (24 teeth) (tractors with high speed third gear)

1шт.

47

351137R1

CAGE

SHIM, countershaft bearing cage, light

2шт.

48

351138R1

SHIM

countershaft bearing cage, medium

1шт.

49

351139R1

SHIM, countershaft bearing cage, heavy

1шт.

50

351140R1

SHIM

countershaft bearing cage, extra heavy

1шт.

51

351136R2

CAGE, countershaft bearing

1шт.

372021R1

RING, seal, countershaft bearing cage

1шт.

52

372769R91

BALL BEARING,30 mm ID x 62 mm OD x 0.9375"

ball, countershaft

1шт.

53

4221D

NUT

countershaft and bevel pinion shaft

1шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

54

351142R1

GASKET

countershaft bearing cage retainer

1шт.

55

351141R1

CAP

RETAINER, countershaft bearing cage

1шт.

103026

NUT,3/8"-24, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

365798R1

FLUID

ADDITIVE, torque amplifier and transmission lubricant (for all weather use) (gallon can)

1шт.

372703R1

FLUID, "Hy-Tran" (quart can)

1шт.

372704R1

TRANSMISSION OIL

FLUID, "Hy-Tran" (gallon can)

1шт.

372705R1

FLUID

"Hy-Tran" (five gallon can)

1шт.

Выбрано товаров: 99
