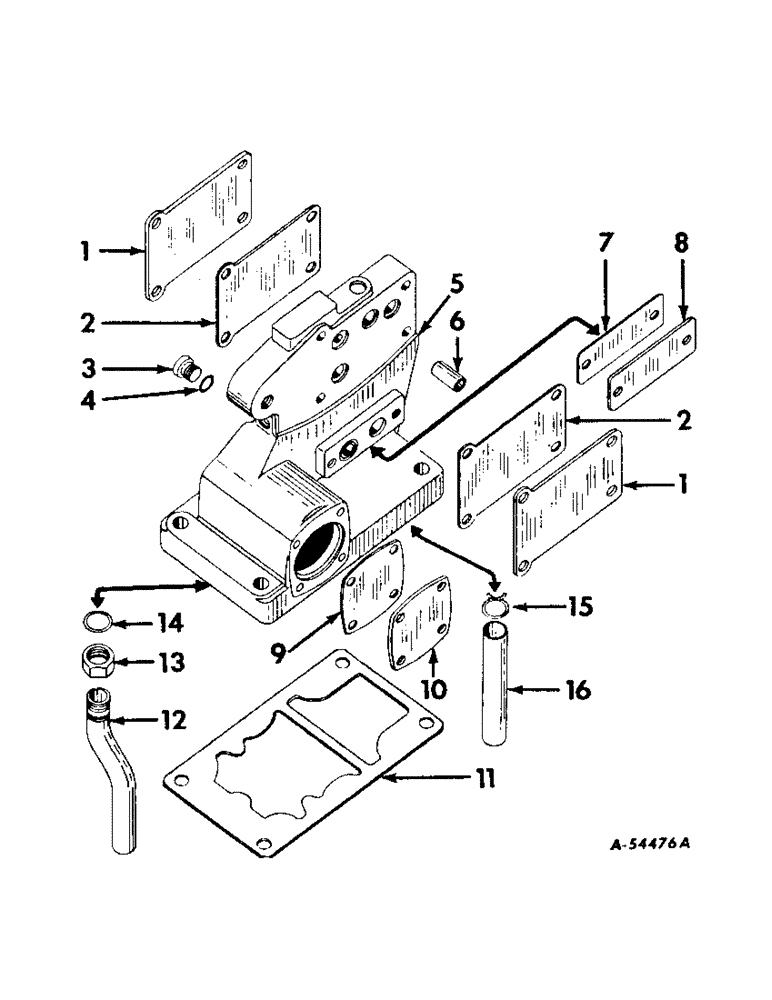

Запчасти Case IH 230 (167) - CHASSIS, HYDRA-TOUCH VALVE SUPPORT AND COVERS, FARMALL AND INTERNATIONAL 240 TRACTORS (12) - CHASSIS

1

363089R1

PLATE, hydra-touch valve support

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

4шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

4шт.

2

369910R1

GASKET, hydra-touch valve support plate

2шт.

3

364845R1

PLUG, valve support

1шт.

4

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, valve support plug

1шт.

5

373063R93

SUPPORT, hydra-touch valve, assembly, w/bushing

1шт.

For service replacement on farmall 240 - 501 to 2456 and International 240 - 501 to 6688 also order clamp, 112700R1 and hose, 373907R1.

1шт.

143162

PLUG

pipe, sq.-socket, 3/8"

1шт.

179890

LATCH

SCREW, cap, hex-hd., 1/2-13NC x 2-1/4"

2шт.

179892

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2-3/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

6

373064R1

BUSHING, hydra-touch valve support (for tractors equipped w/power steering)

1шт.

7

371354R1

GASKET, manifold valve support plate

1шт.

8

371353R1

PLATE, manifold valve support

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

cap, hex-hd., 3/8-16NC x 11/16"

2шт.

9

371356R1

GASKET, strainer valve support plate

1шт.

10

371355R1

PLATE, strainer valve support

1шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

4шт.

11

369745R1

GASKET, valve support

1шт.

12

366582R1

TUBE, oil strainer suction

1шт.

13

9410061

LOCK,Blkhd, 7/8"-14

NUT, oil strainer suction tube

1шт.

14

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

oil strainer suction tube

1шт.

15

112700R1

HOSE CLAMP,#15, 15/16", Spring

CLAMP, valve support return hose

1шт.

NSS

NOT SOLD SEPARAT

Farmall 240 - 2457 up

1шт.

NSS

NOT SOLD SEPARAT

International 240 - 6689 up

1шт.

16

373907R1

HOSE, valve support return

1шт.

NSS

NOT SOLD SEPARAT

Farmall 240 - 2457 up

1шт.

NSS

NOT SOLD SEPARAT

International 240 - 6689 up

1шт.
