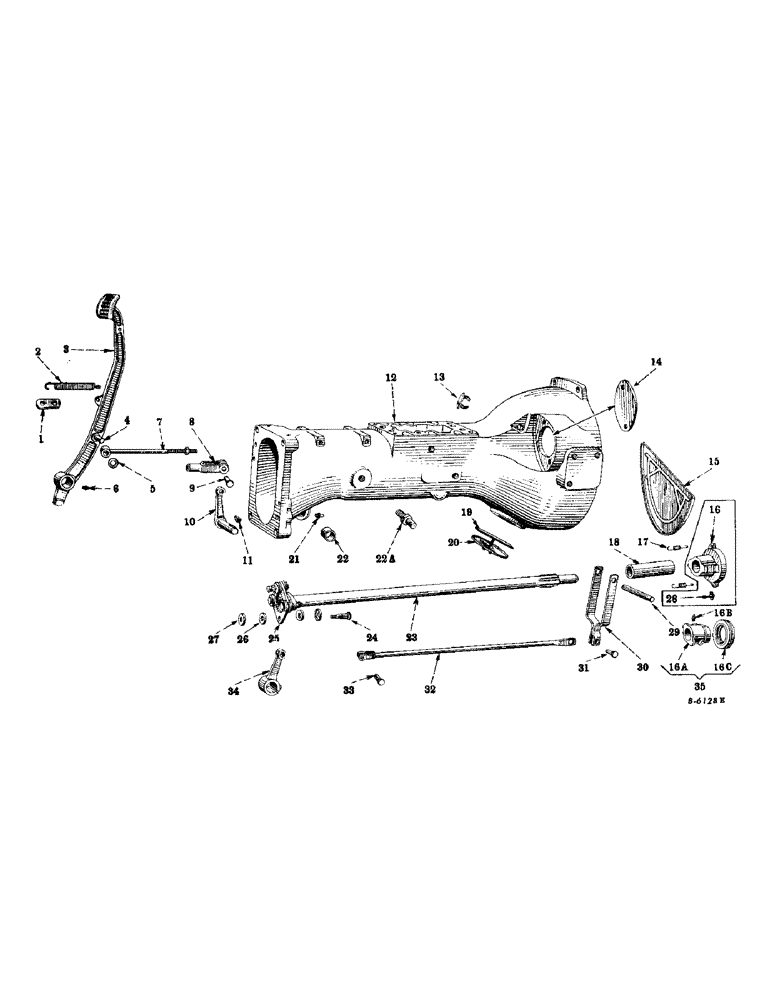

Запчасти Case IH 230 (161) - CHASSIS, CLUTCH HOUSING, CONTROLS AND CONNECTIONS, FARMALL 200 & 230 TRACTORS (12) - CHASSIS

1

355812R1

ANCHOR, clutch pedal return spring

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

351210R1

SPRING

clutch pedal

1шт.

3

355807R21

PEDAL, clutch, w/pin, 355804R1 (will work for 355734R91)

1шт.

4

355804R1

PIN, clutch pedal rod

1шт.

5

355803R1

WASHER, clutch pedal rod

1шт.

6

66584D

FITTING

lubrication

1шт.

7

355802R11

ROD, clutch pedal

1шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

8

117825

CLEVIS, adjustable rod end, 7/16-20NF

1шт.

9

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN, rod end, 7/16 x 1-5/64"

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

10

355798R11

SHAFT, clutch release

1шт.

11

124555

O-RING

Woodruff, ni-stl., no. 16

1шт.

12

369163R11

HOUSING, clutch, assembly (will work for 351687R81) (Farmall 200 tractors 501 to 2288 must also order package, 364790R91) (composed of (2) bushing 355805R1, (1) fitting Q3852, (1) guide (1) 43546D, (1) housing 369163R1 (NSS), (1) o-ring 368269R1

1шт.

116566

PLUG

pipe, sq-socket, stl., 1/2"

1шт.

143999

PLUG

pipe, sq-socket, stl., 3/4"

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

179887

CABLE

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4"

4шт.

361858R1

CAPSCREW,5/8" - 11 x 2 1/2"

SCREW, cap, hex-hd., 5/8-11NC x 2-1/2"

4шт.

367696R1

STUD, cylinder mounting bracket

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

13

57579DX

COVER

dust, clutch housing, w/spring

1шт.

111871

RIVET,Oval Hd, 1/8" x 5/32"

(Will work for 350510R1) Oval Hd, 1/8" x 5/32"

2шт.

14

48554D

COVER, starter pad

1шт.

179877

CAPSCREW,Hex, 1/2" - 13 x 5/8"

SCREW, cap, hex-hd., 1/2-13NC x 5/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

354909R1

COVER

clutch housing

1шт.

179812

GEAR

SCREW, cap, hex-hd., 5/16-18Nc x 1/2"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

NSS

NOT SOLD SEPARAT

BEARING AND RETAINER, clutch release (graphitar type release bearing) (order 364790R91 - Ref. no. 35) (for tractors not equipped with hydra-creeper (Farmall 200 -, Serial Range: 501-2288)

1шт.

16a

6116D

SLEEVE

clucth release

1шт.

Also for Farmall 200 tractors 501 to 2288 equipped with ball bearing type clutch release bearing.

1шт.

NSS

NOT SOLD SEPARAT

Farmall 200 - 2289 up

1шт.

NSS

NOT SOLD SEPARAT

Farmall 230 - 501 up

1шт.

16b

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Clutch release sleeve) (optional with 138322H) 1/8"-27 x .66 lg

1шт.

Also for Farmall 200 tractors 501 to 2288 equipped with ball bearing type clutch release bearing.

1шт.

NSS

NOT SOLD SEPARAT

Farmall 200 - 2289 up

1шт.

NSS

NOT SOLD SEPARAT

Farmall 230 - 501 up

1шт.

16b

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , Clutch release sleeve (optional with 109461) 1/8"-27 x .66 lg

1шт.

Also for Farmall 200 tractors 501 to 2288 equipped with ball bearing type clutch release bearing.

1шт.

NSS

NOT SOLD SEPARAT

Farmall 200 - 2289 up

1шт.

NSS

NOT SOLD SEPARAT

Farmall 230 - 501 up

1шт.

16c

18567D

THRUST BEARING,52.39mm ID x 83.95mm OD x 20.45mm W

BEARING, clutch release

1шт.

Also for Farmall 200 tractors 501 to 2288 equipped with ball bearing type clutch release bearing.

1шт.

Clutch release bearings are optional.

1шт.

NSS

NOT SOLD SEPARAT

Farmall 200 - 2289 up

1шт.

NSS

NOT SOLD SEPARAT

Farmall 230 - 501 up

1шт.

16c

55212D

BEARING

clutch release

1шт.

Also for Farmall 200 tractors 501 to 2288 equipped with ball bearing type clutch release bearing.

1шт.

Clutch release bearings are optional.

1шт.

NSS

NOT SOLD SEPARAT

Farmall 200 - 2289 up

1шт.

NSS

NOT SOLD SEPARAT

Farmall 230 - 501 up

1шт.

16c

361292R91

BALL BEARING,52.39mm ID x 84.15mm OD x 19.05mm W

clutch release

1шт.

Also for Farmall 200 tractors 501 to 2288 equipped with ball bearing type clutch release bearing.

1шт.

Clutch release bearings are optional.

1шт.

NSS

NOT SOLD SEPARAT

Farmall 200 - 2289 up

1шт.

NSS

NOT SOLD SEPARAT

Farmall 230 - 501 up

1шт.

17

355795R2

VALVE SPRING

SPRING, return, clutch release bearing (for tractors not equipped with hydra-creeper)

2шт.

18

43546D

GUIDE

sleeve, clutch release

1шт.

19

57578DX

STRAP

BAR, clutch housing hand hole cover, w/welding bolt

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

20

351486R1

COVER ASSY

COVER, clutch housing hand hole

1шт.

21

Q3852

FITTING

lubrication (optional with 443567)

1шт.

21

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, lubrication (optional with Q3852)

1шт.

22

355805R1

BUSHING,22.61mm ID x 25.45mm OD x 21.97mm L

clutch release shaft

2шт.

22a

517832R1

STUD, stationary hitch point (for Farmall 200 tractors equipped with fast hitch)

1шт.

517843R1

COTTER PIN

PIN, cotter, quick-attachable

1шт.

23471S

WASHER

plain, 25/32" I.D. x 1-1/2" O.D. x no. 7 ga.

1шт.

23

351852R2

SHAFT

clutch

1шт.

24

43552DBX

SCREW

clutch drive shaft joint, w/nut, 103026 and washer, 103321)

4шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

43549D

PLATE ASSY.

DISC, clutch drive shaft joint

1шт.

26

43550D

RUBBER WASHER

rubber, clutch drive shaft joint

8шт.

27

356588R1

RETAINER

clutch drive shaft joint rubber washer (will work for 43551D)

8шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (Optional with 271287) (Used with Ref.16) 1/4"-28 NPT x .54" lg

2шт.

28

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (Optional with 109454) (Used with Ref.16) 1/4"-28 NPT x .54" lg

2шт.

29

46278DAR

AXLE PIN

PIN, pivot, clutch release yoke

1шт.

103395

PIN,5/32" x 3/4"

Split (Cotter), 5/32" x 3/4"

2шт.

30

47716D

CLEVIS COUPLING

YOKE, clutch release

1шт.

31

357369R1

AXLE PIN

PIN, rod end (3/8")

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

32

355806R11

ROD, operating clutch

1шт.

33

82663H

PIN

rod end (7/16")

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

34

355800R1

LEVER, clutch release

1шт.

103026

NUT,3/8"-24, G5

1шт.

181377

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1/3/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

35

364790R91

STRIPPER PACKAGE

BEARING, clutch release, 55212D, w/fitting, 109461 and sleeve, 6116D) (will work for 350830R31) Farmall 200 -, Serial Range: 501-2288

1шт.
