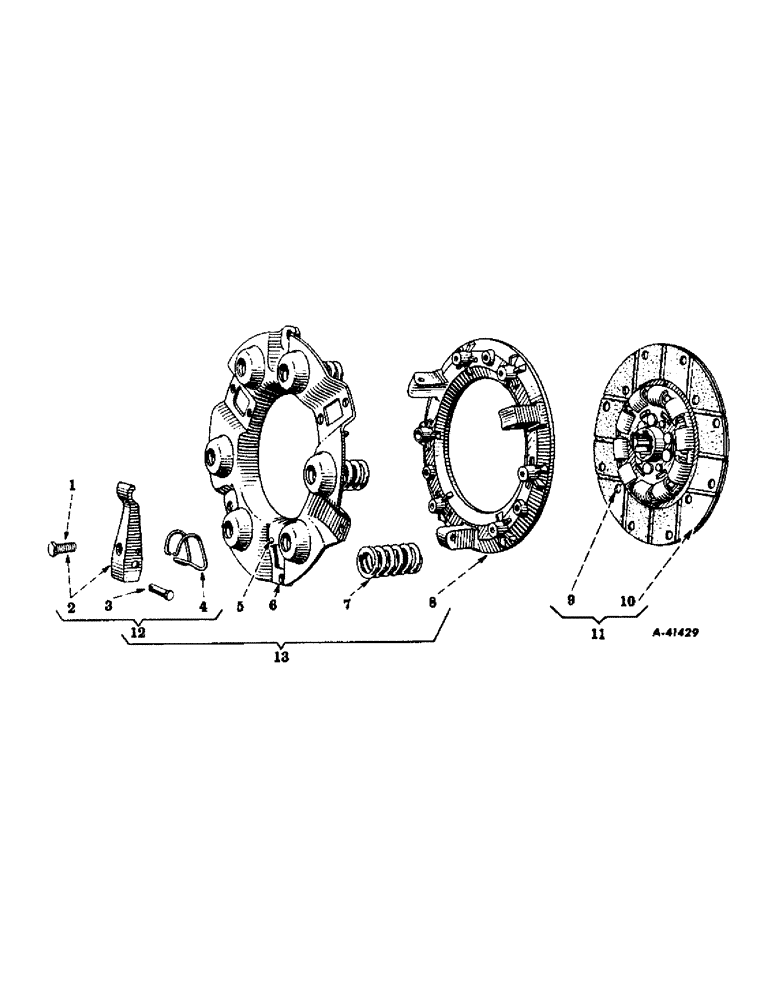

Запчасти Case IH 230 (160) - CHASSIS, CLUTCH, ROCKFORD, 9 INCHES, FARMALL 200 TRACTORS 2289 UP, 240 & INTL 240 TRACTORS 501 UP (12) - CHASSIS

56620DD

CLUTCH

CLUTCH, assembly

1шт.

1251692C91

REMAN-CLUTCH PLATE

Remanufactured 9 IN. RM No Hub, 6 Springs

1шт.

1944233C1

CORE-CLUTCH PLATE

Return Part Number, 9IN. RM. No Hub, 6 Springs

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

352745R1

BOLT,3/8" - 24 x 3/4", Class 2

SCREW, adjusting, clutch release lever

3шт.

114494

NUT,Jam, 3/8"-24, G5

NUT, Jam, 3/8"-24, G5

3шт.

2

353243R91

LEVER

LEVER, clutch release, w/nut, 114494 and screw, 352745R1

3шт.

It is recommended that these parts be replaced in complete sets.

1шт.

3

51460D

STUD

PIN, clutch lever

3шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), 3/32" x 1/2"

3шт.

4

51461D

SPRING

SPRING, clutch lever

3шт.

5

7911T

SEAT/SLOT

SEAT, clutch lever adjusting screw, w/ball

3шт.

6

352744R91

PLATE ASSY.

PLATE, back, clutch, w/three seats, 7911T

1шт.

7

353244R1

SPRING

SPRING, clutch pressure

6шт.

It is recommended that these parts be replaced in complete sets.

1шт.

7

361169R91

PACKAGE

PACKAGE, clutch pressure spring (same as 353245R91) (consists of six springs, 353244R1)

1шт.

8

351448R2

PLATE

PLATE, pressure

1шт.

9

53795V

RIVET,Csk Hd, 3/16" x 5/16"

RIVET, clutch facing

20шт.

10

30718DXA

FACING

FACING SET, clutch (consists of two facings with twenty-two rivets, 53795V)

1шт.

11

56631DB

DISC

DISC, clutch driven, w/facing set, 30718DXA

1шт.

11

56631DBR

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 9 in., 6Tooth hub, full face friction matl

1шт.

11

56631DBC

CORE-CLUTCH DISC

Return Part Number

1шт.

12

353246R91

PACKAGE

PACKAGE, clutch-release lever, assembly (consists of (3) lever 353243R91, (3) pin 103372, (3) pin 51460D, (3) spring 51461D)

1шт.

13

353242R92

COVER

PLATE, pressure, assembly (composed of (1) package 353246R91, (1) plate 351448R2, (1) package 361169R91, (1) plate 352744R91)

1шт.

13

1251692C91

REMAN-CLUTCH PLATE

200 Farmall SN 2289 & Up, 240 Farmall, 240 International, Both SN 501 & Up, Reman For New P/N 353242R92

1шт.

13

1944233C1

CORE-CLUTCH PLATE

Return Part Number

1шт.
