Запчасти Case IH 230 (155[A]) - CHASSIS, AIR CLEANER, UNITED SPECIALTIES (12) - CHASSIS

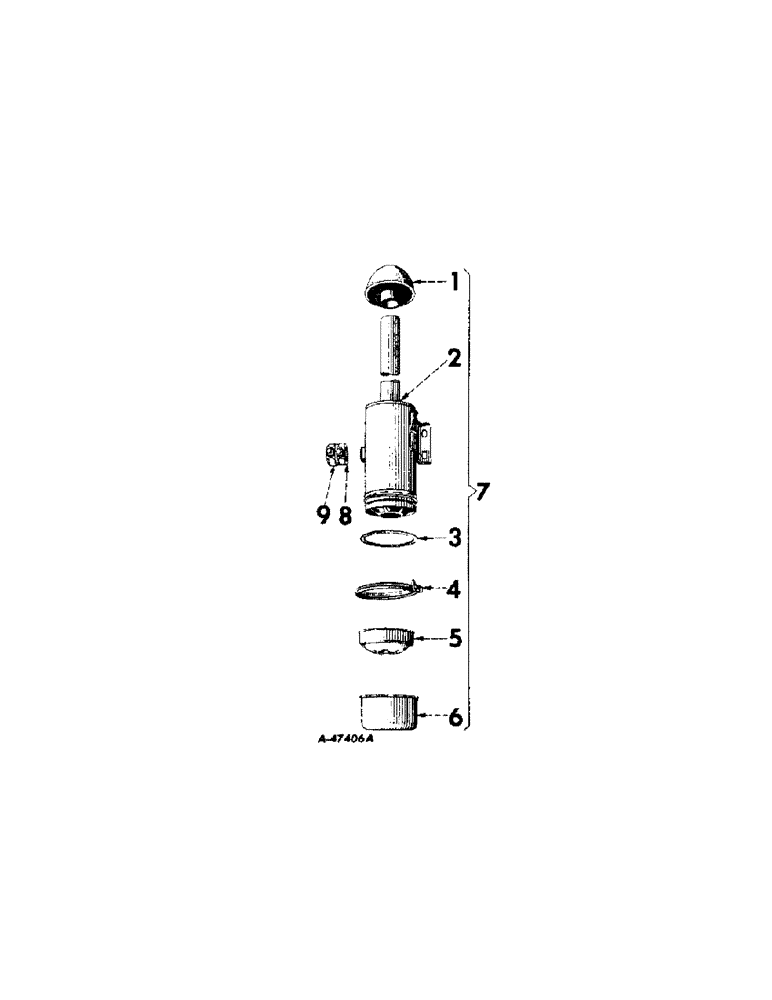

Схема запчастей Case IH 230 - (155[A]) - CHASSIS, AIR CLEANER, UNITED SPECIALTIES (12) - CHASSIS
1
7
5
8
3
2
6
9
4

Артикул

Название

Примечание

Количество

1

361723R91

CAP

air cleaner intake (will work for 351190R92)

1шт.

2

358144R91

BODY

1шт.

Service parts for air cleaners (gasoline) (Farmall 200 series)

1шт.

Service parts for air cleaners (distillate or kerosene) (Farmall 200 and 230 tractors)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY, (not serviced separately - order 367666R91)

1шт.

Service parts ofr air cleaners (gasoline) (Farmall 230, 240 and International 240 tractors)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY, (not serviced separately - order 373321R91)

1шт.

Service parts for air cleaners (distillate) (Farmall and International 240 tractors)

1шт.

3

361063R1

GASKET, (used only with 351199R91)

1шт.

Service parts for air cleaners (gasoline) (Farmall 200 series)

1шт.

Service parts for air cleaners (distillate or kerosene) (Farmall 200 and 230 tractors)

1шт.

4

358147R91

CLAMP

retaining, oil cup

1шт.

5

358145R1

BAFFLE

1шт.

6

358146R1

CUP, oil

1шт.

7

351199R91

CLEANER, air, assembly (optional with 351198R92) (composed of (1) baffle 358145R1, (1) cup 358146R1, (1) body 358144R91, (1) gasket 361063R1, (1) clamp 358147R91)

1шт.

Service parts for air cleaners (gasoline) (Farmall 200 series)

1шт.

Service parts for air cleaners (distillate or kerosene) (Farmall 200 and 230 tractors)

1шт.

7

367766R91

AIR CLEANER

CLEANER, air, assembly (optional with 366321R91) (composed of (1) baffle 358145R1, (1) cup 358146R1, (1) body (NSS), (1) clamp 358147R91)

1шт.

Service parts ofr air cleaners (gasoline) (Farmall 230, 240 and International 240 tractors)

1шт.

7

373322R91

CLEANER, air, assembly (optional with 373320R91) (composed of (1) baffle 385145R1, (1) body (NSS), (1) clamp 358147R91, (1) cup 358146R1)

1шт.

Service parts for air cleaners (distillate) (Farmall and International 240 tractors)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

2шт.

8

362757R1

INTAKE AIR HOSE,1.50" ID x 1.56", SAE 20R2 Class sc

Connection, Air Cleaner 1.50" ID x 1.56", SAE 20R2 Class sc

1шт.

Service parts for air cleaners (gasoline) (Farmall 200 series)

1шт.

Service parts for air cleaners (distillate or kerosene) (Farmall 200 and 230 tractors)

1шт.

8

366322R1

INTAKE AIR HOSE,1.62" ID x 1.56", SAE 20R1 Class R

Air Cleaner 1.62" ID x 1.56", SAE 20R1 Class R

1шт.

Service parts ofr air cleaners (gasoline) (Farmall 230, 240 and International 240 tractors)

1шт.

Service parts for air cleaners (distillate) (Farmall and International 240 tractors)

1шт.

9

56356D

CLAMP, air cleaner hose

2шт.

Service parts for air cleaners (gasoline) (Farmall 200 series)

1шт.

Service parts for air cleaners (distillate or kerosene) (Farmall 200 and 230 tractors)

1шт.

9

366323R1

CLAMP, air cleaner hose

2шт.

Service parts ofr air cleaners (gasoline) (Farmall 230, 240 and International 240 tractors)

1шт.

Service parts for air cleaners (distillate) (Farmall and International 240 tractors)

1шт.

Выбрано товаров: 36
