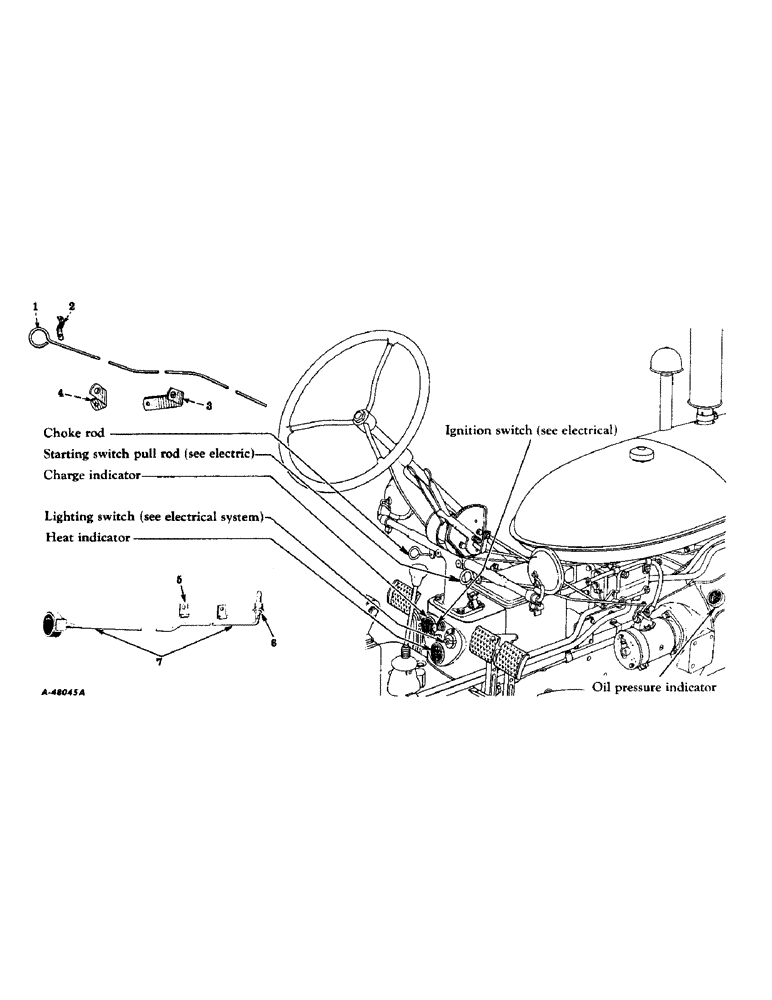

Запчасти Case IH 230 (151) - CHASSIS, ENGINE CONTROLS AND INSTRUMENTS, FARMALL 230 TRACTORS (12) - CHASSIS

1

366730R1

ROD, choke

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.

2

354379R1

CLIP, choke rod, rear

2шт.

181307

BOLT,Hex, 1/4" - 28 x 3/8", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 3/8"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

366729R1

CLIP, choke rod, front (tractors equipped with hydra-touch) (single valve) (system)

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd., 1/4-20NC x 9/16"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

367120R1

CLIP, choke rod, front (tractors equipped with hydra-touch) (double valve) (system)

1шт.

5

61813D

CLIP

heat indicator

2шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

cap, hex-hd., 3/8-16NC x 9/16"

2шт.

6

51510D

BUSHING

reducing, heat indicator

1шт.

7

351698R92

GAUGE

INDICATOR, heat, assembly (120 deg. - 180 deg.) (special) (low boiling point anti-freeze)

1шт.

7

353868R91

INDICATOR

heat, assembly (170 deg. - 220 deg.)

1шт.

361913R91

PARTS ACCESSORY, thermostat and heat indicator (for low boiling point anti-freeze) (consists of (1) thermostat (133 deg. - 150 deg. 361818R91, (1) indicator (120 deg. - 180 deg.) 351698R92)

1шт.
