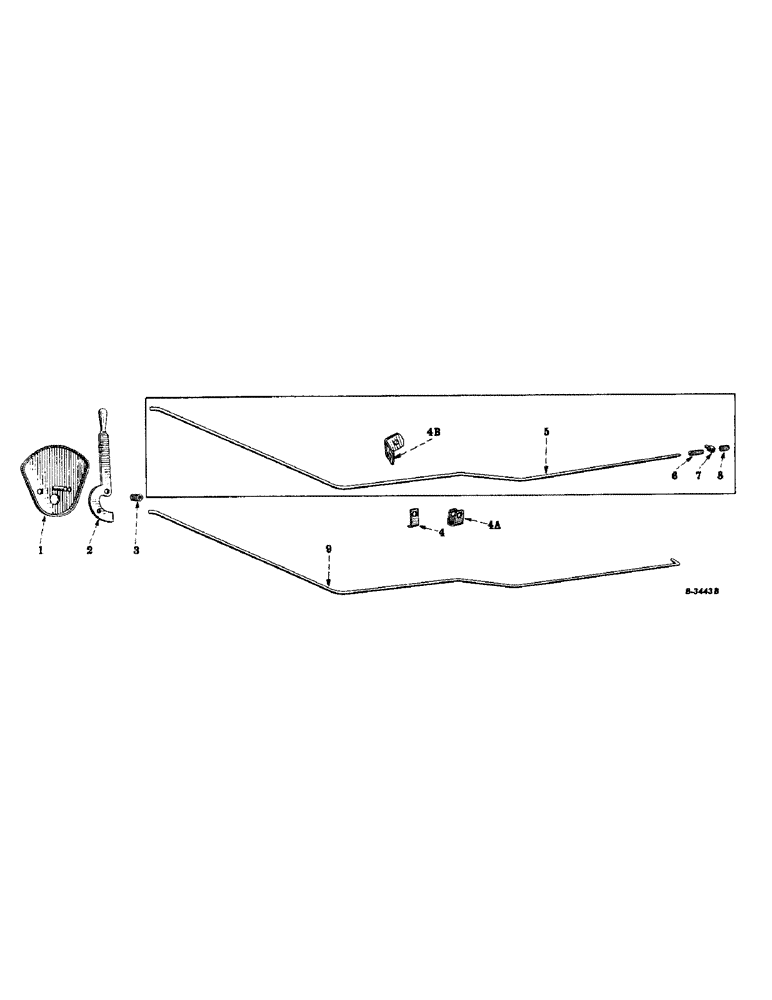

Запчасти Case IH 230 (146) - CHASSIS, GOVERNOR CONTROLS, FARMALL 200 AND 230 TRACTORS (12) - CHASSIS

1

354742R11

QUADRANT

SECTOR, governor control, w/pin

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8"

2шт.

95-11034

WASHER,1/4"

plain, 11/32" x I.D. x 11/16" O.D. x no. 16 ga.

1шт.

2

351327R2

LEVER

governor control

1шт.

3

43650D

SPRING

governor control lever

1шт.

4

340727R1

CLIP, governor control rod (tractors equipped with touch-control) (Farmall 200)

1шт.

4a

350614R1

CLIP, governor control rod (tractors without touch-control)

1шт.

4b

366728R1

CLIP, governor control rod (Farmall 230)

1шт.

5

351323R1

ROD, governor control (order 351328R2 - Ref. no. 9) (Farmall 200)

1шт.

137130

PIN

cotter, 1/16 x 7/16"

3шт.

Q103

WASHER

steel, plain, 1/4"

2шт.

6

53393D

SPRING

equalizer, governor control rod, rear (used only with 351328R1 - Ref. no. 5)

1шт.

7

51299DA

SWIVEL, governor control rod (used only with 351328R1 - Ref. no. 5)

1шт.

137130

PIN

cotter, 1/16 x 7/16"

1шт.

Q103

WASHER

steel, plain, 1/4"

1шт.

8

51300D

VALVE SPRING

SPRING, equalizer, governor control rod, front (used only with 351328R1 - Ref. no. 5)

1шт.

9

351328R2

ROD, governor control (Farmall 200) (will work for 51299DA, 51300D, 53393D, and 351328R1)

1шт.

9

366731R1

ROD, governor control (Farmall 230)

1шт.

137130

PIN

cotter, 1/16 x 7/16"

2шт.

Q103

WASHER

plain, 1/4"

2шт.
