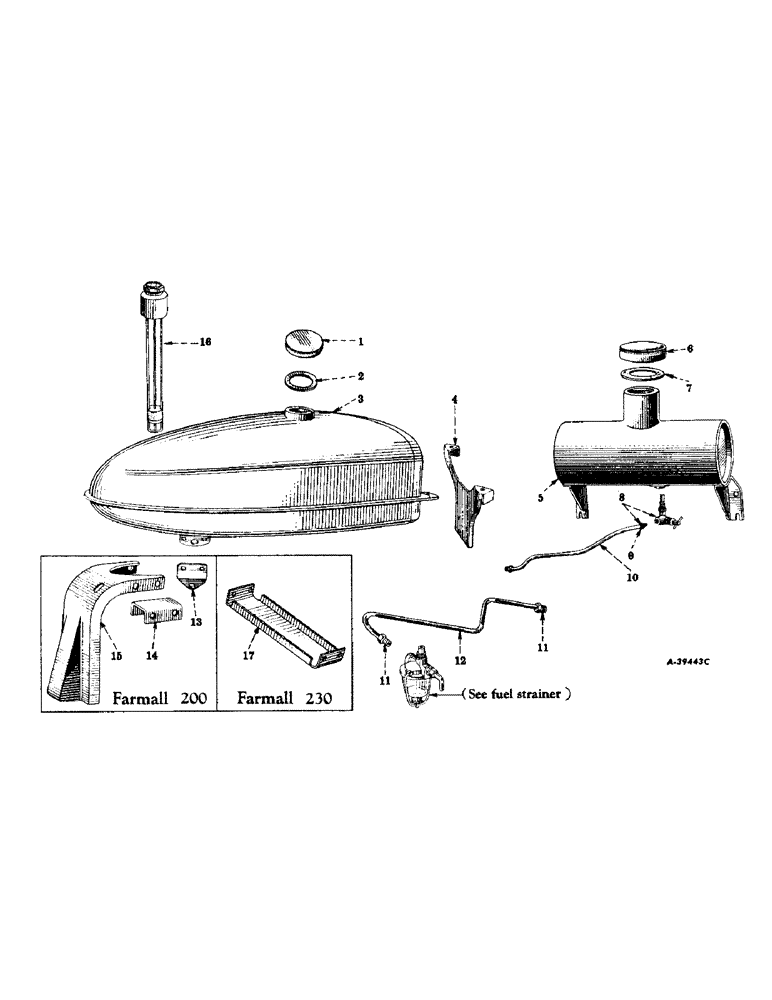

Запчасти Case IH 230 (140) - CHASSIS, FUEL TANK, GASOLINE TANK, SUPPORTS AND PIPING, FARMALL 200 AND 230 TRACTORS (12) - CHASSIS

1

23995DC

FILLER CAP

CAP, fuel tank filler, w/gasket, 23977DB (not used on tractors equipped with fuel gauge filler cap)

1шт.

2

23977DB

GASKET

fuel tank filler cap

1шт.

3

356580R95

TANK, fuel, w/extenesion, assembly (composed of (1) cap 23995DC, (2) extension 356353R1, (4) nut 103025, (4) screw 181335, (1) tank 356009R94 (NSS), (4) washer 103320)

1шт.

103026

NUT,3/8"-24, G5

(Farmall 200) 3/8"-24, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Farmall 200) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1" (for tractors not equipped with touch-control) (Farmall 200)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Farmall 200) 3/8"

6шт.

9635082

NUT,5/16" - 18, Gr 5

(Farmall 230) 5/16"-18, G5

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Farmall 230) Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (Farmall 230) 5/16"

4шт.

4

356008R21

BRACKET

fuel tank support, front (sheet steel) (optional with 356495R1)

1шт.

181355

BOLT

SCREW, cap, hex-hd., 3/8-24NF x 9/16"

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

356495R1

BRACKET, fuel tank support, front (optional with 356003R21)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

362641R91

TANK, gasoline, w/filler cap, 23995DC

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

steel 3/8"

2шт.

6

23995DC

FILLER CAP

CAP, gasoline tank filler, w/gasket, 23977DB

1шт.

7

23977DB

GASKET

gasoline tank filler cap

1шт.

8

370829R91

VALVE, shut-off gasoline tank, w/nut, 369989R1 (kerosene or distillate)

1шт.

9

369989R1

NUT

hi-duty tube fitting brs., 5/16" O.D. tubing

2шт.

10

356373R11

PIPE, gasoline tank to strainer w/two nuts, 369989R1 (kerosene or distillate)

1шт.

11

369989R1

NUT

hi-duty tube fitting brs., 5/16" O.D. tubing

2шт.

12

356355R11

PIPE, strainer to carburetor, w/two nuts, 369989R1 (gasoline) (Farmall 200)

1шт.

12

356374R11

PIPE, strainer to carburetor, w/two nuts, 369989R1 (kerosene or distillate)

1шт.

12

369993R11

PIPE

strainer to carburetor, w/two nuts, 369989R1 (Farmall 230) (will work for 366446R11)

1шт.

13

356353R1

SUPPORT

EXTENSION, fuel tank support bracket, rear (for tractors equipped with touch-control) (Farmall 200)

2шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

181335

BOLT,Hex, 5/16" - 24 x 11/16", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

14

350622R1

BRACKET, fuel tank support angle adapter (for tractors not equipped with touch-control) (Farmall 200)

2шт.

131360

LEVER

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

4шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

15

49601D

BRACKET, fuel tank support, rear (for tractors not equipped with touch-control) (Farmall 200)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

16

365482R92

CAP, fuel gage filler, w/gasket, 23977DB (special)

1шт.

17

366445R1

BRACKET, fuel tank mounting, rear (Farmall 200)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
