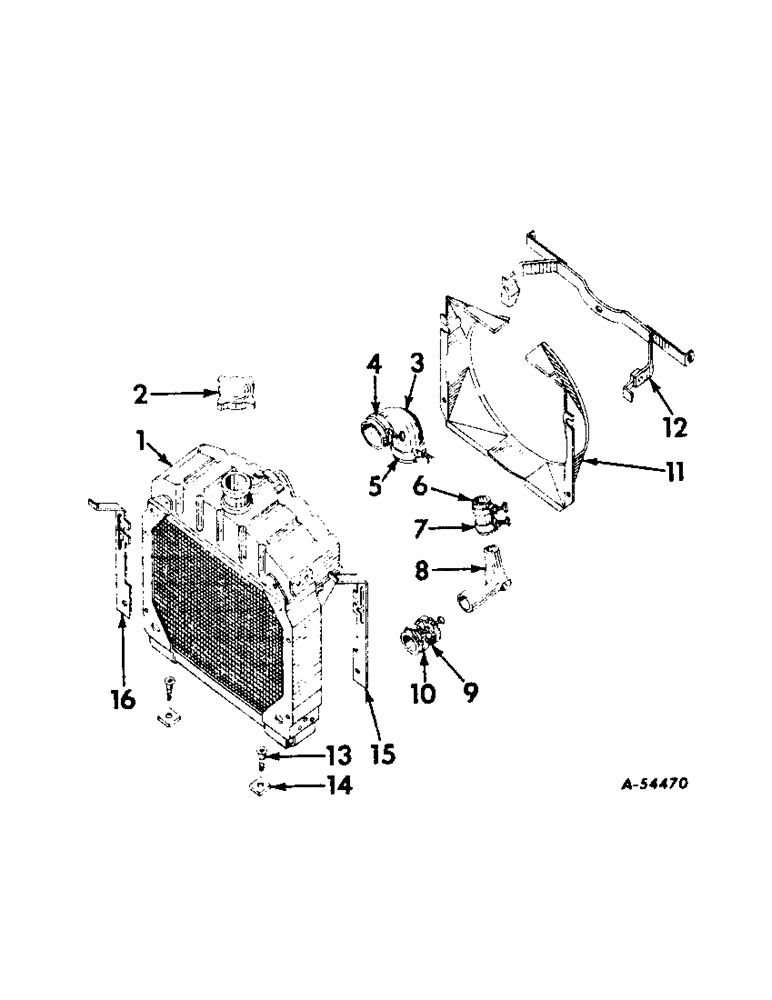

Запчасти Case IH 230 (136) - CHASSIS, RADIATOR AND CONNECTIONS, FARMALL AND INTERNATIONAL 240 TRACTORS (12) - CHASSIS

1

370626R92

RADIATOR

1шт.

191296

PIPE,Nipple, 3/8" NPT x 4 1/2"

radiator drain

1шт.

110675

CAP,3/8" NPT

radiator drain pipe

1шт.

2

370871R91

CAP

radiator filler

1шт.

3

369397R1

HOSE,2.38" ID, 2.50" ID x 4.00", SAE 20R4 Class R Grade -1

ELBOW, radiator inlet

1шт.

3

369397R1GV

RADIATOR HOSE

Value, Elbow, Radiator Inlet

1шт.

4

39226H

CLAMP

radiator inlet hose, upper

1шт.

5

39233H

CLAMP

radiator inlet hose, lower

1шт.

6

369092R2

RADIATOR HOSE,1.375" ID x 3.50"

Water Pump Inlet 1.375" ID x 3.50"

1шт.

7

39142H

COLLAR CLAMP

CLAMP, water pump, inlet

2шт.

8

369396R1

ELBOW

water outlet, w/plugs

1шт.

143162

PLUG

pipe, sq-socket automotive, 3/8"

2шт.

9

20075DB

RADIATOR HOSE,50.80 mm ID x 57.20 mm, SAE 20R4 Class R

Water Outlet, Elbow 50.80 mm ID x 57.20 mm, SAE 20R4 Class R

1шт.

10

29970D

CLAMP

water outlet elbow hose

2шт.

11

369399R1

SHROUD

HOUSING FAN

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

186271

SCREW,Hex, 5/16" - 18 x 3 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3 3/4", G5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

374090R1

BRACE, radiator mounting (will work for 369913R91)

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/16-18 x 1/2"

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

13

352632R1

BOLT,Sq Nk, 7/16" - 20 x 1 1/8"

radiator mounting

2шт.

18601R1

NUT,7/16"-20, GC

hex., 7/16-20NF

2шт.

14

47240D

PAD

radiator

2шт.

15

370095R1

BAFFLE, radiator side, L.H.

1шт.

110633

NUT,#10-24

2шт.

16

370094R1

BAFFLE, radiator side, R.H. (for tractors not equipped w/radiator shutter)

1шт.

16

371758R1

BAFFLE, radiator side (for tractors equipped w/radiator shutter)

1шт.
