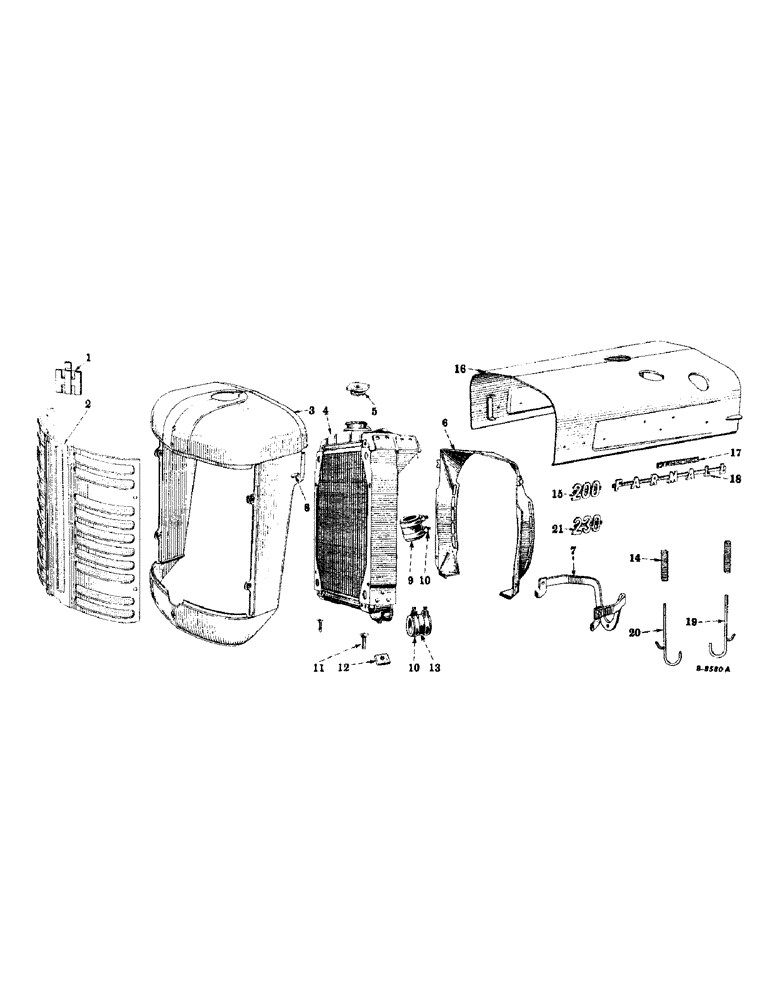

Запчасти Case IH 230 (134) - CHASSIS, RADIATOR AND CONNECTIONS, GRILLE AND HOOD, FARMALL 200 AND 230 TRACTORS (12) - CHASSIS

1

362513R1

EMBLEM, hood (I.H.)

1шт.

363284R2

CLIP

FASTENER, tubular clip

2шт.

2

362592R11

GRILLE

radiator

1шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, fastener, w/washer

4шт.

3

362586R91

SUPPORT, radiator grille

1шт.

362594R91

NUT

speed grip, 5/16-24

4шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, fastener, w/washer

3шт.

4

356356R94

RADIATOR

(optional with 358421R93)

1шт.

4

358421R93

RADIATOR, (optional with 356356R94)

1шт.

5

361705R91

COVER

CAP, radiator filler (optional with 362323R91)

1шт.

5

362323R91

CAP

radiator filler (optional with 361705R91)

1шт.

6

351182R2

HOUSING, fan

1шт.

425-115

NUT,5/16"-24, G5

hex., 5/16-24NF

4шт.

217220

SCREW, cap, hex-hd., 5/16-24NF x 3-3/4"

2шт.

186305

FLOOR

SCREW, cap, hex-hd., 5/16-24NF x 4"

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

7

356357R12

BRACE, radiator

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, fastener, radiator grille and radiator grille support

7шт.

9

355688R2

FLEXIBLE HOSE,2.38" ID x 2.75"

RADIATOR HOSE, , Inlet, 1 Ply 2.38" ID x 2.75"

1шт.

10

357870R91

CLAMP

hose (strap type), w/clip and screw (range 3/4 to 4" O.D. hose)

4шт.

11

352632R1

BOLT,Sq Nk, 7/16" - 20 x 1 1/8"

radiator mounting

2шт.

271506

DISC

hex., 7/16-20NF

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

12

47240D

PAD

radiator

2шт.

13

351964R2

HOSE

radiator outlet (2" I.D. x 3" long, 1 ply)

1шт.

14

48707DA

SPRING

hood clamp hook

4шт.

15

362515R1

PLATE, number, "200"

2шт.

363784R1

FASTENER

tubular clip

4шт.

16

362503R22

HOOD, w/brackets and shield (gasoline)

1шт.

16

362635R22

HOOD, w/brackets and shield (kerosene or distillate)

1шт.

17

362389R1

PLATE, name, "McCormick"

2шт.

363784R1

FASTENER

tubular clip

4шт.

18

362512R2

PLATE, name, "Farmall"

2шт.

363784R1

FASTENER

tubular clip

10шт.

19

363688R91

CLAMP, hood, L.H. rear

1шт.

19

363669R91

CLAMP

hood R.H. rear

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

20

58146D

CLAMP

hood, L.H. front

1шт.

20

58147D

CLAMP

hood, R.H. front

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

21

366723R1

PLATE, number (Farmall 230)

2шт.

363784R1

FASTENER

tubular clip

4шт.
