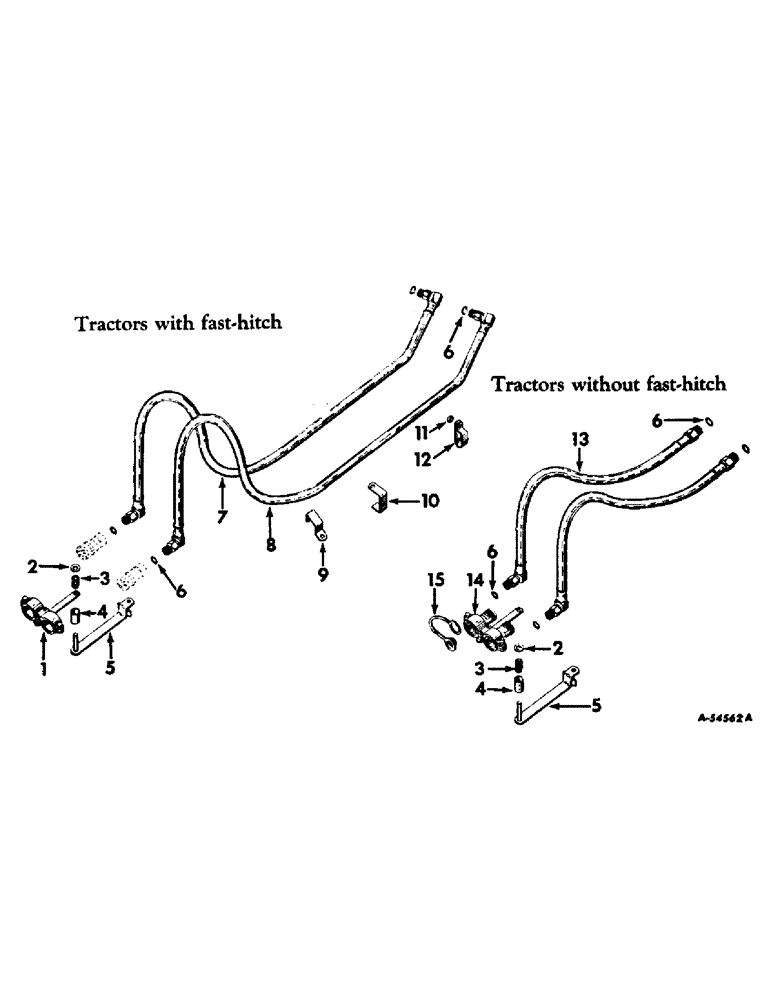

Запчасти Case IH 230 (282) - HYDRAULIC SYSTEM, HYDRAULIC REMOTE CONTROL, FARMALL AND INTERNATIONAL 240 TRACTORS (07) - HYDRAULIC SYSTEM

1

371110R91

FRAME

self sealing coupling, assembly

1шт.

372845R91, Parts accessory, remote control (for tractors equipped w/double and triple valve hydra-touch system and fast- hitch)

1шт.

2

PO10535

WASHER

plain, 17/32" ID x 1-1/4" OD x no. 11 ga.

1шт.

3

353213R1

SPRING

break-away front section coupling

1шт.

4

355681R1

SPACER, break-away coupling bracket

1шт.

5

368239R11

BRACKET, break-away coupling, assembly

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

RING, seal, hose

4шт.

7

372843R91

HOSE, junction block to break-away coupling (short)

1шт.

372845R91, Parts accessory, remote control (for tractors equipped w/double and triple valve hydra-touch system and fast- hitch)

1шт.

8

372844R91

HOSE, junction block to break-away coupling (long)

1шт.

372845R91, Parts accessory, remote control (for tractors equipped w/double and triple valve hydra-touch system and fast- hitch)

1шт.

9

368242R1

GUIDE, hydraulic hose

1шт.

372845R91, Parts accessory, remote control (for tractors equipped w/double and triple valve hydra-touch system and fast- hitch)

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

372845R91, Parts accessory, remote control (for tractors equipped w/double and triple valve hydra-touch system and fast- hitch)

1шт.

10

372847R1

BRACKET, hydraulic hose

1шт.

372845R91, Parts accessory, remote control (for tractors equipped w/double and triple valve hydra-touch system and fast- hitch)

1шт.

11

356836R1

SPACER, hydraulic hose clamp

1шт.

372845R91, Parts accessory, remote control (for tractors equipped w/double and triple valve hydra-touch system and fast- hitch)

1шт.

12

368243R1

CLAMP, hydraulic hose

1шт.

372845R91, Parts accessory, remote control (for tractors equipped w/double and triple valve hydra-touch system and fast- hitch)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

1шт.

372845R91, Parts accessory, remote control (for tractors equipped w/double and triple valve hydra-touch system and fast- hitch)

1шт.

13

372842R91

HOSE, junction block to break-away coupling

2шт.

372846R91, Parts accessory, remote control (for tractors equipped w/hydra touch system and not equipped w/fast-hitch)

1шт.

14

374777R91

COUPLING, break-away front, assembly (for components see list of parts under details of "break-away and self-sealing couplings")

1шт.

372846R91, Parts accessory, remote control (for tractors equipped w/hydra touch system and not equipped w/fast-hitch)

1шт.

15

373220R1

PLUG

CAP, dust, break-away coupling

2шт.

372846R91, Parts accessory, remote control (for tractors equipped w/hydra touch system and not equipped w/fast-hitch)

1шт.
