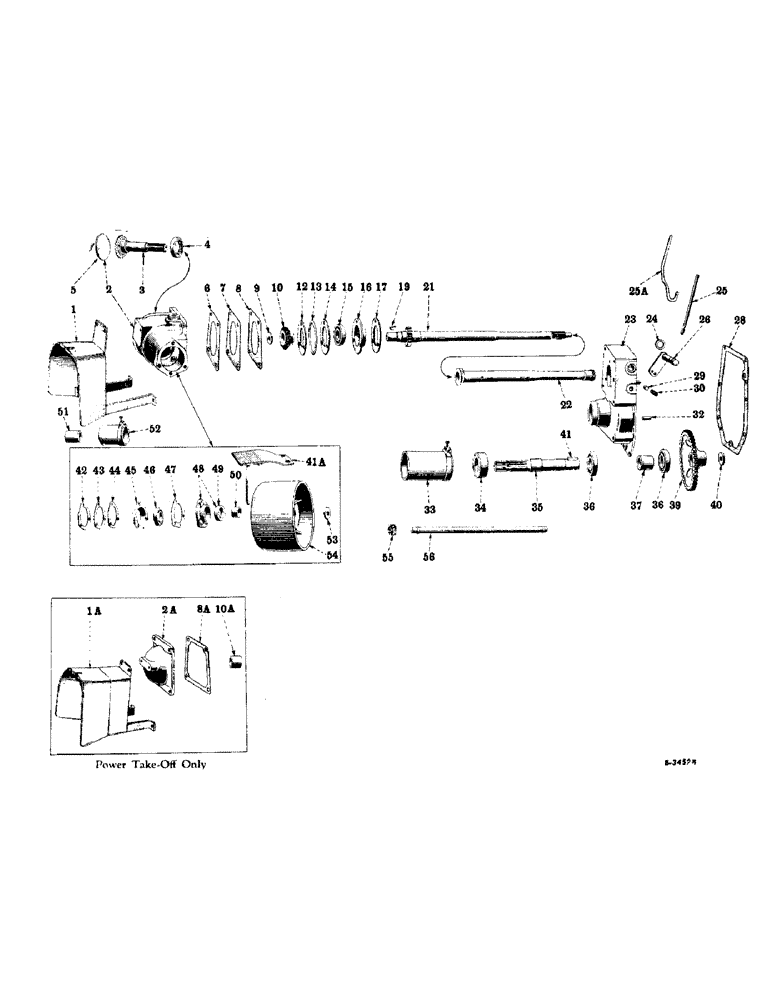

Запчасти Case IH 230 (290) - ATTACHMENTS, BELT PULLEY AND POWER TAKE-OFF ATTACHMENT, SPECIAL Attachments

1

55398DB

SHIELD

safety, power take-off, rear (A, C, D, E, F, G only)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(A, C, D, E, F, G only) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

1a

55403DC

SHIELD

safety, power take-off rear (B only)

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(B only) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

2

9090DX

HOUSING, belt pulley drive, w/plug, 363728R1 and one plug, 103865 and one plug, 144000 (A, C, D, E, F, G only)

1шт.

103865

PLUG, pipe, sq-hd., C.I., 1/8" (drain plug)(optional with 103877) (A, C, D, E, F, G only)

1шт.

103877

PLUG

pipe, sq-hd., stl., 1/8" (drain plug)(optional with 103865) (A, C, D, E, F, G only)

1шт.

144000

PLUG

pipe, csk-hdls., stl., 1" (optional with 103876) (inspection plug) (A, C, D, E, F, G only)

1шт.

103876

PLUG, pipe, csk-hd., C1., 1" (optional with 144000)(inspection plug) (A, C, D, E, F, G only)

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, CAP, hex-hd., 7/16-14NC x 4-1/4" (A, D, F, G ONLY)

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A, D, F, G only) 7/16"

4шт.

2a

9092D

COVER

power take-off opening (B only)

1шт.

186292

BOLT,Hex, 7/16" - 14 x 4 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 4-1/4" (B only)

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (B only) 7/16"

4шт.

3

351627R1

SHAFT

belt pulley (23 teeth) (A, C, D, E, F, G only)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1" (A, C, D, E, F, G only)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A, C, D, E, F, G only) 7/16"

1шт.

4

63441H

BEARING, ROLLER, CYL,44.01mm ID x 72mm OD x 17mm W

roller, w/outer race (A, C, D, E, F, G only)

1шт.

5

363728R1

PLUG

belt puley drive housing end (A, C, D, E, F, G only)

1шт.

6

60582D

SHIM

drive housing, light (.007") (A, C, D, E, F, G only)

1шт.

6

355143R1

SHIM

drive housing, extra light (.004") (A, C, D, E, F, G only)

1шт.

7

60583D

SHIM

drive housing, medium (.015") (A, C, D, E, F, G only)

1шт.

8

60584D

SHIM

drive housing, heavy (.030") (A, C, D, E, F, G only)

1шт.

8a

60581D

GASKET

power take-off opening cover (B only)

1шт.

9

43262DA

WASHER

power take-off drive shaft (A, B, D, F, G only)

1шт.

10

351626R1

PINION

bevel, belt pulley drive (19 teeth) (A, C, D, E, F, G only)

1шт.

10a

48152D

SPACER

power take-off shaft (B only)

1шт.

12

63780D

RETAINER

drive housing seal ring (A, C, D, E, F, G only)

1шт.

13

358208R1

SEALING RING

RING, seal, drive housing (will work for 58419D) (A, C, D, E, F, G only)

1шт.

14

63778D

RETAINER, power take-off drive shaft bearing (A, B, D, F, G only)

1шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external tooth, 3/8" (A, B, D, F, G only)

3шт.

NLS

NO LONGER SERVICED

(A, B, D, F, G only) Hex, 3/8"-16 x 1", G5

3шт.

15

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, ball, power take-off drive shaft (A, B, D, F, G only)

1шт.

16

60588D

CAGE, power take-off drive shaft bearing (A, B, D, F, G only)

1шт.

17

63779D

GASKET

power take-off drive shaft bearing cage (A, B, D, F, G only)

1шт.

19

126-119

WOODRUFF KEY,#11, 3/16" x 7/8", HT

KEY, Woodruff, Alloy-stl., no. 11 (A, C, D, E, F, G only)

1шт.

21

351311R1

SHAFT

power take-off drive (16 teeth)(A, B, D, F, G only)

1шт.

21

371725R1

SHAFT, power take-off drive (10 teeth)(note C)(B, F, G only)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1" (A, B, D only)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A, B, D only) 7/16"

1шт.

22

351305R92

TUBE

SHIFTER, power take-off (B, F, G only)

1шт.

22

371728R11

SHIFTER, power take-off (used with shaft, 371725R1)(note C) (B, F, G only)

1шт.

23

9091DCX

HOUSING

power take-off drive, w/oil seal, 367808R91, two pins, 357215R1 and plug, 103884 (A, B, D, F, G only)

1шт.

103884

PLUG,Slotted, 1/4" NPT

pipe, slotted-hd., 1/4" (A, B, D, F, G only)

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/4" (A, B, D, F, G only)

1шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3-1/2" (A, B, D, F, G only)

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A, B, D, F, G only) 7/16"

1шт.

496-21047

WASHER

plain, 15/32" ID x 59/64" O.D. x no. 16 ga. (A, B, D, F, G only)

2шт.

24

367808R91

OIL SEAL

OIL SEAL, power take-off shifter lever shaft (A, B, D, F, G only)

1шт.

25

351256R1

LEVER, power take-off shifter (Farmall 200)(A, B only)

1шт.

25a

366436R1

LEVER, power take-off shifter (B, D, E, F only)

1шт.

26

53517DB

SHAFT, power take-off shifter lever (for service replacement, also order Poppet, 373571R1) (A, B, D, F, G only)

1шт.

Q3478

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 14 ga. (A, B, D, F, G only)

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), (A, B, D, F, G only) 5/32" x 1 1/4"

1шт.

28

60589DA

GASKET

power take-off drive housing (A, B, D, F, G only)

1шт.

29

373571R1

VALVE POPPET

POPPET, power take-off shifter (will work for 48102D)(A, B, D, F, G only)

1шт.

30

48103D

VALVE SPRING

SPRING, power take-off shifter poppet (A, B, D, F, G only)

1шт.

32

357215R1

PIN

dowel, power take-off drive housing (A, B, D, F, G only)

2шт.

33

51484DX

GUARD, power take-off shaft, w/clamp (A, B, D, F, G only)

1шт.

34

48114D

SEAL

OIL SEAL, power take-off shaft (A, B, D, F, G only)

1шт.

35

66184D

SHAFT

power take-off (1-3/8" spline)(A, B, D, F, G only)

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, cap, hex-hd., 7/16-20NF x 1" (A, B, D, F, G only)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A, B, D, F, G only) 7/16"

1шт.

36

ST213

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

BEARING, ball, power take-off shaft (A, B, D, F, G only)

2шт.

37

48092D

BUSHING

SPACER, power take-off shaft bearing (A, B, D, F, G only)

1шт.

39

351310R1

PINION

GEAR, power take-off (49 teeth)(A, B, D, F, G only)

1шт.

40

43262DA

WASHER

power take-off shaft (A, B, D, F, G only)

1шт.

41

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

KEY, Woodruff, Alloy-stl., no. 126 (A, B, D, F, G only)

1шт.

41a

351309R91

GUARD, belt pulley (A, C only)

1шт.

103026

NUT,3/8"-24, G5

(A, C only) 3/8"-24, G5

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(A, C only) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1" (A, C only)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A, C only) 3/8"

4шт.

41a

366433R91

GUARD, belt pulley (not used with fast-hitch)(D, E only)

1шт.

103026

NUT,3/8"-24, G5

x 1" (D, E only) 3/8"-24, G5

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1" (D, E only)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (D, E only) 3/8"

2шт.

42

47284D

SHIM

belt pulley shaft bearing cage, light (A, C, D, E, F, G only)

1шт.

43

47285D

SHIM

belt pulley shaft bearing cage, medium (A, C, D, E, F, G only)

1шт.

44

47286D

SHIM

belt pulley shaft bearing cage, heavy (A, C, D, E, F, G only)

1шт.

45

47281D

CAGE

belt pulley shaft bearing (order package, 364827R91)(A, C, D, E only)

1шт.

45

47281DA

CAGE

belt pulley shaft bearing (F, G only)

1шт.

46

373987R91

BEARING

ball, belt pulley shaft outer (F, G only)

1шт.

46

ST212

BALL BEARING,30mm ID x 62mm OD x 16mm W

BEARING, ball, belt pulley shaft (A, C, D, E only)

1шт.

47

47283DA

GASKET

belt pulley shaft bearing cage (A, C, D, E, F, G only)

1шт.

48

48085DBX

FLANGE

RETAINER, belt pulley shaft bearing, w/oil seal, 367810R91 (A, C, D, E, F, G only)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4" (A, C, D, E, F, G only)

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A, C, D, E, F, G only) 3/8"

3шт.

49

367810R91

SEAL

OIL SEAL, belt pulley shaft (will work for 48954D)(A, C, D, E, F, G only)

1шт.

50

43630D

SPACER

belt pulley shaft (A, C, D, E, F, G only)

1шт.

51

48087DB

SPACER

belt pulley (A, C, D, E, F, G only)

1шт.

52

54001DX

GUARD

belt pulley shaft, w/clamp (A, C, D, E, F, G only)

1шт.

53

43262DA

WASHER

belt pulley shaft (A, C, D, E, F, G only)

1шт.

54

371726R1

PULLEY, belt (7" dia. - 5-3/4" face) (F, G only)

1шт.

54

366437R1

PULLEY, belt (8" dia. - 6" face) (D, E, F, G only)

1шт.

55

351251R1

NUT, belt pulley oil tube (note D)(A, B, D, E, F, G only) .75" Length

1шт.

56

351252R1

TUBE, oil, belt pulley (note D)(A, B, D, E, F, G only) .75" OD, 19.25" Length

1шт.

364827R1

PACKAGE, service, belt pulley shaft bearing cage (consists of cage, 47281DA and gasket, 47283DA)(A, C, D, E only)

1шт.

373183R91

PACKAGE, service power take-off shaft and shifter tube (consists of shaft, 351311R1 and tube, 351305R92)(will work for 371725R1 and 371728R11)(B, F, G only)

1шт.
