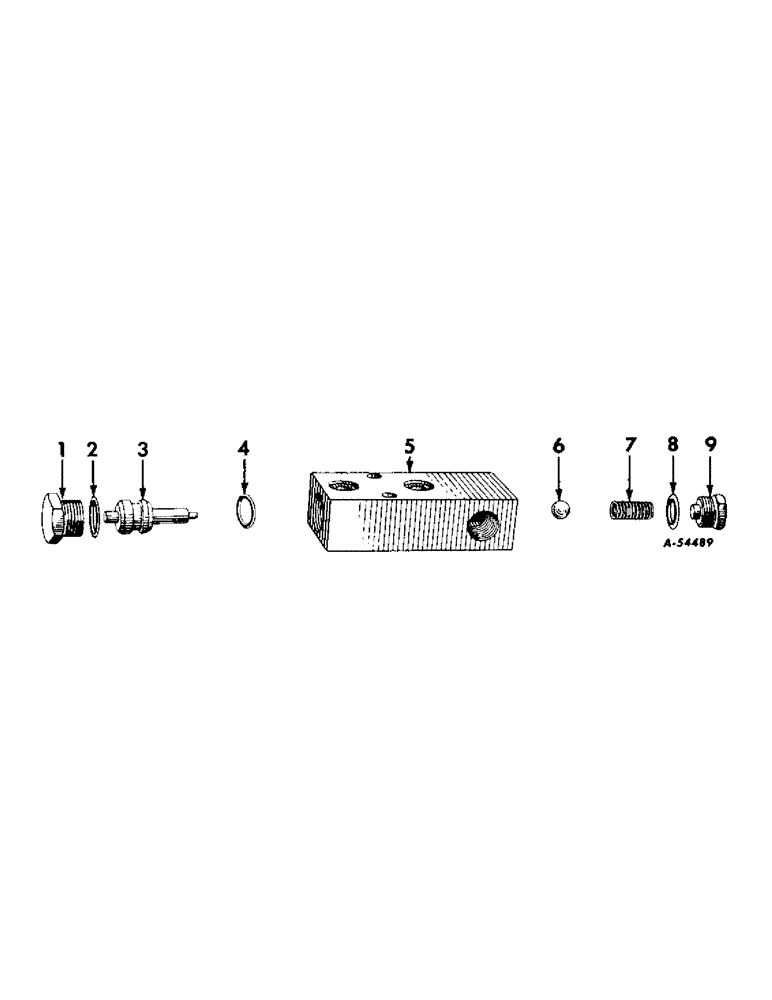

Запчасти Case IH 230 (278) - HYDRAULIC SYSTEM, CHECK VALVE, SINGLE ACTING (07) - HYDRAULIC SYSTEM

370965R92

VALVE, check, assembly (order package, 374174R91)

1шт.

1

373047R1

PLUG, check valve

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

RING, seal, check valve plug

1шт.

3

362707R1

PISTON

check valve actuator

1шт.

4

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, check valve actuator piston

1шт.

5

370966R2

BLOCK, check valve (order package, 374174R91)

1шт.

6

17016R1

BALL,1/2" Dia

1шт.

7

372649R1

SPRING

check valve

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

RING, seal, check valve plug

1шт.

9

370967R1

PLUG, check valve

1шт.

374174R91

PACKAGE

serivce, double acting check valve (will work for 370965R92) (consists of (1) plug 9410360, (1) ring 364885R1, (1) valve 374083R91)

1шт.
