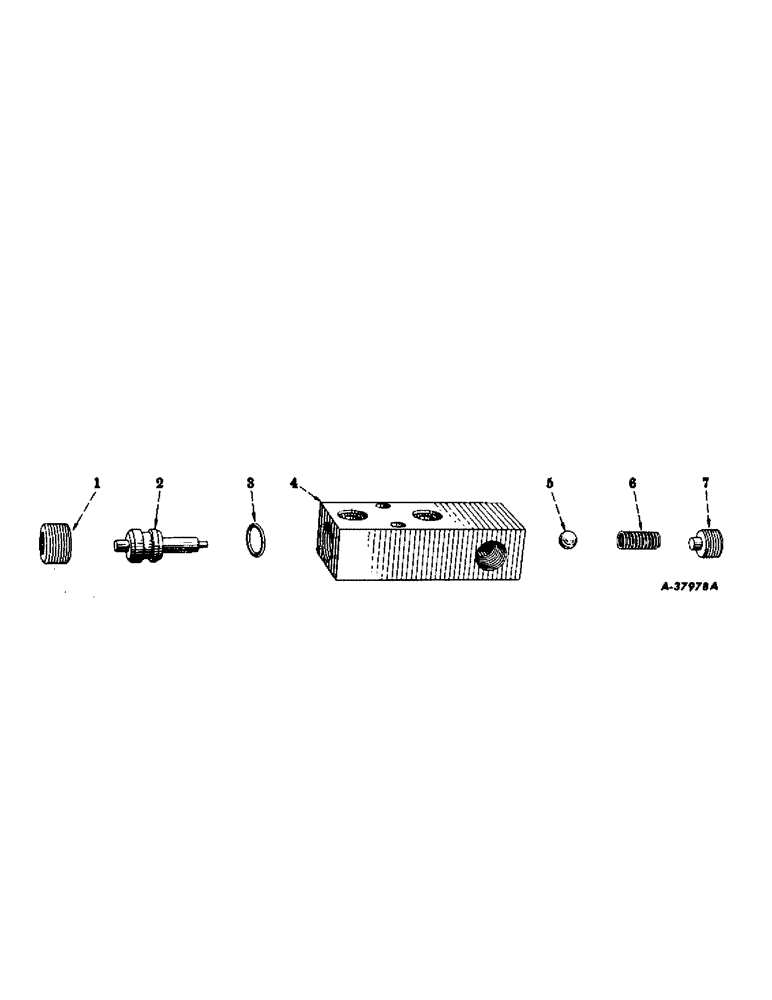

Запчасти Case IH 230 (277) - HYDRAULIC SYSTEM, CHECK VALVE (07) - HYDRAULIC SYSTEM

362705R91

VALVE

check, assembly

1шт.

1

365858R1

PLUG, automotive pipe, sq-socket, stl., 3/4" (optional with 364016R2)

1шт.

1

364016R2

PLUG

automotove pipe, sq-socket, stl., 3/4" (optional with 365858R1)

1шт.

2

362707R1

PISTON

check valve actuator

1шт.

3

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, check valve actuator piston

1шт.

4

362706R1

BLOCK, check valve

1шт.

5

17016R1

BALL,1/2" Dia

1шт.

6

372649R1

SPRING

check valve

1шт.

7

362728R1

PLUG, check valve (will work for 362559R1)

1шт.

366625R91

FAST HITCH CYLINDER PARTS ACCESSORY

1шт.
