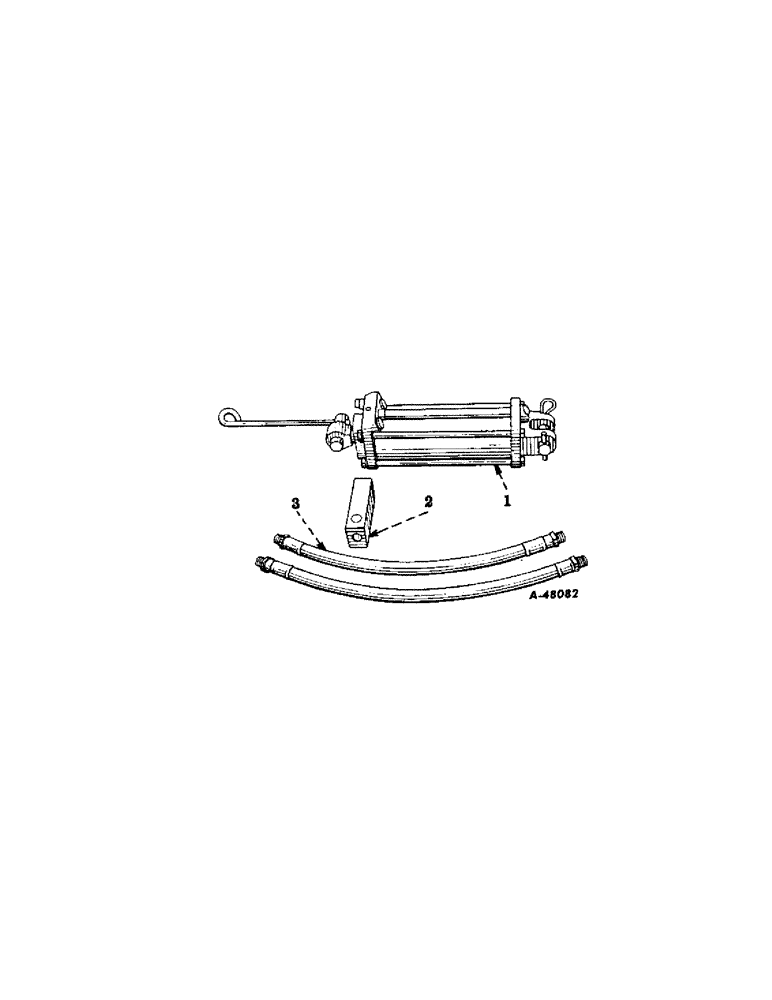

Запчасти Case IH 230 (277[A]) - HYDRAULIC SYSTEM, HYDRAULIC CYLINDER AND HOSE (07) - HYDRAULIC SYSTEM

1

366274R91

CYLINDER, hydraulic fast-hitch (for components see list of parts under detail of "hydraulic cylinder")

1шт.

2

362705R91

VALVE

check (illustrated with "hydra-touch rear manifold tubes") (for components see list of parts under detail of "check valve")

1шт.

362356R3

PLUG, automotive pipe, sq-socket, stl., 1/2"

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3/1/4"

2шт.

3

366626R91

HOSE, check valve to cylinder, 1/4" ID x 19" long

2шт.

366627R1

ELBOW, fast-hitch (illustrated with "hydra-touch rear manifold tubes")

2шт.

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal check valve (illustrated with "hydra-touch rear manifold tubes")

2шт.
