Запчасти Case IH 230 (289) - ATTACHMENTS, SPARK ARRESTER, SPECIAL, FARMALL 200 AND 230 TRACTORS Attachments

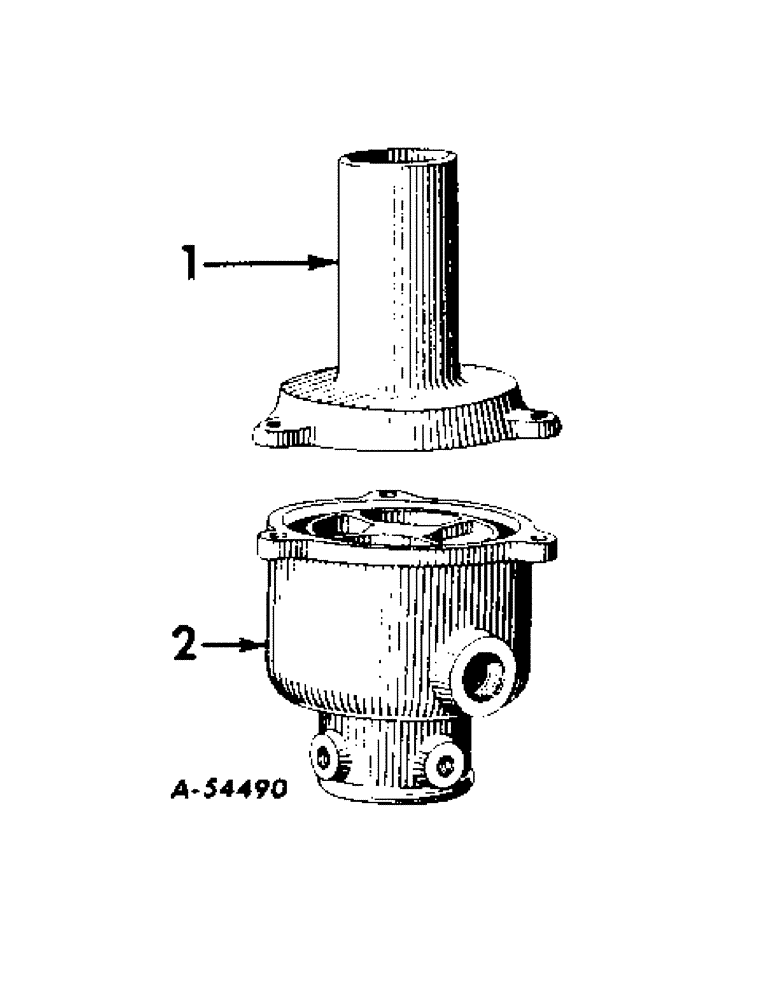

Схема запчастей Case IH 230 - (289) - ATTACHMENTS, SPARK ARRESTER, SPECIAL, FARMALL 200 AND 230 TRACTORS Attachments
1
2

Артикул

Название

Примечание

Количество

55348D

SPARK ARRESTER PARTS ACCESSORY (Farmall 200 and 230 tractors)

1шт.

1

3616D

TOP, spark arrester

1шт.

13254R1

BOLT, machine, sq-hd., 5/16-18NC x 1"

3шт.

114502

JAM NUT,Jam, 5/16"-18, G5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

5125D

BODY, spark arrester

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe Sq Hd, 1/2"-14 NPTF

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

SCREW, set, sq-hd., cup-pt., 3/8-16NC x 1"

2шт.

Выбрано товаров: 9
