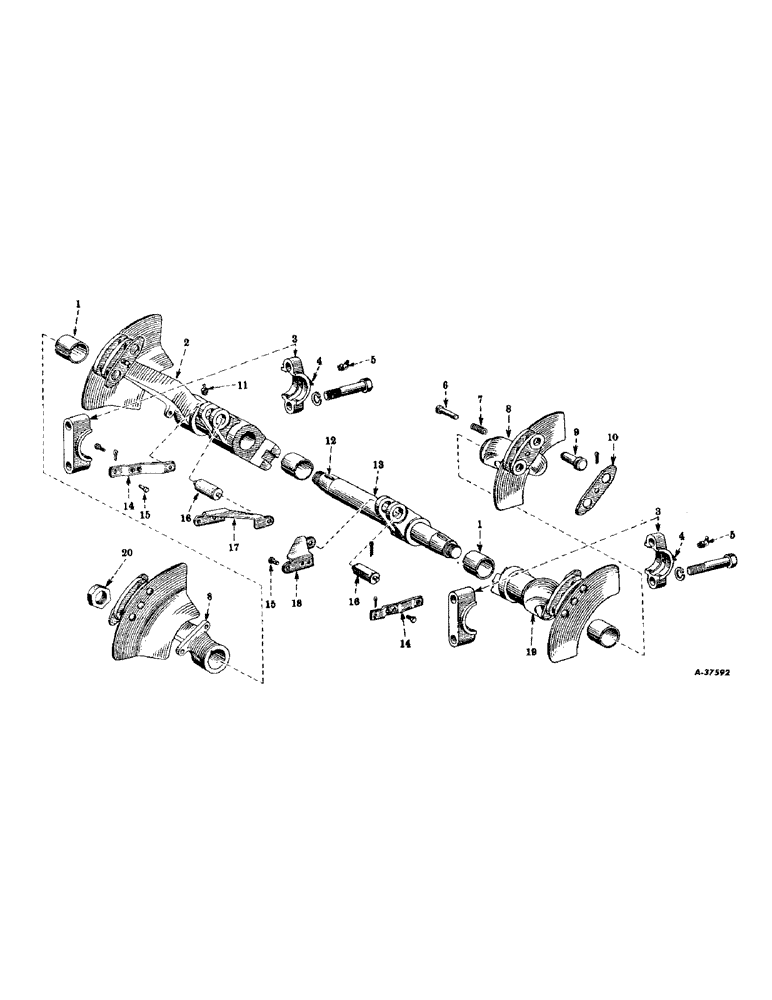

Запчасти Case IH 230 (231) - HYDRAULIC SYSTEM, TOUCH-CONTROL SYSTEM, FARMALL 200 TRACTORS, ROCKSHAFT AND SUPPORTS, 4 ARM (07) - HYDRAULIC SYSTEM

1

350693R1

BUSHING

rockshaft inner arm

4шт.

2

351401R21

ARM, inner, rockshaft, L.H., w/two bushings, 350693R1

1шт.

3

350914R93

BEARING

rockshaft support

2шт.

413-1444

BOLT,Hex, 7/8" - 9 x 2-3/4", Gr 5

SCREW, cap, hex-hd, 5/8-11NC x 3-3/4"

4шт.

10332

WASHER

lock, 5/8"

4шт.

4

271284

YOKE

lubrication, 67-1/2deg. elbow, 1/8" (optional with 109460) (used in bearing and cap with threaded fitting hole) (A only)

2шт.

4

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication, 67-1/2 deg. elbow, 1/8" (optional with 271284) (used in bearing and cap with threaded fitting hole) (A only)

2шт.

5

443571

FITTING

lubrication, drive type, 67-1/2 deg. elbow, 3/16" (optional with 273359) (used in bearing and cap with plain fitting hole)

2шт.

5

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, lubrication, drive type, 67-1/2deg. elbow, 3/16" (optional with 443571) (used in bearing and cap with plain fitting hole)

2шт.

6

Q3515

HEADED PIN,1/4" x 1 5/8"

PIN, rockshaft arm clevis pin lock

4шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

4шт.

7

350144R1

VALVE SPRING

SPRING, rockshaft arm clevis pin lock pin

4шт.

8

350919R21

ARM

rockshaft, outer

2шт.

9

350142R1

KEY

PIN, rockshaft arm clevis

8шт.

10

350188R2

BAR

LOCK, rockshaft arm clevis pin

4шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, drive type, straight, 3/16" (optional with 273354) (used in arm with plain fitting hole)

2шт.

11

273354

SHEAVE

FITTING, lubrication, drive type, straight, 3/16" (optional with 443566) (used in arm with plain fitting hole)

2шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (used in arm with threaded fitting hole) (A only) 1/8"-27 x .66 lg

1шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461) (used in arm with threaded fitting hole) (A only)

1шт.

12

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff, alloy-stl, no. 127

2шт.

13

351400R2

ROCKSHAFT

1шт.

14

350677R2

LINK, operating, control valve

2шт.

14

350677R2

LINK, operating, control valve

2шт.

110501

SCREW

slotted-rd-hd, no. 10-24NC x 5/8"

4шт.

110633

NUT,#10-24

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

15

350680R2

PIN

control valve operating link

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

16

350662R1

PIN

connecting rod

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

17

350678R1

BRACE, control valve operating link, L.H.

1шт.

18

350679R1

BRACE

control valve operating link, R.H.

1шт.

19

351402R11

ARM, rockshaft, inner R.H., w/two bushings, 350693R1

1шт.

20

15347D

NUT, rockshaft (will work for 115781)

2шт.

350917R3

BEARING, rockshaft support, R.H. (not used with 4-arm rockshaft) (see 3-arm rockshaft)

1шт.

351399R93

ROCKSHAFT, touch-control, assembly (composed of (2) arm 350919R21, (1) arm 351401R21, (1) arm 351402R11, (2) bearing 350914R93, (2) fitting 443571, (2) fitting 443566, (2) key 40093D, (4) lock 350188R2, (2) nut 15347, (4) pin Q3515, (4) pin 108630

1шт.
