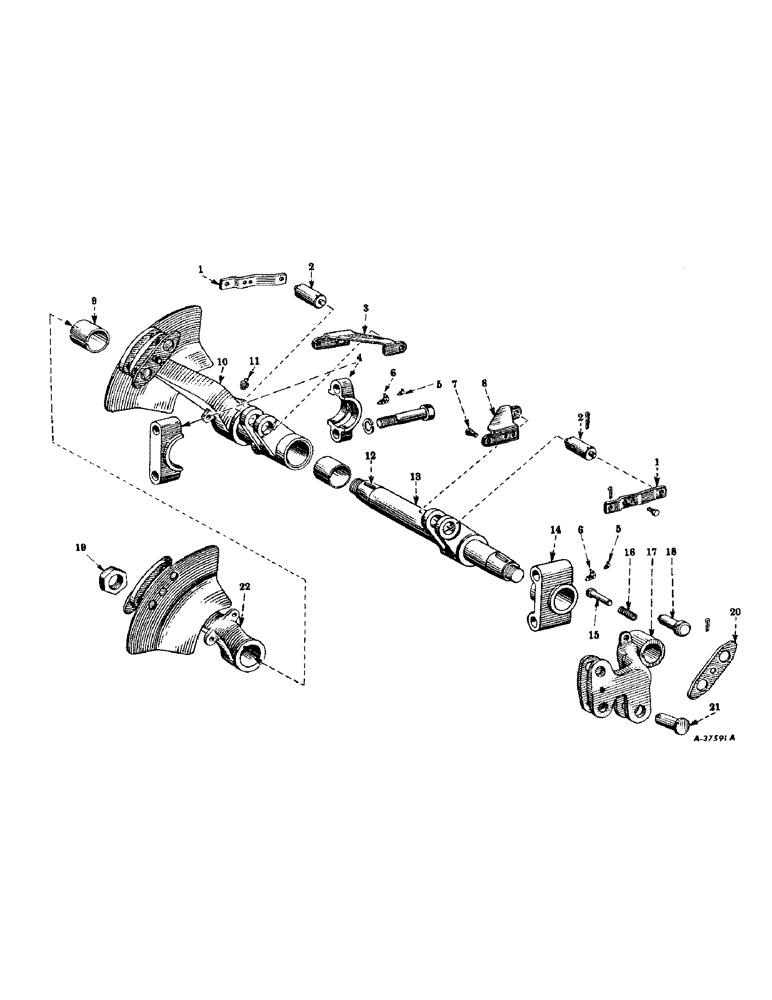

Запчасти Case IH 230 (229) - HYDRAULIC SYSTEM, TOUCH-CONTROL SYSTEM, FARMALL 200 TRACTORS, ROCKSHAFT AND SUPPORTS, 3 ARM (07) - HYDRAULIC SYSTEM

1

350677R2

LINK, operating, control valve

2шт.

114501

JAM NUT,Jam, 1/4"-20, G5

SCREW, slotted-rd-hd, no. 10NC x 5/8"

4шт.

110633

NUT,#10-24

4шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

2

350662R1

PIN

connecting rod

2шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

4шт.

3

350678R1

BRACE, control valve operating link, L.H.

1шт.

4

350914R93

BEARING

rockshaft support, L.H.

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, cap, hex-hd, 5/9-11NC x 3-3/4", Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

lubrication, 67-1/2", 1/8" (optional with 109460), (used in bearing and cap with threaded fitting hole) (A only)

2шт.

5

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, lubrication, 67-1/2" elbow, 1/8" (optional with 271284) (used in bearing and cap with threaded fitting hole) (A only)

2шт.

6

443571

FITTING

lubrication, drive type, 67-1/2deg. elbow, 3/16" (optional with 273359) (used in bearing and cap with plain fitting hole)

2шт.

6

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, lubrication, drive type, 67-1/2deg. elbow, 3/16" (optional with 4543571) (used in bearing and cap with plain fitting hole)

2шт.

7

350680R2

PIN

control valve operating link

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

8

350679R1

BRACE

control valve operating link, R.H.

1шт.

9

350693R1

BUSHING

rockshaft inner arm

2шт.

10

350918R21

ARM, rockshaft, inner, L.H. w/two bushings 350693R1

1шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING, lubrication, drive type, straight, 3/16" (optional with 273354) (used in arm with plain fitting hole)

1шт.

11

273354

SHEAVE

FITTING, lubrication, drive type, straight, 3/16" (optional with 443566) (used in arm with plain fitting hole)

1шт.

11

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, (Optional with 119512) (used in arm with threaded fitting hole) (A only) 1/8"-27 x .66 lg

1шт.

11

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8" (optional with 109461) (used in arm with threaded fitting hole) (A only)

1шт.

12

40093D

WOODRUFF KEY,#127, 1/4" x 2 1/8", HT

KEY, Woodruff, alloy-stl, no. 127

2шт.

13

350913R2

ROCKSHAFT

1шт.

14

350917R3

BEARING, rockshaft support, R.H.

1шт.

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

SCREW, cap, hex-hd, 5/8-11NC x 3-3/4", Course Threads

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

15

Q3515

HEADED PIN,1/4" x 1 5/8"

PIN, rockshaft clevis pin lock

3шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

3шт.

16

350144R1

VALVE SPRING

SPRING, rockshaft clevis pin lock pin

3шт.

17

359552R1

ARM, rockshaft, R.H.

1шт.

18

350142R1

KEY

PIN, rockshaft clevis

6шт.

19

15347D

NUT, rockshaft

2шт.

20

350188R2

BAR

LOCK, rockshaft clevis pin

3шт.

21

359554R1

PIN

rockshaft arm clevis

1шт.

PO18500A

PIN

cotter, quick-attachable

1шт.

22

350919R21

ARM

rockshaft, outer, L.H.

1шт.

359558R92

ROCKSHAFT, touch-control, assembly (will work for 350688R91) (composed of (1) arm 350918R21 (1) arm 350919R21, (1) arm 359552R1, (1) bearing 350914R93, (1) bearing 350917R3, (2) fitting 443571, (1) fitting 443566, (2) key 40093D, (3) lock 350188R2

1шт.
