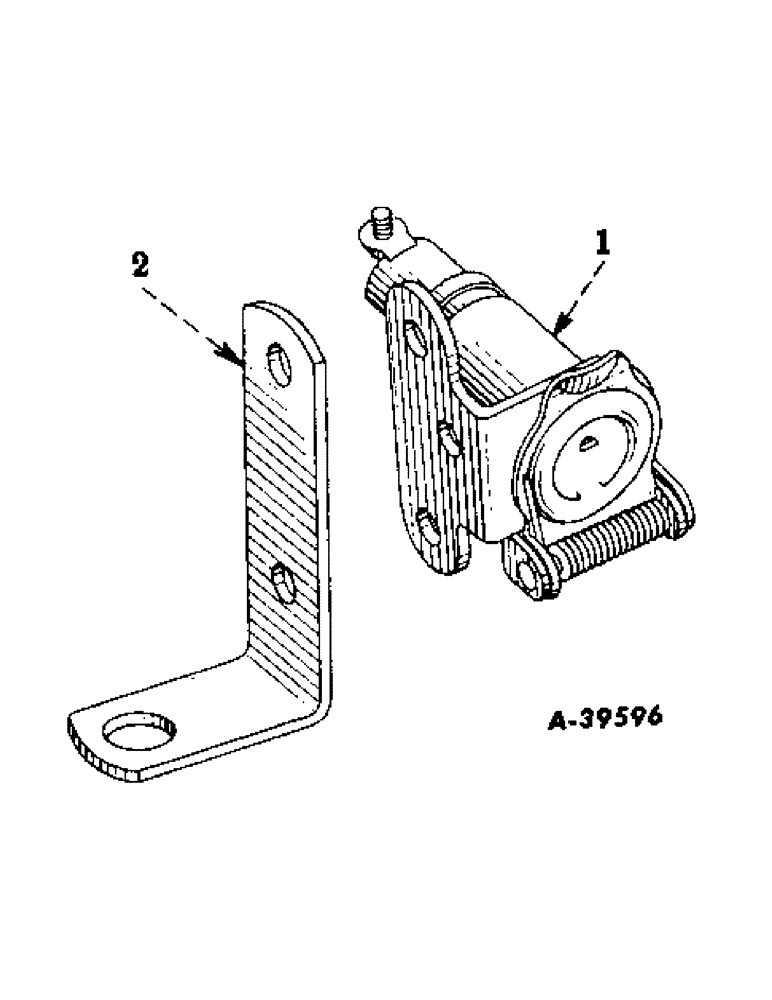

Запчасти Case IH 230 (127) - ELECTRICAL SYSTEM, ELECTRICAL BREAK-AWAY CONNECTOR SOCKET, 6 VOLT, SPECIAL (06) - ELECTRICAL SYSTEMS

363923R91

PACKAGE, electrical break-away connector socket (for tractors equipped with lighting and starting safety light package, 363914R91) (consists of parts listed in this unit except as noted)

1шт.

1

362002R92

SOCKET

electrical break-away connector, w/cap, two screws and spring

1шт.

114378

NUT, hex., 1/4-20NC

2шт.

120572

SCREW, mach., slotted-truss-hd., 1/4-20NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

2

364004R1

BRACKET, break-away connector socket mounting

1шт.

103026

NUT,3/8"-24, G5

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-1/2"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

NSS

NOT SOLD SEPARAT

CABLE, break-away connector socket to rear light (order cable, 358572R92, terminal, (no. 10) and sleeve, 364003R1)

1шт.

364003R1

SLEEVE, terminal insulating

1шт.

NSS

NOT SOLD SEPARAT

TERMINAL, electrical, type B, brs., no. 10

1шт.

NSS

NOT SOLD SEPARAT

CABLE, break-away connector socket to ground terminal (order cable 358572R92, terminal (7/16") and sleeve, 364003R1)

1шт.

364003R1

SLEEVE, terminal insulating

1шт.

NSS

NOT SOLD SEPARAT

TERMINAL, electrical, type B, brs., 7/16"

1шт.

358572R92

CABLE, w/2 sleeves and terminals (to make two break-away connector socket cables from this cable, measure and cut length needed for each cable from each end terminal, then assemble 1 sleeve, 364003R1 and 1 terminal (no. 10 or 7/16") to complete each cable

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

These parts are not required for use on Farmall 200 and 230 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

120575

SCREW, machine, slotted-truss-hd., 1/4-20NC x 1-1/2"

2шт.

These parts are not required for use on Farmall 200 and 230 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

1шт.

These parts are not required for use on Farmall 200 and 230 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

NLS

NO LONGER SERVICED

1шт.

These parts are not required for use on Farmall 200 and 230 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

179873

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

1шт.

These parts are not required for use on Farmall 200 and 230 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

61401V

SPACER, break-away connector socket

2шт.

These parts are not required for use on Farmall 200 and 230 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

364002R1

SPACER,3/8" Pipe x 1"

socket mounting bracket (1" long)

1шт.

These parts are not required for use on Farmall 200 and 230 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

364171R1

BRACKET

SPACER, socket mounting bracket (9/16" long)

1шт.

These parts are not required for use on Farmall 200 and 230 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

NSS

NOT SOLD SEPARAT

TERMINAL, electrical type B, brs., no. 10

1шт.

These parts are not required for use on Farmall 200 and 230 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

These parts are not required for use on Farmall 200 and 230 tractors but are supplied in the break-away connector socket package that is also available for other tractors.

1шт.
