Запчасти Case IH 230 (106) - ELECTRICAL SYSTEM, SAFETY LIGHT, EXTENSION CABLE AND SUPPORTS, SPECIAL (06) - ELECTRICAL SYSTEMS

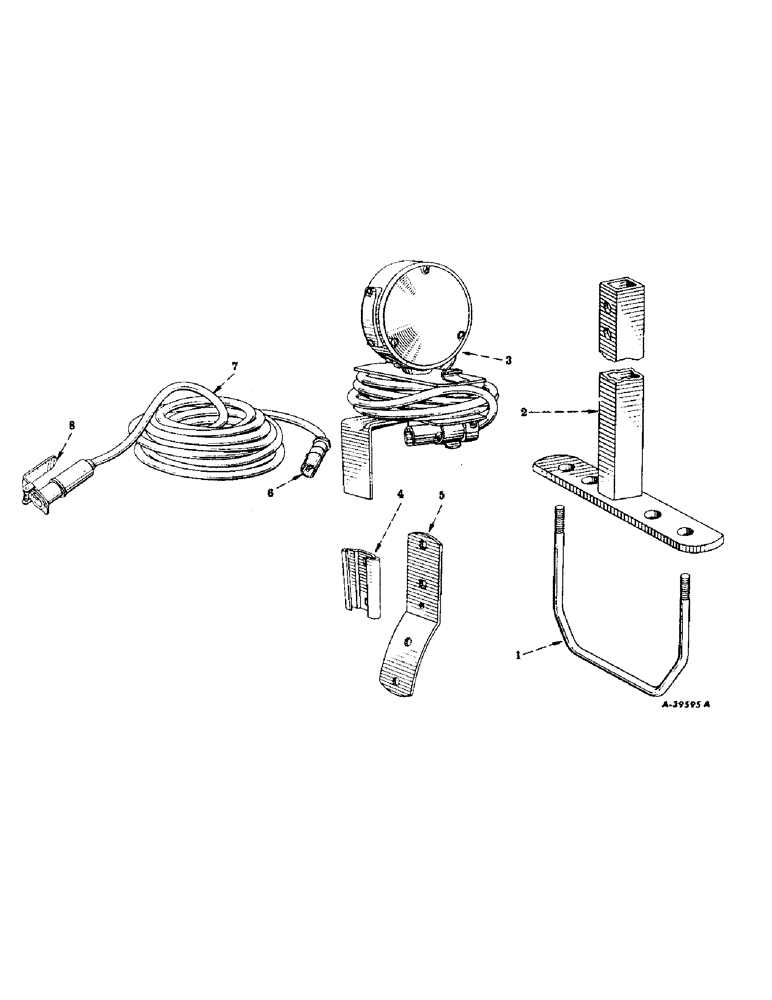

Схема запчастей Case IH 230 - (106) - ELECTRICAL SYSTEM, SAFETY LIGHT, EXTENSION CABLE AND SUPPORTS, SPECIAL (06) - ELECTRICAL SYSTEMS
2
8
3
7
4
1
6
5

Артикул

Название

Примечание

Количество

363914R91

PACKAGE, safety light (6 volt) (for tractors equipped with electrical break-away connector socket 363923R91)

1шт.

NSS

NOT SOLD SEPARAT

Consists of all the parts listed below, as noted

1шт.

1

364291R1

BOLT, "U" safety lamp support

1шт.

These additional parts are not included in the safety light package but are necessary to mount the safety light on tractors not equipped with fenders.

1шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NC

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

364290R11

SUPPORT, safety lamp

1шт.

These additional parts are not included in the safety light package but are necessary to mount the safety light on tractors not equipped with fenders.

1шт.

27480R1

CARRIAGE BOLT,5/16" x 2", Gr 5

BOLT, carriage, short sq-neck., 5-16-18NC x 2"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

These additional parts are not included in the safety light package but are necessary to mount the safety light on tractors not equipped with fenders.

1шт.

3

367813R91

LIGHT, safety, assembly (6 volt) (for components see list of parts under details of "safety light")

1шт.

4

363919R1

SOCKET

safety light bracket

1шт.

14990R1

BOLT

carriage, sq-nk., 5-16-18NC x 5/8"

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

363920R1

BRACKET, safety light

1шт.

120376

NUT,5/16"-18, G5

2шт.

142849

SCREW, machine, slotted-truss-hd., cd-pltd., 5/16-18NC x 1-1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

364559R91

PLUG

break-away connector socket (for used with 21/64" O.D. cable) (used with the extension cable)

1шт.

These parts are not included in the safety light package.

1шт.

7

365444R91

CABLE, extension, twenty-four ft., w/plug, 364559R91 and socket, 365446R91) (special) (for tractors equipped with electrical break-away connector socket)

1шт.

These parts are not included in the safety light package.

1шт.

8

365446R91

SOCKET/RECEPTACLE

SOCKET, break-away connector, w/cap, cover and spring (used with the extension cable)

1шт.

These parts are not included in the safety light package.

1шт.

Выбрано товаров: 27
