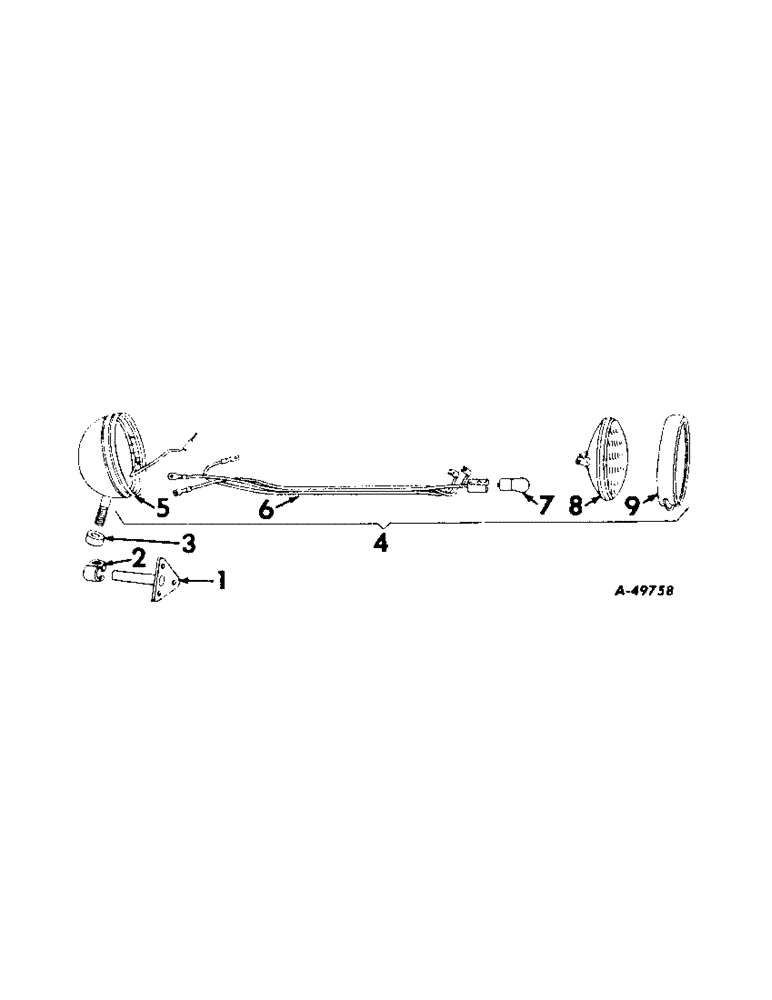

Запчасти Case IH 230 (103) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL SYSTEMS

1

66724DB

POST, assembly, rear lamp

1шт.

371367R91, parts accessory, combination rear light and tail light (International 240)

1шт.

2

350920R1

CLAMP

rear lamp

1шт.

371367R91, parts accessory, combination rear light and tail light (International 240)

1шт.

3

365503R1

SPACER

rear lamp

1шт.

371367R91, parts accessory, combination rear light and tail light (International 240)

1шт.

4

374215R91

LAMP

REAR LIGHT AND TAIL LIGHT, combination, assembly (sealed beam- Dietz) (optional with 374883R91)

1шт.

371379R1, parts accessory, combination rear light and tail light (Farmall 240)

1шт.

4

374883R91

LAMP

REAR LIGHT AND TAIL LIGHT, combination, assembly (sealed beam- Guide) (optional with 374215R91)

1шт.

371379R1, parts accessory, combination rear light and tail light (Farmall 240)

1шт.

4

374213R91

LAMP

REAR LIGHT AND TAIL LIGHT, combination, assembly (sealed beam- Dietz) (optional with 374881R91)

1шт.

371367R91, parts accessory, combination rear light and tail light (International 240)

1шт.

4

374881R91

LAMP

REAR LIGHT AND TAIL LIGHT, combination, assembly (sealed beam- Guide) (optional with 374213R91), Includes: Ref. 5

1шт.

371367R91, parts accessory, combination rear light and tail light (International 240)

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

NSS

NOT SOLD SEPARAT

BODY, rear light (not serviced separately - order - light, assembly)

1шт.

6

371459R91

WIRE, assembly (Dietz)

1шт.

371367R91, parts accessory, combination rear light and tail light (International 240)

1шт.

6

374885R91

WIRE, assembly (Guide)

1шт.

371367R91, parts accessory, combination rear light and tail light (International 240)

1шт.

6

371460R91

WIRE, assembly (Dietz)

1шт.

371379R1, parts accessory, combination rear light and tail light (Farmall 240)

1шт.

6

374886R91

WIRE, assembly (Guide)

1шт.

371379R1, parts accessory, combination rear light and tail light (Farmall 240)

1шт.

7

454493

LAMP, no. 209 (6 volt) #209, Type C-6, 6V

1шт.

8

371458R91

SEALED BEAM UNIT

UNIT, sealed beam

1шт.

9

371450R91

BEZEL

MOULDING, assembly (Dietz)

1шт.

365697R1

NUT, clamp screw moulding

1шт.

132489

SCREW, machine, slt-fil-hd. no. 8-32NC x 1-1/4"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

9

371451R91

MOLDING

MOULDING, assembly (Guide)

1шт.

53526D

SCREW

moulding

1шт.

371368R91

PARTS ACCESSORY, rear light

1шт.
