Запчасти Case IH 200 (088) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

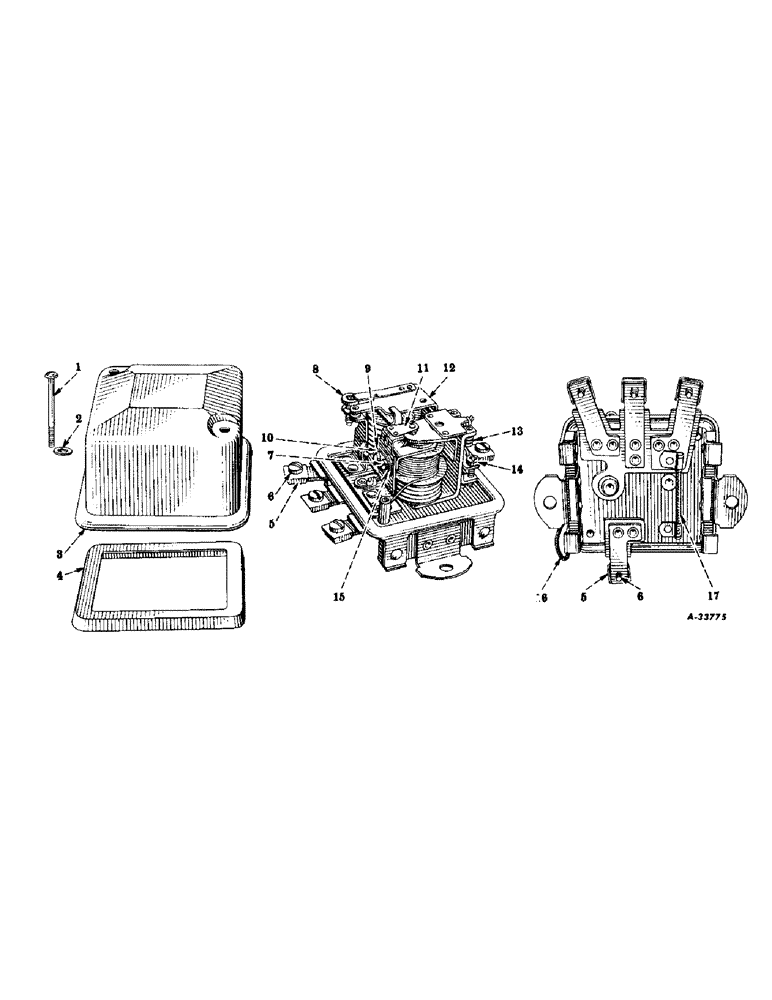

Схема запчастей Case IH 200 - (088) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS
16
5
5
15
12
14
2
3
8
9
6
10
7
6
1
17
11
4
13

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

SCREW, cover attaching (Mfr. 1927982)

2шт.

2

NSS

NOT SOLD SEPARAT

WASHER, insulating cover attaching screw (Mfr. 1922996)

2шт.

3

NSS

NOT SOLD SEPARAT

COVER (Mfr. 1927980)

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET, cover (Mfr. 1927981)

1шт.

5

NSS

NOT SOLD SEPARAT

CLAMP, terminal (Mfr. 1868137)

4шт.

6

NSS

NOT SOLD SEPARAT

SCREW, terminal (Mfr. 1864099)

4шт.

7

NSS

NOT SOLD SEPARAT

SCREW, current-voltage regulator contract attaching (Mfr. 1878516)

2шт.

8

NSS

NOT SOLD SEPARAT

SCREW, adjusting cut-out relay armature (Mfr. 1912159)

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER, current-voltage insulating, regulator contract attaching screw (Mfr. 1878507)

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER, lock, current-voltage regulator contract attaching screw (Mfr. 1878505)

1шт.

11

NSS

NOT SOLD SEPARAT

CONTACT AND SUPPORT, current-voltage regulator (Mfr. 1878517)

1шт.

12

NSS

NOT SOLD SEPARAT

ARMATURE, cut-out relay (Mfr. 1878780)

1шт.

NSS

NOT SOLD SEPARAT

SCREW, cut-out relay armature (Mfr. 454431)

2шт.

NSS

NOT SOLD SEPARAT

WASHER, lock, cut-out relay armature attaching screw (Mfr. 1904377)

2шт.

13

NSS

NOT SOLD SEPARAT

SPRING, current-voltage regulator armature (Mfr. 1912176)

1шт.

14

NSS

NOT SOLD SEPARAT

SCREW, current-voltage regulator armature adjusting (Mfr. 1922408)

1шт.

15

NSS

NOT SOLD SEPARAT

INSULATOR, current-voltage regulator contact attaching screw (Mfr. 1922599)

1шт.

16

NSS

NOT SOLD SEPARAT

LEAD, ground (Mfr. 1927975)

1шт.

17

NSS

NOT SOLD SEPARAT

RESISTOR, "F" terminal to ground (Mfr. 1910183)

1шт.

Выбрано товаров: 19
