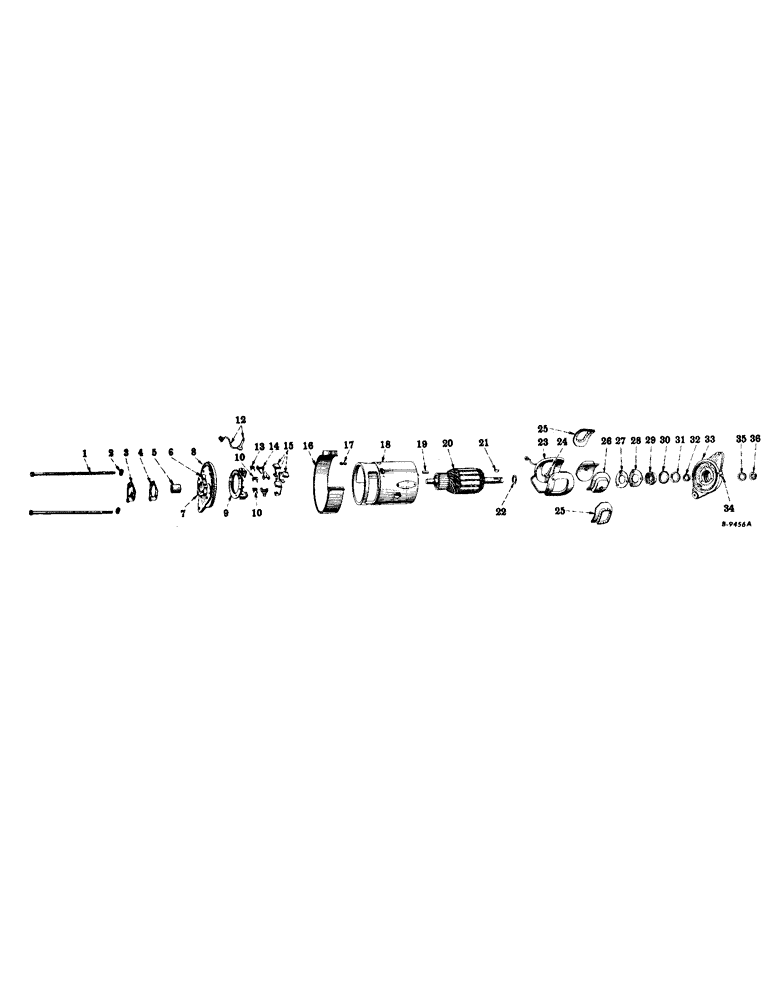

Запчасти Case IH 200 (083) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
NSS
NOT SOLD SEPARAT
BOLT, thru (Mfr. 815018)
2шт.
2
NSS
NOT SOLD SEPARAT
WASHER, lock, heavy, cd-pltd., 5/16" (Mfr. 120638)
2шт.
3
NSS
NOT SOLD SEPARAT
PLATE, cover, commutator end frame (Mfr. 820524)
1шт.
NSS
NOT SOLD SEPARAT
SCREW, commutator end frame cover plate (Mfr. 1886496)
3шт.
NSS
NOT SOLD SEPARAT
WASHER, lock, medium, no. 8 (Mfr. 106496)
3шт.
4
NSS
NOT SOLD SEPARAT
GASKET, commutator end frame cover plate (Mfr. 817220)
1шт.
5
NSS
NOT SOLD SEPARAT
BUSHING, commutator end (Mfr. 812823)
1шт.
6
NSS
NOT SOLD SEPARAT
OILER, commutator end, w/cap and spring (Mfr. 1880635)
1шт.
NSS
NOT SOLD SEPARAT
WICK, commutator end oiler (Mfr. 804076)
1шт.
7
NSS
NOT SOLD SEPARAT
PLUG, commutator end oiler wick (Mfr. 816315)
1шт.
8
NSS
NOT SOLD SEPARAT
FRAME, commutator end, assembly (composed of (1) bushing 812823, (1) frame (NSS), (1) oiler 1880635, (1) pin 809062, (1) plug 1911097, (1) wick 804076) (Mfr. 1913564)
1шт.
9
NSS
NOT SOLD SEPARAT
PLATE, brush, w/three brush holders (Mfr. 1913565)
1шт.
362657R91 (Mfr. 1100531) Generator, assembly (6 volt) (Farmall 200 and 230) (shaft 1-1/4")
1шт.
9
NSS
NOT SOLD SEPARAT
PLATE, brush, w/three brush holders (Mfr. 1913737)
1шт.
354237R91 (Mfr. 1100501) Generator, assembly (6 volt) (Farmall 200) (shaft 1-3/4")
1шт.
NSS
NOT SOLD SEPARAT
SCREW, brush plate attaching (Mfr. 1886496)
3шт.
NSS
NOT SOLD SEPARAT
WASHER, lock, brush plate attaching screw (Mfr. 106496)
3шт.
10
NSS
NOT SOLD SEPARAT
SPRING, brush main (Mfr. 1850760)
2шт.
12
NSS
NOT SOLD SEPARAT
POLE, armature terminal (includes lead, stud, 1858751 and terminal) (Mfr. 1858754)
1шт.
NSS
NOT SOLD SEPARAT
BUSHING, insulating, terminal stud (Mfr. 1885090)
1шт.
NSS
NOT SOLD SEPARAT
NUT, hex., cd-pltd., no. 12-24NC (Mfr. 121743)
2шт.
NSS
NOT SOLD SEPARAT
STUD, armature terminal (Mfr. 1858751)
1шт.
NSS
NOT SOLD SEPARAT
WASHER, lock, terminal stud (Mfr. 1904661)
2шт.
NSS
NOT SOLD SEPARAT
WASHER, terminal stud (Mfr. 1881409)
1шт.
NSS
NOT SOLD SEPARAT
WASHER, insulating, terminal stud (Mfr. 1858753)
1шт.
13
NSS
NOT SOLD SEPARAT
SPRING, brush, third (Mfr. 1850767)
1шт.
14
NSS
NOT SOLD SEPARAT
HOLDER, brush (Mfr. 1850759)
3шт.
NSS
NOT SOLD SEPARAT
WASHER, plain, brush holder space (Mfr. 1857412)
3шт.
15
NSS
NOT SOLD SEPARAT
BRUSH, package (consists of three brushes) (Mfr. 1933194)
1шт.
NSS
NOT SOLD SEPARAT
SCREW, slotated-rd-hd., cd-pltd., no. 6-32NC x 1/4" (Mfr. 132688)
3шт.
NSS
NOT SOLD SEPARAT
WASHER, lock, brush lead attaching screw (Mfr. 1904377)
3шт.
16
NSS
NOT SOLD SEPARAT
BAND, cover, w/nut, 120614 and screw, 132930 (Mfr. 1872638)
1шт.
NSS
NOT SOLD SEPARAT
SCREW, mach., slotted-rd-hd., cd-pltd., no. 10-32NF x 1-1/2" (Mfr. 132930)
1шт.
NSS
NOT SOLD SEPARAT
NUT, hex., cd-pltd., no. 10-32NF (Mfr. 120614)
1шт.
17
NSS
NOT SOLD SEPARAT
PIN, dowel, commutator end frame (Mfr. 809062)
1шт.
18
NSS
NOT SOLD SEPARAT
FRAME (not serviced separately)
1шт.
19
NSS
NOT SOLD SEPARAT
PIN, dowel, drive end frame (Mfr. 809593)
1шт.
20
NSS
NOT SOLD SEPARAT
ARMATURE (Mfr. 1913560)
1шт.
354237R91 (Mfr. 1100501) Generator, assembly (6 volt) (Farmall 200) (shaft 1-3/4")
1шт.
20
NSS
NOT SOLD SEPARAT
ARMATURE (Mfr. 192351)
1шт.
362657R91 (Mfr. 1100531) Generator, assembly (6 volt) (Farmall 200 and 230) (shaft 1-1/4")
1шт.
21
NSS
NOT SOLD SEPARAT
KEY, woodruff, alloy-stl., no. 5 (drive end) (Mfr. 124545)
1шт.
22
NSS
NOT SOLD SEPARAT
WASHER, space, drive end (Mfr. 809945)
1шт.
23
NSS
NOT SOLD SEPARAT
COIL SET, field, w/insulator, 1914491 stud, 1858751 and terminal (Mfr. 1913554)
1шт.
24
NSS
NOT SOLD SEPARAT
STUD, field terminal (Mfr. 1858751)
1шт.
NSS
NOT SOLD SEPARAT
BUSHING, insulating, terminal stud (Mfr. 1885090)
1шт.
NSS
NOT SOLD SEPARAT
NUT, hex., cd-pltd., no. 12-24NC (Mfr. 121743)
2шт.
NSS
NOT SOLD SEPARAT
WASHER, lock, terminal stud (Mfr. 1904661)
2шт.
NSS
NOT SOLD SEPARAT
WASHER, terminal stud (Mfr. 1881409)
1шт.
NSS
NOT SOLD SEPARAT
WASHER, insulating, terminal stud (Mfr. 1858753)
1шт.
25
NSS
NOT SOLD SEPARAT
INSULATOR, field coil (Mfr. 1914491)
2шт.
26
NSS
NOT SOLD SEPARAT
SHOE, pole (Mfr. 1914618)
2шт.
NSS
NOT SOLD SEPARAT
SCREW, pole shoe (Mfr. 1843646)
2шт.
27
NSS
NOT SOLD SEPARAT
PLATE, ball bearing retainer (Mfr. 1911263)
1шт.
NSS
NOT SOLD SEPARAT
SCREW, bearing retainer plate (Mfr. 1904370)
3шт.
NSS
NOT SOLD SEPARAT
WASHER, lock, bearing, retainer plate screw (Mfr. 802731)
3шт.
28
NSS
NOT SOLD SEPARAT
GASKET, ball bearing retainer plate (Mfr. 1912008)
1шт.
29
NSS
NOT SOLD SEPARAT
BEARING, ball (drive end) (Mfr. 954378)
1шт.
30
NSS
NOT SOLD SEPARAT
RETAINER, drive end felt washer (Mfr. 819104)
1шт.
31
NSS
NOT SOLD SEPARAT
WASHER, felt, drive end (Mfr. 809961)
1шт.
32
NSS
NOT SOLD SEPARAT
SPACER, pulley (Mfr. 817224)
1шт.
33
NSS
NOT SOLD SEPARAT
FRAME, drive end, w/oiler, 1880641 (Mfr. 1873830)
1шт.
34
NSS
NOT SOLD SEPARAT
OILER, drive end bearing, w/cap and spring (Mfr. 1880641)
1шт.
35
NSS
NOT SOLD SEPARAT
WASHER, lock, drive end shaft nut (Mfr. 80400)
1шт.
36
NSS
NOT SOLD SEPARAT
NUT, drive end shaft (Mfr. 1914308)
1шт.
354237R91 (Mfr. 1100501) Generator, assembly (6 volt) (Farmall 200) (shaft 1-3/4")
1шт.
36
NSS
NOT SOLD SEPARAT
NUT, drive end shaft (Mfr. 806915)
1шт.
362657R91 (Mfr. 1100531) Generator, assembly (6 volt) (Farmall 200 and 230) (shaft 1-1/4")
1шт.
Выбрано товаров: 68
