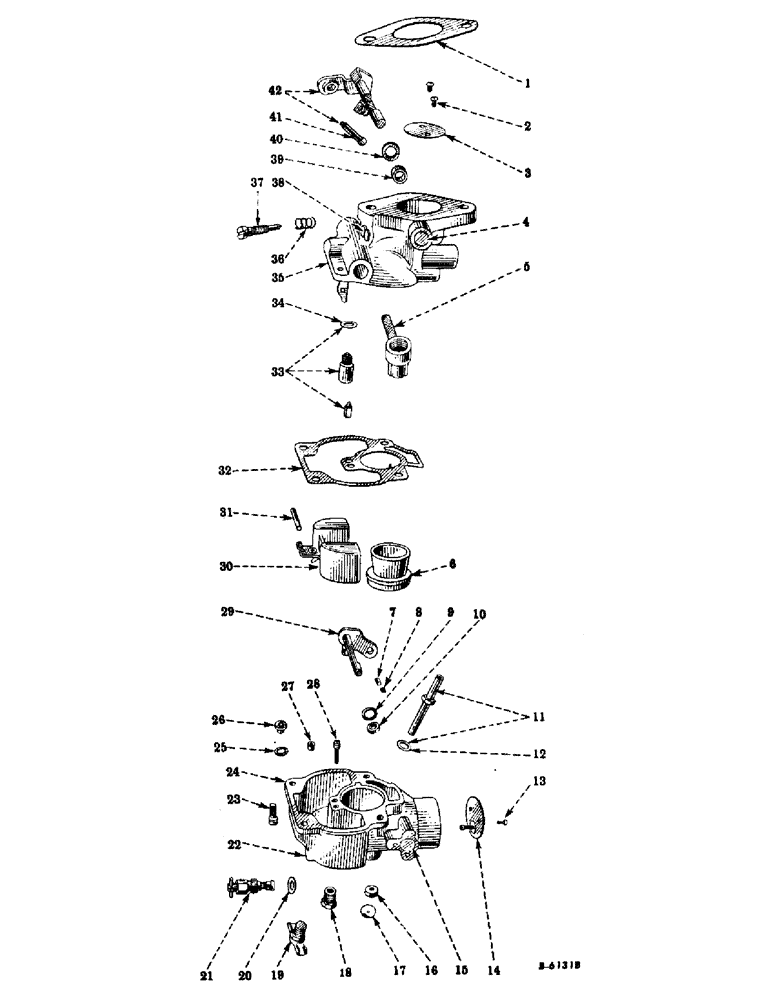

Запчасти Case IH 200 (041) - ENGINE, CARBURETOR, CARTER (01) - ENGINE

362385R91

CARBURETOR

assembly (gasoline) (order 373962R91), C-123, Serial Range: 501-36000

1шт.

356902R92

CARBURETOR

assembly (distillate or kerosene) (order 373961R91) C-123, Serial Range: 501-65000

1шт.

1

24520D

GASKET

carburetor (not part of carburetor, assembly)

1шт.

2

88962R1

SCREW

throttle valve plate

2шт.

3

354804R1

PLATE, throttle valve

1шт.

4

354817R1

PLUG, expansion

1шт.

5

354827R91

ELBOW

w/strainer

1шт.

6

355707R1

VENTURI (no. 19) (gasoline)

1шт.

6

354820R1

VENTURI (no. 21) (distillate or kerosene)

1шт.

7

354826R1

PIN, choke lever lock pin

1шт.

8

354821R1

SPRING

choke lever shaft dust seal retainer

1шт.

9

354825R1

WASHER

choke lever shaft dust seal retainer

1шт.

10

354829R1

SEAL

dust, choke lever shaft

1шт.

11

356701R91

NOZZLE INJECTION

NOZZLE, w/gasket, 88976R1 (gasoline)

1шт.

11

355718R91

NOZZLE INJECTION

NOZZLE, w/gasket, 88976R1(distillate or kerosene)

1шт.

12

88976R1

GASKET

nozzle

1шт.

13

88962R1

SCREW

choke valve plate

2шт.

14

354806R91

PLATE, choke valve

1шт.

15

354817R1

PLUG, expansion (aluminum)

1шт.

16

354830R1

PLUG

SEAL, felt, air horn

1шт.

17

354824R1

WASHER, retainer air horn dust seal

1шт.

18

354808R1

PLUG

drain (gasoline)

1шт.

19

354818R91

COCK, drain (distillate or kerosene)

1шт.

20

354815R1

GASKET

main jet adjusting needle valve (distillate or kerosene)

1шт.

21

357125R91

VALVE, needle, main jet adjustment, w/seal, 354831R1 (distillate or kerosene)

1шт.

22

68456R1

RIVET, main gas passage plug (gasoline)

1шт.

23

88963R91

SCREW, attaching, w/washer

4шт.

24

NSS

NOT SOLD SEPARAT

BOWL, fuel (NSS) (order carburetor, complete)

1шт.

25

68462R1

GASKET

main metering jet (gasoline)

1шт.

26

362453R91

JET, main metering, w/gasket, 68462R1 (gasoline)

1шт.

27

362454R1

PLUG, screw (nozzle bleed) (gasoline)

1шт.

27

354809R1

PLUG, screw (nozzle bleed) (distillate or kerosene)

1шт.

28

355719R91

JET, low speed

1шт.

29

354812R91

LEVER

SHAFT, choke, w/lever

1шт.

30

354813R91

FLOAT

1шт.

31

354814R1

PIN

float lever

1шт.

32

354823R1

GASKET

body

1шт.

33

88977R91

VALVE

needle, w/seat and gasket, 88976R1

1шт.

34

88976R1

GASKET

needle valve seat

1шт.

35

354833R91

BODY

throttle, assembly (composed of (1) body (NSS), (1) plate 354804R1, (1) plug 354817R1, (1) rivet 68489R1, (2) rivet 354807R1, (1) seal 354829R1, (2) screw 88962R1, (1) shaft 354805R91, (1) washer 354825R1)

1шт.

9635082

NUT,5/16" - 18, Gr 5

(Distillate or kerosene) 5/16"-18, G5

2шт.

These parts are not included with the carbruetor assembly.

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

(Gasoline), C-123, 501 to 36000 Hex, 5/16"-18 x 7/8", G5, Full Thd

2шт.

These parts are not included with the carbruetor assembly.

1шт.

G8603

STUD, carburetor (illustrated with "manifold") (distillate or kerosene)

2шт.

These parts are not included with the carbruetor assembly.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

These parts are not included with the carbruetor assembly.

1шт.

36

68472R1

SPRING, idle adjusting needle valve

1шт.

37

68469R1

ADJUSTMENT SCREW

VALVE, needle, idle adjusting

1шт.

38

68459R1

RIVET, idle passage plug

1шт.

39

354829R1

SEAL

dust, throttle shaft

1шт.

40

354825R1

WASHER

throttle shaft dust seal retainer

1шт.

41

354822R1

SCREW, throttle adjusting

1шт.

42

354805R92

SHAFT, throttle, w/lever and screw, 354822R1

1шт.

354807R1

RIVET, balance passage plug

2шт.

68457R1

RIVET, idle gas passage plug

1шт.

354831R1

SEAL, adjusting needle valve (distillate or kerosene)

1шт.
