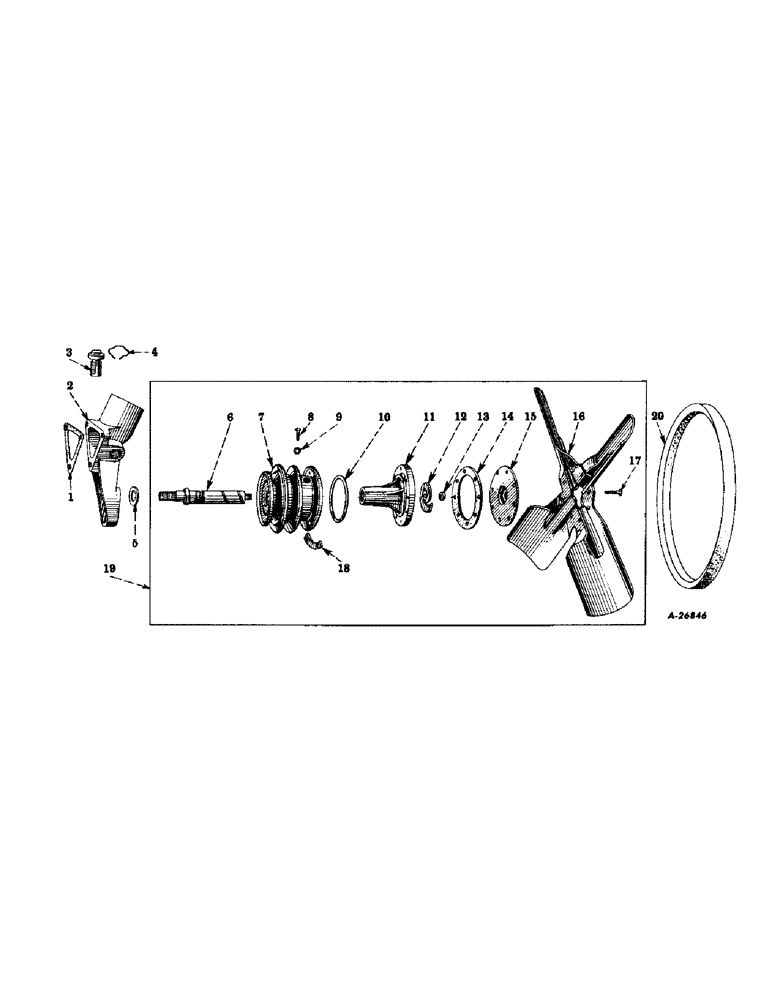

Запчасти Case IH 200 (029) - ENGINE, FAN, C-123, 501 TO 65000 (01) - ENGINE

1

43294D

GASKET

fan bracket

1шт.

2

257353R2

BRACKET, fan and water outlet

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. (Not used on tractors equipped with heat indicator) Sq Hd, 1/2"-14 NPTF

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

2шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

257440R91

THERMOSTAT

(165 deg. - 195 deg.)

1шт.

3

361818R91

THERMOSTAT (130 deg. to 155 deg.) (for use with low boiling point anti-freeze. It is recommended that the 165 deg. to 195 deg. degree thermostat - and 170 deg. to 220 deg. degree heat indicator

1шт.

4

257441R2

SEGMENT

RING, thermostat retainer

1шт.

5

43293D

WASHER

fan shaft

1шт.

6

NSS

NOT SOLD SEPARAT

SPINDLE, fan (order 251647R91 - see reference No. 11)

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

7

357004R91

HUB CAP

HUD, assembly (composed of (1) gasket 70200D, (1) gasket 70207D, (1) gasket 70208D, (1) hub (NSS), (1) screw 70206D)

1шт.

8

70206D

SCREW, oil retaining

1шт.

9

70208D

GASKET

oil retaining screw

1шт.

10

70207D

GASKET

fan hub

1шт.

11

251647R91

SPINDLE AND BEARING, assembly (composed of (1) bearing (NSS) (1) cap 70204D, (1) gasket 70200D, (1) gasket 70207D, (1) impeller (NSS), (1) nut 70209D, (1) spindle (NSS)

1шт.

12

NSS

NOT SOLD SEPARAT

IMPELLER, oil (order 251647R91 - see reference no 11)

1шт.

13

70209D

NUT

lock

1шт.

14

70200D

GASKET

fan bearing

1шт.

15

70204D

CAP

fan bearing

1шт.

16

70214D

FAN

1шт.

17

70202D

SCREW, cap

8шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

8шт.

18

70203D

NUT, double

4шт.

19

356844R91

FAN

AND HUB, assembly (composed of (1) fan 70214D, (1) hub, assembly 357004R91, (4) nut 70203D, (8) screw 70202D, (1) spindle and bearing 251647R91, (8) washer 106498)

1шт.

20

60712D

V-BELT,0.66" W x 35.38" L

Fan (Regular duty) 0.66" W x 35.38" L

1шт.

20

368084R1

BELT

fan (cog type) (heavy duty)

1шт.
