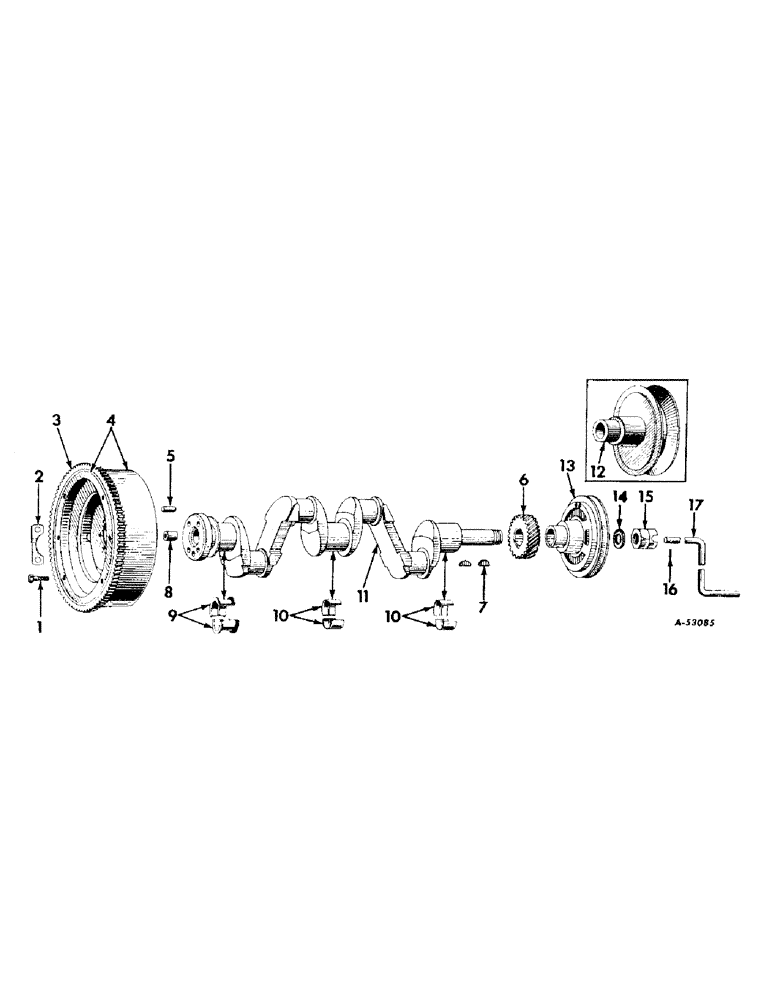

Запчасти Case IH 200 (021) - ENGINE, CRANKSAFT AND RELATED PARTS, AND STARTING CRANK (01) - ENGINE

1

29951D

BOLT, flywheel

4шт.

2

46349D

LOCK

flywheel bolt

2шт.

3

55755DB

SLEWING RING

GEAR, ring, flywheel (90 teeth)

1шт.

4

351217R12

FLYWHEEL

w/ring gear, 55755DB

1шт.

5

24550D

PIN

dowel, flywheel

1шт.

6

46870DA

PINION

crankshaft (33 teeth)

1шт.

7

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

KEY, woodruff (no. 91)

2шт.

8

43291D

BUSHING

clutch pilot (optional with 364527R1)

1шт.

8

364527R1

BUSHING

clutch pilot (optional with 43291D)

1шт.

9

360221R11

BEARING

crankshaft, rear (2 halves) (tri-metal type)

1шт.

9

360223R11

CRANKSHAFT BEARING

crankshaft, rear (2 halves) (.002" undersize) (tri-metal type)

1шт.

9

360224R11

BEARING, crankshaft, rear (2 halves) (.003" undersize) (tri-metal type)

1шт.

9

360222R11

CRANKSHAFT BEARING

crankshaft, rear (2 halves) (.030" undersize) (tri-metal type)

1шт.

9

360225R11

BEARING, crankshaft, rear (2 halves) (.032" undersize) (tri-metal type)

1шт.

10

360216R11

CRANKSHAFT BEARING

BEARING, crankshaft, front & center (2 halves) (standard) (tri-metal type)

2шт.

10

360218R11

BEARING SET

crankshaft, front & center (2 halves) (.002" undersize) (tri-metal type)

2шт.

10

360219R11

BEARING, crankshaft, front & center (2 halves) (.003" undersize) (tri-metal type)

2шт.

10

360217R11

CRANKSHAFT BEARING

crankshaft, front & center (2 halves) (.030" undersize) (tri-metal type)

2шт.

10

360220R11

BEARING, crankshaft, front & center (2 halves) (.032" undersize) (tri-metal type)

2шт.

11

368714R91

CRANKSHAFT, w/bearings, assembly (standard), C-123, 65001 up (composed of (4) bearing 356304R11, (1) bushing 43291D, (1) bearing 360216R11, (1) crankshaft 368711R1 (NSS), (2) bearing 360221R11, (1) pin 24550D)

1шт.

11

360296R91

CRANKSHAFT, w/bearing, assembly (standard), C-123, 501 to 65000 (composed of (4) bearing 356304R11, (1) bushing 43291D, (1) bearing 360221R11, (1) crankshaft 356308R11 (NSS), (2) bearing 36219R11, (1) pin 24550D)

1шт.

11

368716R91

CRANKSHAFT, w/bearing, assembly (.030" undersize), C-123, 65001 up (composed of (4) bearing 356305R11, (1) bushing 43291D, (1) bearing 36022R11, (1) crankshaft 368712R1 (NSS), (2) bearing 43291D, (1) pin 24550D)

1шт.

11

360297R91

CRANKSHAFT, w/bearings, assembly (.030" undersize), C123, 501 to 65000 (composed of (4) bearing 356305R11, (1) bushing 43291D, (1) bearing 360222R11, (1) crankshaft 356309R11 (NSS), (2) bearing 360217R11, (1) pin 24550D)

1шт.

12

6502DB

PULLEY

fan drive, C-123, Serial Range: 501-65000

1шт.

13

368665R2

PULLEY

fan drive, C-123, 65001 up

1шт.

14

16025D

SHIM

LOCK, starting nut, C-123, 65001 up

1шт.

15

368569R1

NUT

starting (for tractors w/o front power take-off), C-123, 65001 up

1шт.

15

V84199

NUT,1"-14, Thin

crankshaft (for tractors w/front power take-off), C-123, 65001 up

1шт.

16

15204D

PIN, starting crank (used with starting crank)

1шт.

17

53385DCX

CRANK

starting, w/pin 15204D

1шт.

For tractors equipped with magneto ignition without starting and lighting system - special for all others.

1шт.

17

352496R93

CRANK, starting w/pin, 15204D (for tractors equipped with adjustable front axle) (note B), Farmall 200 and 230 series

1шт.

17

357750R11

CRANK, starting, w/bushing, 355337R1 and pin 15204D (tractors with cotton picker)

1шт.

367878R91

KIT

BEARING SET, crankshaft (standard) (tri-metal type) (consist of two bearing, 360217R11 and one bearing, 360221R11), C-123, 36001 up

1шт.

372116R91

KIT

BEARING SET, crankshaft (.030" undersize) (tri-metal type) (consist of two bearing, 360217R11 and one bearing, 360221R11)

1шт.

371568R91

PARTS ACCESSORY, front power take-off pulley (consists of pulley, 368665R2 and nut, 23174V), C-123, 65001 up

1шт.
