Запчасти Case IH 200 (369) - ATTACHMENTS, HYDRA-CREEPER, SPECIAL, HYDRAULIC MOTOR, HOSE COUPLINGS AND REMOTE CONTOL ATTACHMENT Attachments

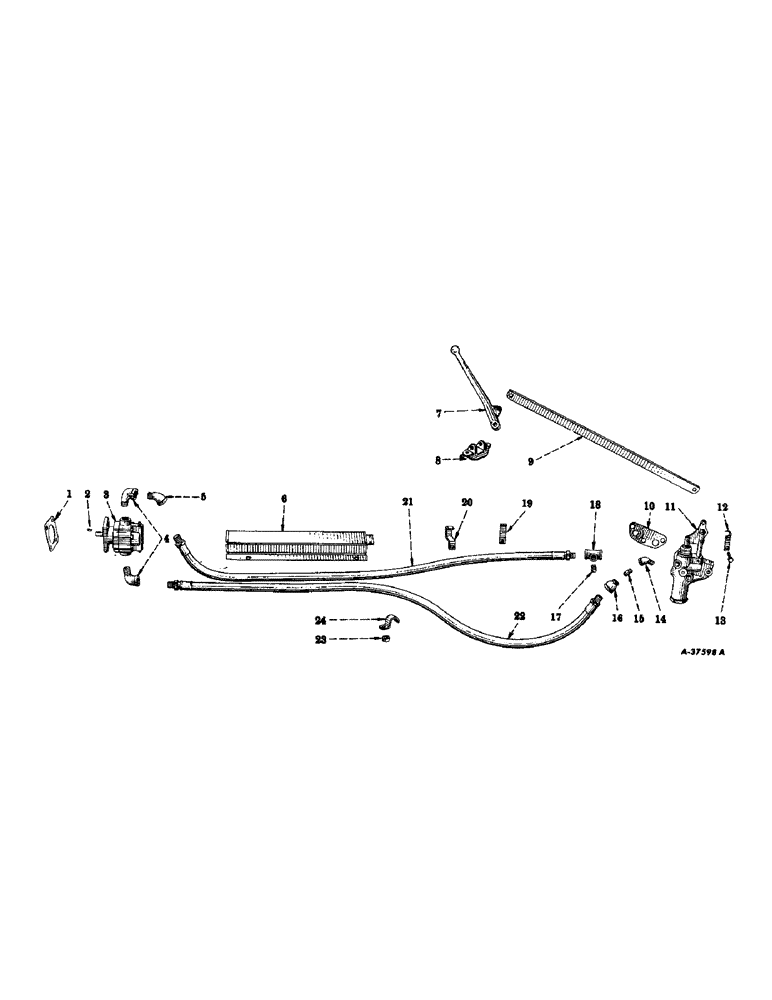

Схема запчастей Case IH 200 - (369) - ATTACHMENTS, HYDRA-CREEPER, SPECIAL, HYDRAULIC MOTOR, HOSE COUPLINGS AND REMOTE CONTOL ATTACHMENT Attachments
12
9
6
18
1
20
7
3
22
8
21
10
24
18
18
17
2
11
16
5
29
19
14

Артикул

Название

Примечание

Количество

1

362289R1

GASKET, hydraulic motor mounting (A & B only)

1шт.

2

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

(A & B only) #6, 5/32" x 5/8", HT

1шт.

3

362288R91

MOTOR, hydraulic (for components see list of parts under detail of "hydraulic motor") (A & B only)

1шт.

103026

NUT,3/8"-24, G5

(A & B only) 3/8"-24, G5

4шт.

110730

LOCK WASHER

WASHER, lock, 3/8" (A & B only)

4шт.

4

364148R1

ELBOW

street, hydraulic motor (automotive pipe, 1/2" x 90 deg.) (will work for 444484) (A & B only)

2шт.

5

444496

ELBOW, street, hydraulic motor (automotive pipe, 1/2" x 45 deg.) (A & B only)

1шт.

6

356834R1

GUARD, auxiliary control valve hose (A only)

1шт.

7

356830R4

LEVER, hydraulic auxiliary control valve emote control (A & B only)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (A only) 3/32" x 3/4"

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, rod end, dld., 3/8 x 1-25/32" (A only)

1шт.

8

356831R1

BRACKET, hydraulic auxiliary control valve lever (A only)

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

(A only) Hex, 1/4"-20 x 1 1/2", G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (A only) 1/4"

2шт.

9

360379R1

CHANNEL

LINK, hydraulic auxiliary control valve lever connecting (A & B only)

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (A & B only) 3/32" x 3/4"

1шт.

1161Y

PIN, rod end, 5/16 x 23/32" (A & B only)

1шт.

441014R1

PIN - s, 5/16" x 7/8", Slotted (A & B only) 5/16" x 7/8", Slotted

1шт.

10

356803R1

GASKET

hydraulic auxiliary control valve (A only)

1шт.

11

356788R92

VALVE, hydraulic auxiliary control (for components see list of parts under detail of "hydraulic auxiliary control valve") (A only)

1шт.

357874R2

SCREW, cap, auxiliary control valve (A only)

1шт.

179846

LEVER

hex-hd., 3/8-16 NC x 1-7/8" (A only)

2шт.

362355R3

PLUG

drain, automotive pipe, sq-socket, stl., 1/4" (will work for 50474DA) (A only)

1шт.

217-459

DRAIN PLUG,Sq Soc, 1/4" - 18 NPTF

drain, automotive pipe, hex-socket, 1/4" (A & B only)

1шт.

12

362209R1

LATCH, control valve lever (A & B only)

1шт.

13

362210R1

SCREW, cap, control valve, lever latch (A & B only)

2шт.

18411R1

NUT,#10-32, GB

control valve lever latch (A & B only)

2шт.

14

444492

ELBOW, street, hydraulic auxiliary control valve (automotive pipe, 1/4 x 45 deg.) (A & B only)

1шт.

15

192050

NIPPLE, LUBE,Nipple, 1/4" NPT x 7/8"

NIPPLE, pipe, hydraulic auxiliary control valve (1/4 x 7/8") (A & B only)

1шт.

16

179752

COUPLING, reducing pipe hydraulic auxiliary control valve (1/2 x 1/4") (A & B only)

1шт.

17

192067

LUBE NIPPLE

NIPPLE, pipe, low pressure hose (3/8 x 1") (A & B only)

1шт.

18

179616

ROD

TEE, reducing pipe, low pressure hose (1/2 x 3/8") (A & B only)

1шт.

19

356809R1

BRACKET, hose support, L.H. (for tractors equipped with one-piece battery box) (A only)

2шт.

(B only)

1шт.

20

360383R1

BRACKET, hose support, L.H. (for tractors equipped with two-piece battery box) (A only)

2шт.

(B only)

1шт.

21

362216R91

HOSE, low pressure (lift to motor) (regular duty) (will work for 362217R91 and 362218R91) (A & B only)

1шт.

21

366087R91

HOSE

low pressure (lift to motor) (heavy duty) (A & B only)

1шт.

22

362213R91

HOSE ASSY.

HOSE, hydraulic auxiliary control valve (will work for 362214R91 and 362215R91) (A & B only)

1шт.

23

356836R1

SPACER, hose bracket (A only)

1шт.

24

362290R2

BRACKET, hose support, R.H. (A & B only)

1шт.

179846

LEVER

hex-hd., 3/8-16 NC x 1-7/8" (A only)

1шт.

356784R91

SEAL

OIL SEAL, auxiliary control valve (A only)

1шт.

356779R92

HYD TUBE

TUBES, manifold (illustrated in remote control attachment) (A only)

1шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, manifold tubes flange (A only)

4шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4" (A only)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 47
