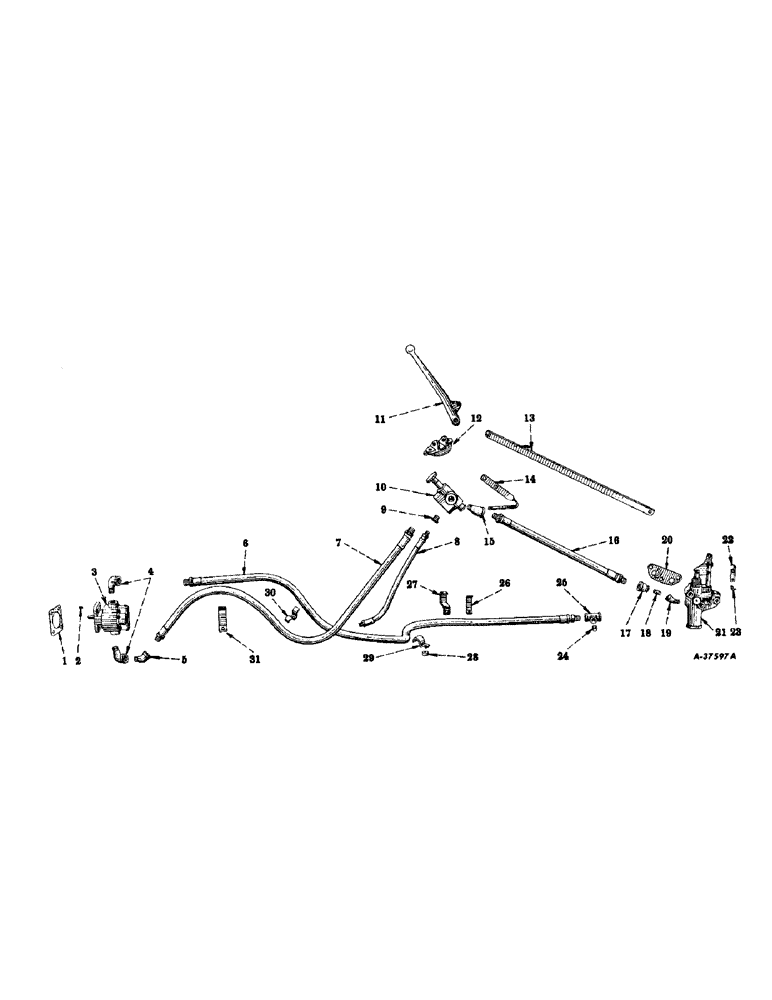

Запчасти Case IH 200 (367) - ATTACHMENTS, HYDRA-CREEPER, SPECIAL, HYDRAULIC MOTOR, HOSES AND COUPLINGS AND SELECTOR VALVE Attachments

1

362289R1

GASKET, hydraulic mounting

1шт.

2

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

3

362288R91

MOTOR, hydraulic (for components see list of parts under detail of "hydraulic motor")

1шт.

103026

NUT,3/8"-24, G5

4шт.

110730

LOCK WASHER

WASHER, lock, 3/8"

4шт.

4

364148R1

ELBOW

street, hydraulic motor (automotive pipe 1/2" x 90 deg.) (will work for 444484)

3шт.

5

444496

ELBOW, street, hydraulic motor (automotive pipe 1/2" x 45 deg.)

1шт.

6

362225R91

HOSE, hydraulic motor to reservoir (regular duty) (will work for 362226R91 and 362227R91)

1шт.

6

366088R91

HOSE

hydraulic motor to reservoir (heavy duty)

1шт.

7

362222R91

HOSE, selector to hydraulic motor (will work for 362223R91 and 362224R91)

1шт.

8

362219R91

HOSE, selector to check valve (will work for 362220R91 and 362221R91)

1шт.

9

144038

BUSHING, reducing pipe, 1/2 x 1/4" 1/2" NPT Male x 1/4" NPT Fem

1шт.

10

362211R91

VALVE, selector, assembly (for components see list of parts under detail of "selector valve")

1шт.

11

356830R4

LEVER, hydraulic auxiliary control valve remote control

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), (See note) 3/32" x 3/4"

1шт.

Not included in hydra-creeper attachment.

1шт.

52893H

CLEVIS PIN,3/8" x 1.781"

PIN, rod end, drilled, 3/8 x 1-25/32"

1шт.

Not included in hydra-creeper attachment.

1шт.

12

356831R1

BRACKET, hydraulic auxiliary control valve lever

1шт.

Not included in hydra-creeper attachment.

1шт.

179801

BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5

2шт.

Not included in hydra-creeper attachment.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Not included in hydra-creeper attachment.

1шт.

13

360379R1

CHANNEL

LINK, hydraulic auxiliary control valve lever connecting

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

1161Y

PIN, rod end, 5/16 x 23/32"

1шт.

441014R1

PIN, 5/16" x 7/8", Slotted 5/16" x 7/8", Slotted

1шт.

14

362212R1

CLIP

BRACKET, selector valve support

1шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

2шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, 3/8-24 NF x 1"

2шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

2шт.

15

364148R1

ELBOW

street, hydraulic motor (automotive pipe 1/2" x 90 deg. (will work for 444484)

3шт.

16

355496R92

HOSE, valve to selector (will work for 361760R91 and 359329R91)

1шт.

17

179752

COUPLING, reducing pipe hydraulic auxiliary control valve (1/2 x 1/4")

1шт.

18

192050

NIPPLE, LUBE,Nipple, 1/4" NPT x 7/8"

NIPPLE, pipe, hydraulic auxiliary control valve (1/4 x 7/8")

1шт.

19

444492

ELBOW, street, hydraulic auxiliary control valve (automotive pipe 1/4" x 45 deg.

1шт.

20

356803R1

GASKET

hydraulic auxiliary control valve

1шт.

Not included in hydra-creeper attachment.

1шт.

21

356788R92

VALVE, hydraulic auxiliary control (for components see list of parts under detial of "hydraulic auxiliary control valve")

1шт.

Not included in hydra-creeper attachment.

1шт.

362355R3

PLUG

drain, automotive pipe, sq-socket, stl., 1/4" (will work for 50474DA)

1шт.

Not included in hydra-creeper attachment.

1шт.

444860

KEY

drain, automotive, hex-socket, 1/4"

1шт.

Not included in hydra-creeper attachment.

1шт.

357874R2

SCREW, cap, auxiliary control valve

2шт.

Not included in hydra-creeper attachment.

1шт.

179846

LEVER

hex-hd., 3/8-16 NC x 1-7/8"

1шт.

Not included in hydra-creeper attachment.

1шт.

22

362209R1

LATCH, control valve lever

1шт.

23

362210R1

SCREW, cap, control valve lever latch

2шт.

18411R1

NUT,#10-32, GB

control valve lever latch

2шт.

24

192067

LUBE NIPPLE

NIPPLE, pipe, low pressure hose (3/8 x 1")

1шт.

25

179616

ROD

TEE, reducing pipe, low pressure hose (1/2 x 3/8)

1шт.

26

356809R1

BRACKET, hose support, L.H. (for tractors equipped with one-piece battery box)

1шт.

27

360383R1

BRACKET, hose support, L.H. (for tractors equipped with two-piece battery box)

1шт.

28

356836R1

SPACER, hose bracket

1шт.

29

362290R2

BRACKET, hose support, R.H.

1шт.

179846

LEVER

hex-hd., 3/8-16 NC x 1-7/8"

1шт.

30

362229R1

CLAMP, hose front

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28 NF

1шт.

149495

SCREW,Sl Rnd Hd, 1/4" - 28 x 1/2"

machine, slotted-rd., 1/4-28 NF x 1/2"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

31

362228R1

GUIDE, hose, rear

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, cap, hex-hd., 3/8-24 NF x 1"

1шт.
