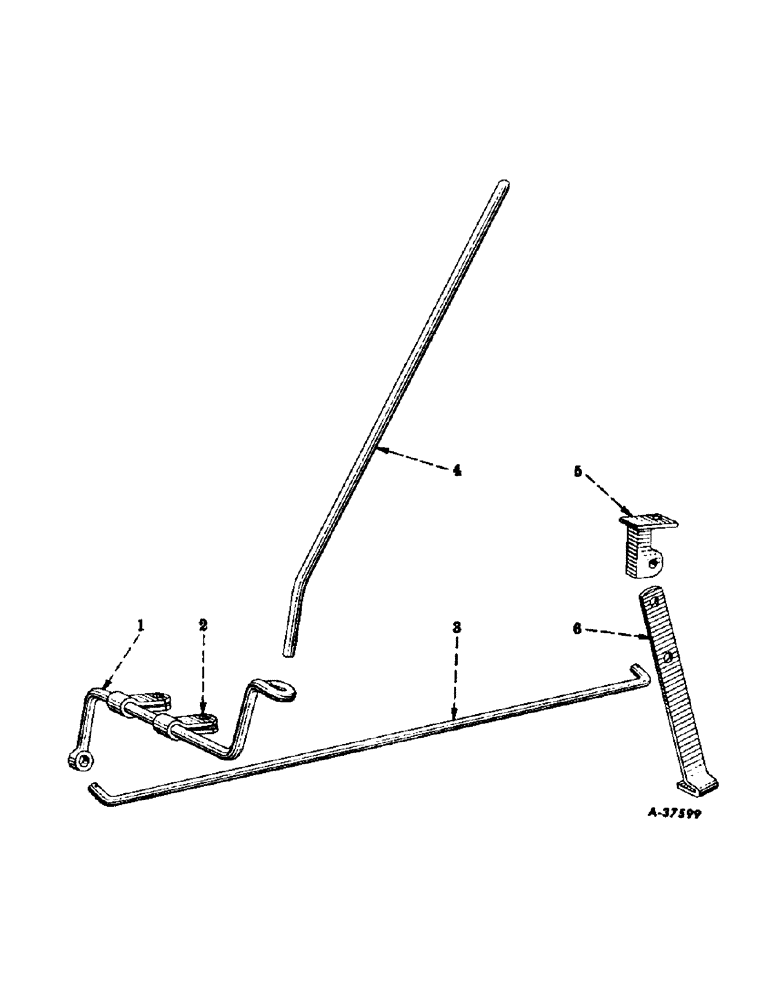

Запчасти Case IH 200 (366) - ATTACHMENTS, HYDRA-CREEPER, SPECIAL, CLUTCH INTERLOCK & POWER TAKE-OFF SHIFTER LEVER Attachments

1

362230R11

LEVER, clutch interlock

1шт.

2

362232R1

BEARING, clutch interlock lever

2шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16 NC x 1-3/4"

2шт.

3

362236R1

ROD, clutch interlock

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x .065 ga) 3/8"

4шт.

4

362231R1

LEVER, power take-off and clutch interlock shifter

1шт.

17141R1

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

5

362233R11

BRACKET, interlock arm

1шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

cap, hex-hd., 3/8-16 NC x 9/16"

1шт.

6

362235R1

ARM, clutch pedal interlock

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

18415R1

PIN, rod end, 3/8" dia. x 27/32" long (interlock arm bracket)

1шт.
