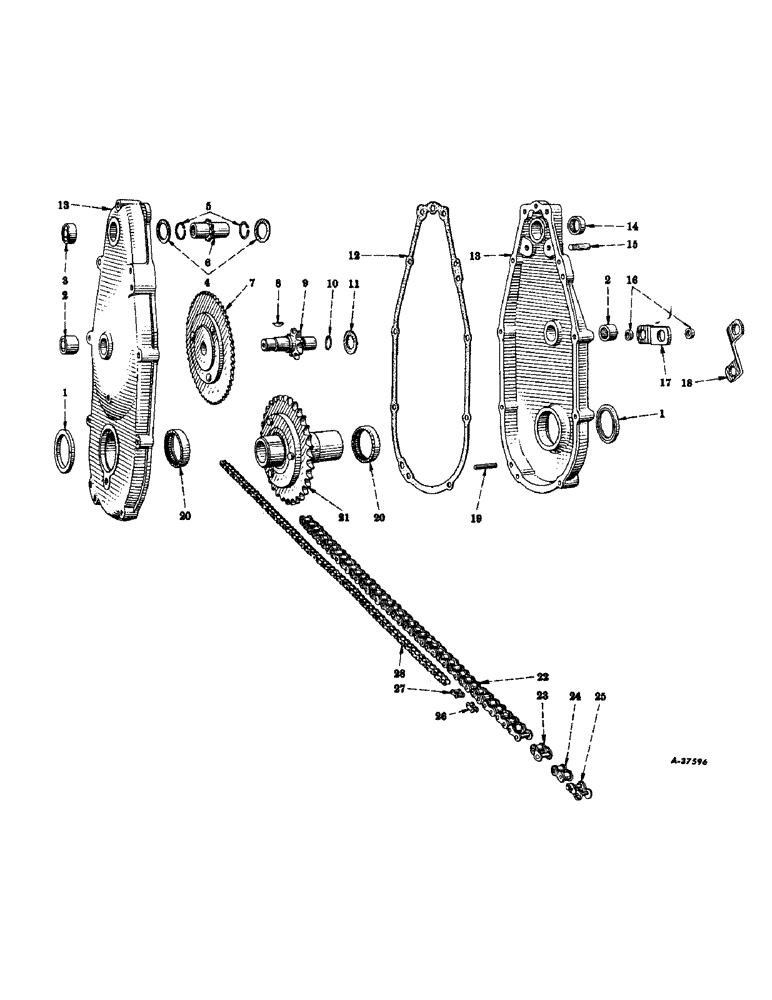

Запчасти Case IH 200 (363) - ATTACHMENTS, HYDRA-CREEPER, SPECIAL, FARMALL 200 TRACTORS Attachments

364681R91

TRANSMISSION, hydra-creeper, assembly (composed of ref. nos. 1 - 28 including the attaching parts plus the following, (1) gasket 362289R1, (1) key 12456, (1) motor 362288R91, (4) nut 103026, (4) washer 110730)

1шт.

1

362255R91

OIL SEAL, driven sprocket

2шт.

2

362252R91

BEARING, needle, idler pinion

2шт.

3

362253R91

BEARING, needle, drive sprocket (closed end)

1шт.

4

362259R1

WASHER, drive sprocket retainer

2шт.

5

362260R1

RING, SNAP

RING, drive sprocket retainer

2шт.

6

362261R1

SPROCKET, drive

1шт.

7

362242R11

SPROCKET, idler, w/hub and three rivets, 104083

1шт.

104083

RIVET,But Hd, 1/4" x 3/4"

solid, rd-hd., 1/4 x 3/4"

3шт.

8

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

1шт.

9

362265R1

PINION, idler (8 teeth)

1шт.

10

362266R1

RING, idler pinion retainer

1шт.

11

362267R1

WASHER, idler pinion retainer

1шт.

12

362258R1

GASKET, housing

1шт.

13

362249R92

HOUSING, and cover, assembly, composed of: (1) bearing 10026R, (2) bearing 362251R91, (2) bearing 362252R91, (1) bearing 362253R91, (1) cover (NSS) 362247R1, (1) gasket 362258R1, (1) housing (NSS) 362246R11, (2) pin 141223, (1) plug 143923

1шт.

143923

PLUG, pipe, sq-hd., stl., 1/8"

1шт.

179821

BOLT,Hex, 5/16" - 18 x 1 3/8", Gr 5

4шт.

179823

BOLT,Hex, 5/16" - 18 x 1 5/8", Gr 5

2шт.

179825

BOLT,Hex, 5/16" - 18 x 1 7/8", Gr 5

3шт.

112723

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

14

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, needle, drive sprocket (open end)

1шт.

15

362250R1

STUD, hydraulic motor mounting

4шт.

16

362206R1

SPACER, hydra-creeper transmission support bracket

2шт.

17

362207R1

BRACKET, hydra-creeper transmission support

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x No. 16 ga.

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

1шт.

18

362208R1

BRACKET, hydra-creeper transmission support (for tractors equipped with belt pulley attachment)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

1шт.

95-11034

WASHER,1/4"

plain, 11/32" I.D. x 11/16" O.D. x No. 16 ga.

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

1шт.

19

141223

DOWEL,5/16" x 1"

PIN, dowel, 5/16 x 1"

2шт.

20

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

driven sprocket

2шт.

21

362243R12

SPROCKET, driven, w/hub and three rivets, 104100

1шт.

18410R1

PIN, roll, driven sprocket (1/8 x 1-3/4")

1шт.

104100

RIVET,But Hd, 5/16" x 1 1/8"

solid, rd-hd., 5/16 x 1-1/8"

3шт.

22

362268R91

CHAIN (AG)

CHAIN, driven sprocket (5/8" pitch)

1шт.

23

1315D

LINK

off-set, assembly (5/8" pitch)

1шт.

1360D

PIN, off-set, link (5/8" pitch)

1шт.

24

1309D

LINK

roller, assembly (5/8" pitch)

1шт.

25

1310D

LINK

connecting, assembly (5/8" pitch)

1шт.

1311D

CLIP, connecting link (5/8" pitch)

1шт.

26

1764D

LINK

rollerless, assembly (3/8" pitch)

1шт.

27

1765D

LINK

connecting, assembly (3/8" pitch)

1шт.

1768D

CLIP, connecting link (3/8" pitch)

1шт.

28

362262R91

CHAIN (AG)

CHAIN, drive sprocket (3/8" pitch)

1шт.
