Запчасти Case IH 200 (357) - ATTACHMENTS, TEL-A-DEPTH VALVE, LINKAGE AND CONNECTIONS, INTERNATIONAL 240 TRACTORS Attachments

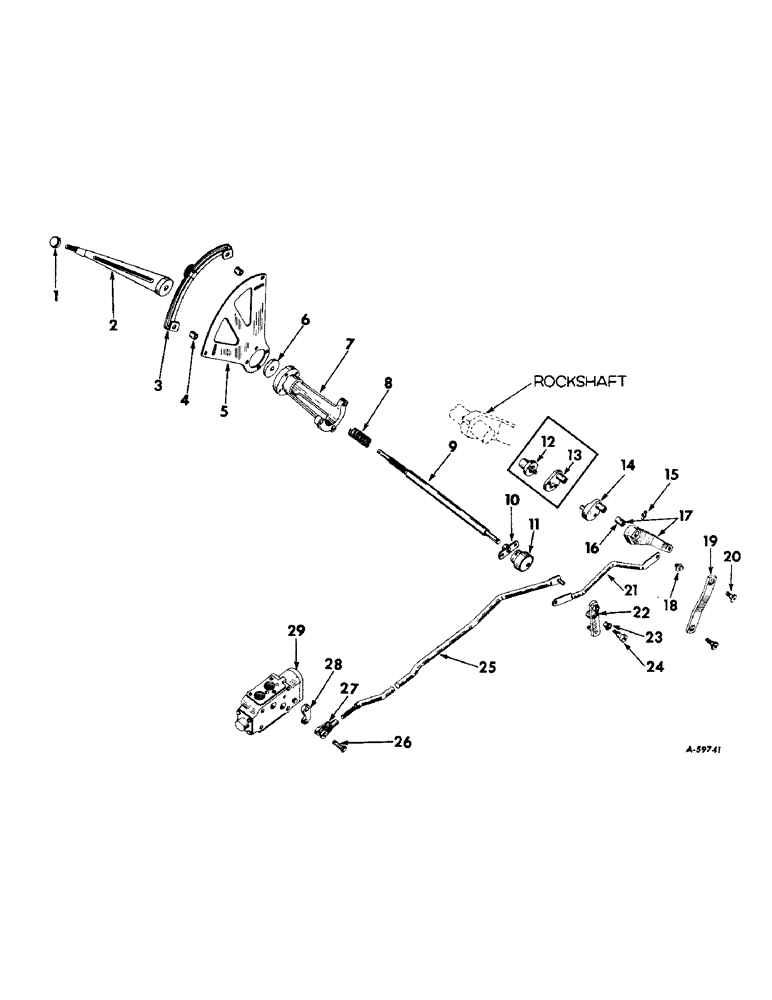

Схема запчастей Case IH 200 - (357) - ATTACHMENTS, TEL-A-DEPTH VALVE, LINKAGE AND CONNECTIONS, INTERNATIONAL 240 TRACTORS Attachments
16
15
26
12
7
13
2
10
14
9
23
20
18
1
22
27
5
4
28
25
17
6
8
24
3
19
21
11
29

Артикул

Название

Примечание

Количество

1

371602R1

KNOB

BALL, tel-a-depth handle (A only)

1шт.

2

371404R11

HANDLE

tel-a-depth, assembly (A only)

1шт.

19506R1

PIN,3/16" x 2", Coiled

(A only) 3/16" x 2", Coiled

1шт.

3

371403R11

GUIDE, tel-a-depth handle, assembly (A only)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(A only) Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

4

371598R1

STOP, tel-a-depth handle (A only)

2шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 3/4" (A only)

2шт.

95-11028

WASHER,1/4"

plain, 9/32" ID x 5/8" OD x .065" ga. (A only)

2шт.

5

371402R11

BRACKET, quadrant support, assembly (A only)

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

(A only) Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, (A only) 1/4"

2шт.

6

371601R1

DISC, friction (A only)

1шт.

7

371597R1

SUPPORT, quadrant (A only)

1шт.

102635

NUT,3/8"-16, G5

(A only) 3/8"-16, G5

3шт.

NLS

NO LONGER SERVICED

(A only) Hex, 3/8"-16 x 1", G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (A only) 3/8"

3шт.

8

371603R1

SPRING, tel-a-depth friction (A only)

1шт.

9

374934R1

SHAFT, tel-a-depth rear lever (A only)

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

hex., jam, cd-pltd., 1/2-20NF (A only)

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

plain, 17/32" ID x 1-1/16" OD x .095" ga. (A only)

1шт.

10

371595R91

BEARING, tel-a-depth lever shaft, assembly (A only)

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, cap, hex-hd., 5/16-18ND x 1/2" (A only)

2шт.

11

374936R1

ECCENTRIC, tel-a-depth control lever shaft (A only)

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

(A only) 3/16" x 1 1/2", Coiled

1шт.

12

374945R11

PLUG, rockshaft pivot, assembly (part of package, 374932R91) (A only)

1шт.

These parts are not included in the three-point hitch industrial field attachment.

1шт.

188438

GROOVED PIN,1/4" x 1 1/2", Type F

PIN - grooved, (A only) 1/4" x 1 1/2", Type F

1шт.

13

374947R11

PLATE, rockshaft pivot, assembly (part of package, 374932R91) (A only)

1шт.

These parts are not included in the three-point hitch industrial field attachment.

1шт.

217949

SCREW, hex-doc-rec-hd., 3/8-24NF x 1/2" (A only)

1шт.

14

374943R11

PLATE, rockshaft pivot, assembly (A only)

1шт.

138221

BRACKET

cap, hex-soc-hd., 5/16-18NC x 3/4" (A only)

1шт.

15

66584D

FITTING

lubrication (compensator arm) (A only)

1шт.

16

375162R1

BUSHING

compensator arm (A only)

1шт.

17

374948R11

ARM, compensator, assembly (A only)

1шт.

18

374955R91

SCREW,Hex, 5/16" - 18 x 0.38", W/ LW

retaining, compensator arm (A only)

1шт.

19

374953R1

SUPPORT

LINK, compensation (A only)

1шт.

20

374954R1

SCREW,Shldr, Hex Skt, 3/8" - 16 x 0.781"

compensating link (A only)

2шт.

21

374951R1

ROD, actuating, rear (A only)

1шт.

137159

COTTER PIN

3/32" x 5/8" (A only)

2шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no. 16 ga. (A only)

2шт.

22

374937R11

BEAM, walking, assembly (A only)

1шт.

23

374940R1

NYLON BEARING

walking beam (A only)

1шт.

24

374942R1

SEAT

SCREW, walking beam (A only)

1шт.

25

374956R11

ROD, front actuating, assembly (A only)

1шт.

120368

NUT,5/16"-24, G5

(A only) 5/16"-24, G5

1шт.

26

121741

FENDER

PIN, rod end, cd-pltd., 5/16" (A only)

1шт.

432-68

COTTER PIN,3/32" x 1/2"

Pin, Split (Cotter), (A only) 3/32" x 1/2"

1шт.

27

144242

CLEVIS

. adjustable rod end, 5/16-24NF (A only)

1шт.

28

374933R1

LEVER, tel-a-depth valve (A only)

1шт.

19494R1

PIN

spirol, 5/32 x 7/8" (A only)

1шт.

29

374910R91

VALVE, tel-a-depth, assembly (for components see list of parts under details of "TEL-A-DEPTH VALVE") (A only)

1шт.

425-107

NUT,7/16"-14, G5

hex., 7/16-14NC (A only)

4шт.

19-259R1

SCREW, cap, hex-hd., 7/16-14NC x 8-1/2" (A only)

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (A only) 7/16"

4шт.

374932R91

PACKAGE, field, tel-a-depth linkage type follow up (Consists of, (1) arm 374911R1, (1) pin 121741, (1) arm 374948R11 (2) pin 137159, (1) beam 374937R11, (1) pin 188438, (1) bolt 374935R1, (1) plate 374947R11, (1) bracket 374960R1

1шт.

Also order tandem oil filter service package, 374983R91, unless the tractor is already so equipped.

1шт.

NSS

NOT SOLD SEPARAT

The following additional parts - illustrated with Hydra-Touch system or as indicated - are included in the three-point industrial hitch attachment and are listed below.

1шт.

374935R1

BOLT, battery hold down (illustrated with battery holder) (A only), additional hydraulic parts

1шт.

374960R1

BRACKET, rear manifold (A only), additional hydraulic parts

1шт.

NLS

NO LONGER SERVICED

cap, hex-hd., 1/4-20NC x 1-5/8" (A only), additional hydraulic parts

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8" (A only), additional hydraulic parts

2шт.

369758R1

CLAMP

manifold tubes, rear (A only), additional hydraulic parts

1шт.

369758R11

CLAMP, rear manifold, assembly (A only), additional hydraulic parts

1шт.

361456R1

COVER, left hand valve (A only), additional hydraulic parts

1шт.

366583R1

COVER, right hand valve (A only), additional hydraulic parts

1шт.

9410360

PLUG

junction block (A only), additional hydraulic parts

2шт.

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, valve (A only), additional hydraulic parts

13шт.

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

RING, seal, rear manifold control valve flange (A only), additional hydraulic parts

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

RING, seal, junction block plug (A only), additional hydraulic parts

2шт.

618631R1

SPACER

rear manifold clamp (A only), additional hydraulic parts

1шт.

369746R91

TUBES, hydraulic manifold, rear, w/block and flange (A only), additional hydraulic parts

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(A only), Additional hydraulic parts Hex, 3/8"-16 x 1", G5

3шт.

360621R93

VALVE

regulator and safety, assembly (A only), additional hydraulic parts

1шт.

Выбрано товаров: 74
