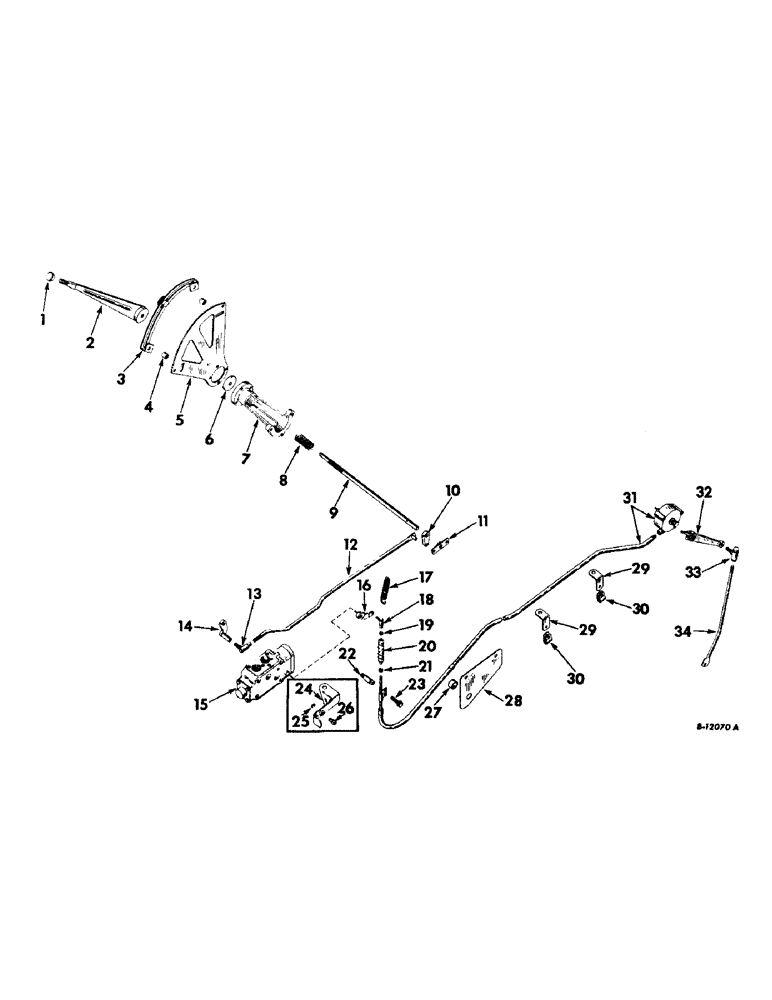

Запчасти Case IH 200 (354) - ATTACHMENTS, TEL-A-DEPTH VALVE, CONTROLS, ROCKSHAFT DRIVE UNIT & CONNECTIONS, INTL 240 TRACTORS Attachments

1

371602R1

KNOB

BALL, tel-a-depth handle

1шт.

2

371404R11

HANDLE

tel-a-depth, assembly

1шт.

19506R1

PIN,3/16" x 2", Coiled

1шт.

3

371403R11

GUIDE, tel-a-depth handle, assembly

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

4

371598R1

STOP, tel-a-depth handle

2шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, cap, hex-hd., 1/4-28NF x 3/4"

2шт.

95-11028

WASHER,1/4"

plain, 9/32" ID x 5/8" OD x .065" ga.

2шт.

5

371402R11

BRACKET, quadrant support, assembly

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

371601R1

DISC, friction

1шт.

7

371597R1

SUPPORT, quadrant

1шт.

102635

NUT,3/8"-16, G5

3шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

8

371603R1

SPRING, tel-a-depth friction

1шт.

9

371594R1

SHAFT, tel-a-depth rear lever

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, hex., jam, 1/2-20NC

2шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

plain, 17/32" ID x 1-1/16" OD x .095" ga.

1шт.

10

371593R1

LEVER, tel-a-depth rear

1шт.

364436R1

PIN,3/16" x 1", Coiled

1шт.

11

371595R91

BEARING, tel-a-depth lever shaft, assembly

1шт.

179812

GEAR

SCREW, cap, hex-hd., 5/16-18NC x 1/2"

2шт.

12

371588R11

ROD, tel-a-depth valve, assembly

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

95-11034

WASHER,1/4"

plain 11/32" ID x 11/16" OD x .065" ga.

1шт.

13

371592R91

BALL JOINT, tel-a-depth valve rod

1шт.

120368

NUT,5/16"-24, G5

2шт.

14

371590R21

LEVER, tel-a-depth, assembly

1шт.

15

371138R92

VALVE, tel-a-depth, assembly (for components see list of parts under details of "TEL-A-DEPTH VALVE")

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14NC

4шт.

19259R1

SCREW, cap, hex-hd., 7/16-14NC x 8-1/8"

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

371701R1

LEVER, tel-a-depth valve follow up

1шт.

19494R1

PIN

spirol, 5/32 x 7/8"

1шт.

17

372631R1

SPRING, tel-a-depth valve lever tension

1шт.

18

371617R91

BALL JOINT, follow up rod

1шт.

103088

NUT,#10-32

hex., no. 10-32NF

2шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

371716R1

CLAMP, follow-up rod boot, small

1шт.

20

371614R1

BOOT, follow-up rod

1шт.

21

371717R1

CLAMP, follow-up rod boot, large

1шт.

22

373568R1

RETAINER, conduit pivot shaft, International 2406083 up

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

373569R1

SCREW, conduit pivot shaft, International 2406083 up

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

95-11034

WASHER,1/4"

plain, 11/32" ID x 11/16" OD x .065" ga.

1шт.

24

371608R11

BRACKET, conduit pivot, assembly, International, Serial Range: 240501-6083

1шт.

25

370290R1

SNAP RING,#50, .392" Dia, E-Type

RING - retaining, , conduit pivot shaft, International 240501 to 6083 #50, .392" Dia, E-Type

1шт.

26

372696R1

SHAFT, conduit pivot, International, Serial Range: 240501-6083

1шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, cap, hex-hd., 5/16-24NF x 1/2"

1шт.

95-11034

WASHER,1/4"

11/32" ID x 11/16" OD x .065" ga.

1шт.

27

15098D

SPACER, conduit guard

1шт.

28

371613R1

GUARD, conduit

1шт.

271612

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

SCREW, cap, hex-hd, 3/4-10NC x 2-1/4"

1шт.

29

367529R1

BRACKET, conduit support

2шт.

30

372417R1

CLIP, conduit support bracket

2шт.

109084

NUT,1/4"-20, G5

2шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, cap, hex-hd, 1/4-20NC x 9/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

31

372853R92

UNIT, rockshaft drive (for components see list of parts under details of "Rockshaft Drive Unit")

1шт.

179805

BOLT,Hex, 1/4" - 20 x 2", Gr 5

cap, hex-hd., 1/4-20NC x 1-7/8"

3шт.

32

371605R2

LEVER

rockshaft drive unit compensator

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

181316

SUPPORT

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

33

371607R91

JOINT

BALL JOINT, compensator rod

1шт.

103026

NUT,3/8"-24, G5

2шт.

34

371606R1

ROD, rockshaft drive unit compensator

1шт.

103362

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x .065 ga) 3/8"

1шт.
