Запчасти Case IH 200 (329) - ATTACHMENTS, FAST-HITCH WITH TRACTION CONTROL, SPECIAL, FARMALL 230 TRACTORS, TRACTION CONTROL UNIT Attachments

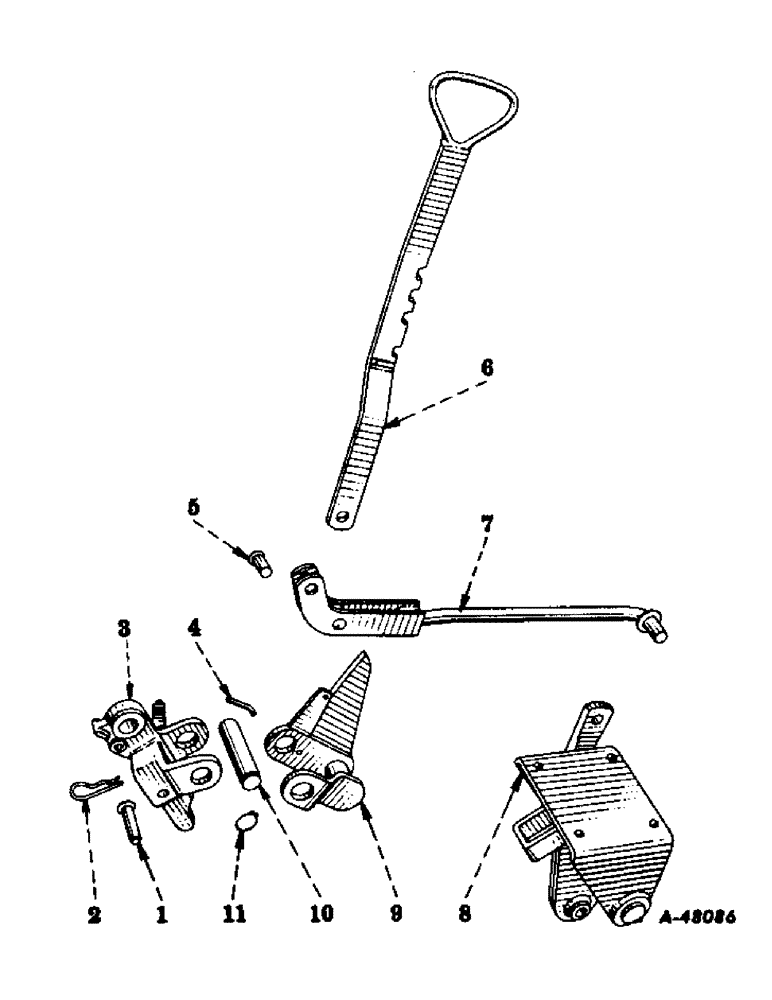

Схема запчастей Case IH 200 - (329) - ATTACHMENTS, FAST-HITCH WITH TRACTION CONTROL, SPECIAL, FARMALL 230 TRACTORS, TRACTION CONTROL UNIT Attachments
4
2
1
6
3
9
5
7
11
10
8

Артикул

Название

Примечание

Количество

1

523174R1

PIN

drawbar lockout

1шт.

2

520175R1

CLIP

PIN, cotter quick attachable (in drawbar lock-out pin)

1шт.

3

523142R12

BELLCRANK, cylinder, traction control

1шт.

4

523116R1

ROD

PIN, lock, traction control cylinder bellcrank

1шт.

5

N62023

PIN, traction control lever

1шт.

13068R1

PIN,3/16" x 1"

- split (Cotter), 3/16" x 1"

1шт.

6

522927R11

HANDLE, traction control adjusting

1шт.

7

523123R11

LINK, traction control

1шт.

Q3501

WASHER

plain, 25/32" ID x 1-1/4" OD x no 16 ga

1шт.

13121R1

PIN - split (Cotter), 1/4" x 1 1/2" 1/4" x 1 1/2"

1шт.

350515R1

WASHER

plain, 21/32" ID x 1" OD x no 16 ga

2шт.

8

523148R91

BRACKET, bellcrank and pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex-hd., 1/2-13 NC x 1-1/4"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

9

523152R91

CAM, bracket, assembly

1шт.

10

522918R1

SHAFT, pivot, traction control

1шт.

11

454319R1

RING

snap, traction control pivot shaft

1шт.

Выбрано товаров: 17
