Запчасти Case IH 200 (318[A]) - ATTACHMENTS, SWINGING DRAWBAR, SPECIAL, FOR FARMALL 200 TRACTORS EQUIPPED WITH FAST-HITCH Attachments

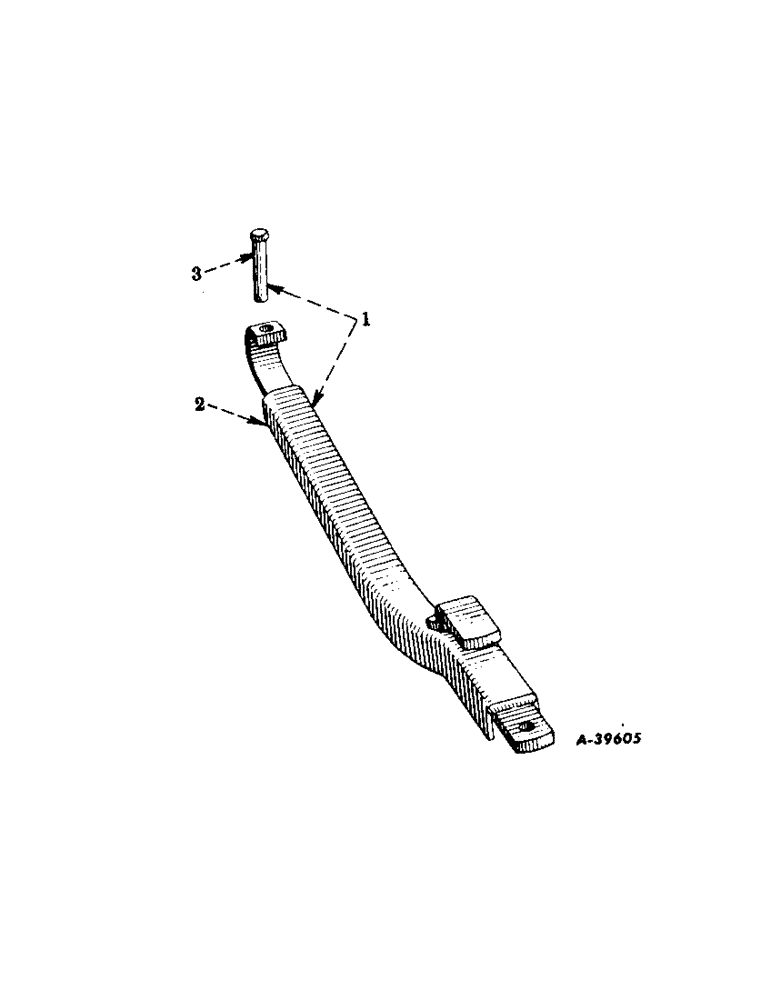

Схема запчастей Case IH 200 - (318[A]) - ATTACHMENTS, SWINGING DRAWBAR, SPECIAL, FOR FARMALL 200 TRACTORS EQUIPPED WITH FAST-HITCH Attachments
1
2
3

Артикул

Название

Примечание

Количество

1

359795R91

ATTACHMENT, swinging drawbar (Farmall 200)

1шт.

2

359580R11

DRAWBAR, swinging

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC

2шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 1-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

359584R1

PIN, pivot, swinging drawbar

1шт.

3

PO18499

COTTER PIN

cotter, quick-attachable

1шт.

Выбрано товаров: 7
