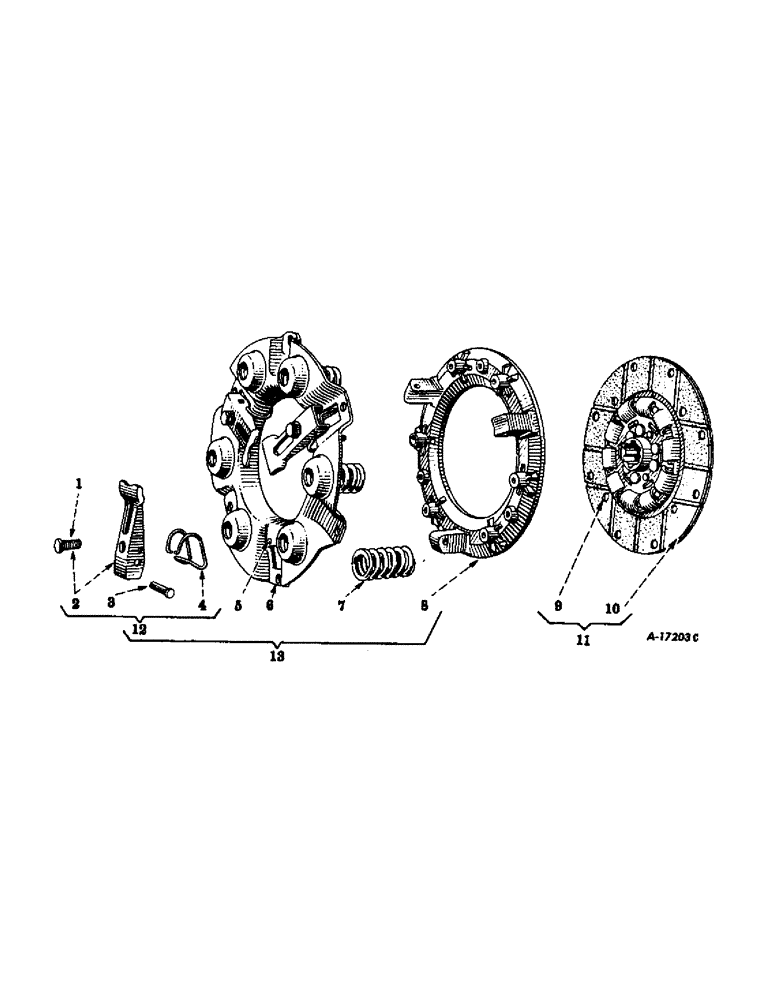

Запчасти Case IH 200 (159) - CHASSIS, CLUTCH, ROCKFORD, FOR FARMALL 200 TRACTORS 501 TO 2288 (12) - CHASSIS

1

352745R1

BOLT,3/8" - 24 x 3/4", Class 2

SCREW, adjusting, clutch lever

1шт.

114494

NUT,Jam, 3/8"-24, G5

NUT, Jam, 3/8"-24, G5

1шт.

2

351449R91

LEVER

LEVER, clutch, w/screw, 352745R1 and nut, 114494

3шт.

3

51460D

STUD

PIN, clutch lever

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

4

51461D

SPRING

SPRING, clutch lever

3шт.

5

7911T

SEAT/SLOT

SEAT, clutch lever adjusting screw (1/4" steel ball)

3шт.

6

352744R91

PLATE ASSY.

PLATE, back, clutch, w/three seats, 7911T

1шт.

7

52907D

SPRING

SPRING, pressure, clutch

6шт.

7

352583R91

SPRING

PACKAGE, clutch pressure spring (consists of six springs, 52907D)

1шт.

8

351448R2

PLATE

PLATE, pressure, clutch

1шт.

9

53795V

RIVET,Csk Hd, 3/16" x 5/16"

RIVET, clutch facing

12шт.

10

30718DXA

FACING

FACING SET, clutch (consists of two facings with twenty-two rivets, 53795V)

1шт.

11

56631DB

DISC

DISC, driven clutch, w/facing set, 30718DXA

1шт.

11

56631DBR

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 9 in., 6Tooth hub, full face friction matl

1шт.

11

56631DBC

CORE-CLUTCH DISC

Return Part Number

1шт.

12

352582R91

LEVER

LEVER, clutch assembly (composed of (3) lever 351449R91, (3) pin 51460D, (3) pin 103373, (3) spring 51461D)

1шт.

13

351447R92

COVER

PLATE, pressure, clutch, assembly (composed of (1) lever 352582R91, (1) plate 351448R2, (1) package, spring 352583R91, (1) plate 352744R91)

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
