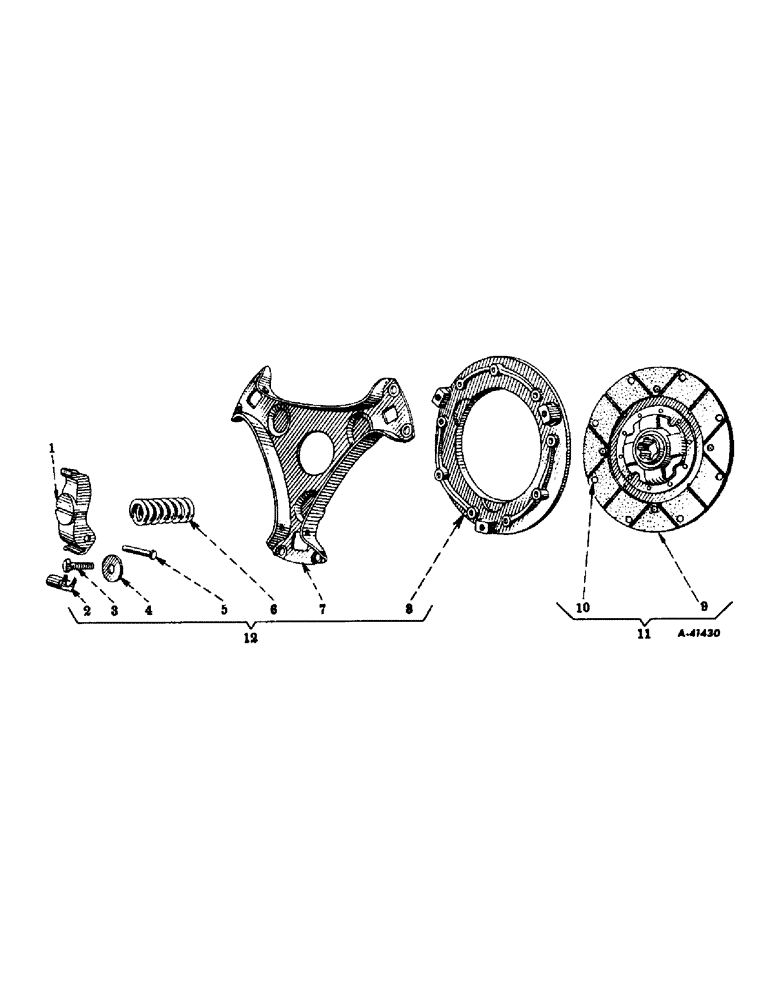

Запчасти Case IH 200 (158) - CHASSIS, CLUTCH, AUBURN, 9 INCHES (12) - CHASSIS

370316R91

CLUTCH

CLUTCH, assembly (order 56620DD)

1шт.

1251692C91

REMAN-CLUTCH PLATE

200 Farmall, 230 Farmall Gas, 240 Farmall, Reman For New P/N 370316R91

1шт.

1944233C1

CORE-CLUTCH PLATE

Return Number

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

1

69904D

SPARE PART LEVER, clutch release

3шт.

2

355110R1

NO LONGER SERVICED

CABLE STRAP/Retired CLIP, return

3шт.

3

355106R1

SPARE PART SCREW, adjusting, clutch release lever

3шт.

114493

JAM NUT,Jam, 5/16"-24, G5

NUT, Jam, 5/16"-24, G5

3шт.

4

355096R1

SPARE PART WASHER, adjusting screw

3шт.

5

63161D

SPARE PART PIN, pivot, clutch release lever

3шт.

6

362602R1

SPARE PART SPRING, pressure

3шт.

7

351918R1

SPARE PART BRACKET, clutch

1шт.

8

357419R1

SPARE PART PLATE, clutch pressure

1шт.

9

30718DXA

FACING

FACING SET, clutch (consists of two facings with twenty-two rivets, 53795V)

1шт.

10

53795V

RIVET,Csk Hd, 3/16" x 5/16"

RIVET, clutch facing

12шт.

11

351297T92

DISC, driven, w/facing set, 30718DXA

1шт.

12

362138R91

PLATE

PLATE, pressure, assembly (composed of (1) bracket 351918R1, (3) clip 355110R1, (3) lever 69904D, (3) nut 114493, (3) pin 63161D, (1) plate 357419R1, (3) screw 355106R1, (3) spring 362602R1, (3) washer 355096R1)

1шт.
