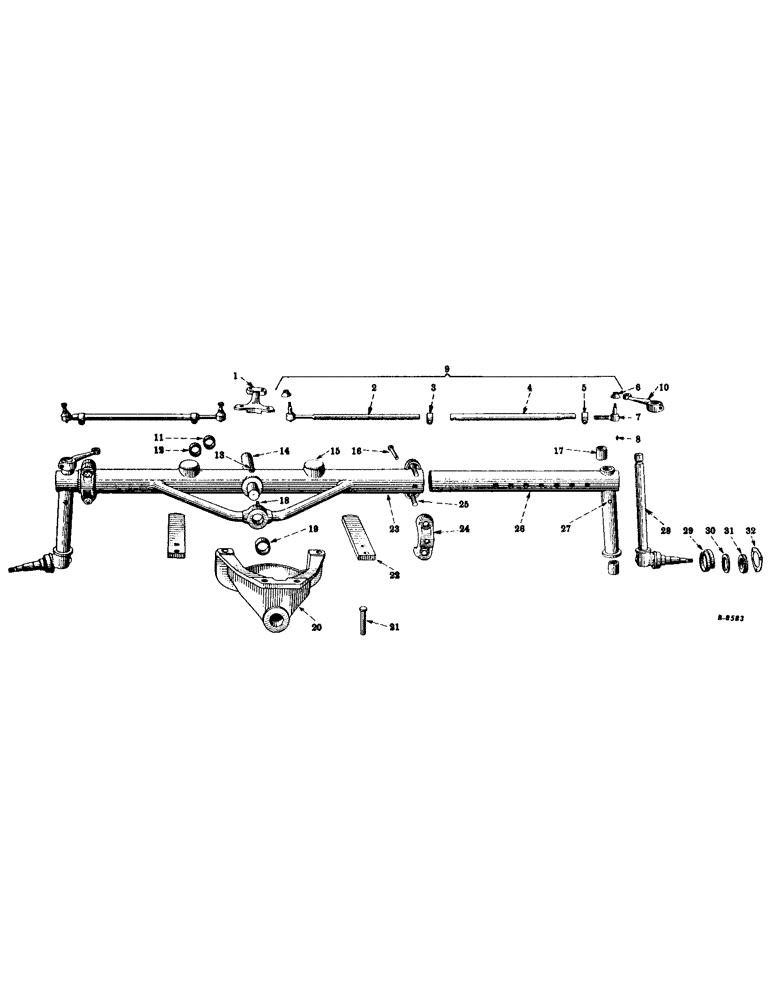

Запчасти Case IH 200 (294) - ATTACHMENTS, ADJUSTABLE WIDE FRONT AXLE ATTACHMENT, SPECIAL, FARMALL 200 & 230 TRACTORS Attachments

1

356599R2

ARM, steering gear

1шт.

425-1110

NUT,5/8"-18, G5

2шт.

414-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

SCREW, cap, hex-hd., 5/8-18NF x 1-3/4", Fine Thread

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

2

356601R21

ROD

TIE ROD, w/end, 356540R91

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

3

43747D

CLAMP

tie rod

2шт.

271505

BODY

hex., 7/16-20NF

2шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

cap, hex-hd., 7/16-20NF x 1-3/4"

2шт.

114607

LOCK, Ext Tooth, 7/16"

2шт.

4

356602R1

TUBE, tie rod 1.005" OD, 18.687" Length

2шт.

352501R94 Adjustable wide tread front axle attachment (40-3/8" axle)(with automotive type tie rod ends)

1шт.

4

358419R1

TUBE, tie rod 0.766" ID, 0.875 - 1.005" OD, 21.625" Length

2шт.

358417R92 Adjustable wide tread front axle attachment (46-3/8" axle)

1шт.

5

356543R1

CLAMP

tie rod

2шт.

103026

NUT,3/8"-24, G5

2шт.

181376

BOLT,Hex, 3/8" - 24 x 1 5/8", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 1-5/8"

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8"

2шт.

6

358209R1

COVER

dust, tie rod end

4шт.

7

356540R91

END

tie rod, w/cover, 358209R1, nut, 102647 and pin, 103385

2шт.

425-138

SLOTTED NUT,1/2"-20, G8

NUT, SLOTTED, 1/2"-20, G8

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (31/64" long) (Optional w/ 271287) 1/4"-28 NPT x .54" lg

4шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (31/64" long) (Optional w/ 109454) 1/4"-28 NPT x .54" lg

4шт.

9

358418R92

TIE ROD, adjustable, assembly (less reference 8) (composed of (1) clamp 43747D, (1) screw 181403, (1) clamp 356543R1, (1) screw 181376, (1) end 356540R91, (1) tube 358419R1, (1) nut 103026, (1) washer 114606, (1) nut 271505, (1) washer 114607

2шт.

358417R92 Adjustable wide tread front axle attachment (46-3/8" axle)

1шт.

9

356600R92

TIE ROD, adjustable, assembly (less reference 8) (composed of (1) clamp 43747D, (1) screw 181403, (1)clamp 356543R1, (1) screw 181376, (1) end 356540R91, (1) tube 356602R1, (1) nut 103026, (1) washer 114606, (1) nut 271505, (1) washer 114607

2шт.

352501R94 Adjustable wide tread front axle attachment (40-3/8" axle)(with automotive type tie rod ends)

1шт.

10

356535R2

ARM

steering knuckle, L.H.

1шт.

10

356536R2

ARM

steering knuckle, R.H.

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

25-118

NUT,1/2"-20, G5

hex., 1/2-20NF

2шт.

181440

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 5

SCREW, cap, hex-hd., 1/2-20NF x 2-1/2"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

353253R1

BUSHING

front axle pivot, front

1шт.

12

353252R1

BUSHING

front axle pivot, rear

1шт.

13

12308R91

FITTING

lubrication, 67-1/2 deg. angle (27/32" long) (For tractors equipped with nipple, 352500R1)

1шт.

13

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, 90 deg. angle (1-3/16" long) (For tractors not equipped with nipple, 352500R1)

1шт.

14

352485R2

SHAFT, front axle pivot

1шт.

15

352482R1

GROMMET

RUBBER, front axle bumper

2шт.

16

59280D

AXLE PIN

PIN, front axle extension clamp

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

17

356609R1

BUSHING,31.42mm ID x 35.89mm OD x 44.45mm L

steering knuckle post

4шт.

18

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, lubrication, drive type, 67-1/2 deg. angle, 1/8" (optional with 443571)

1шт.

18

443571

FITTING

lubrication, drive type, 67-1/2 deg. angle, 1/8" (optional with 273359)

1шт.

19

353254R1

BUSHING

stay rod pivot

1шт.

20

352475R1

BRACKET, axle mounting

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

cap, hex-hd., 5/8-11 NC x 1-3/4"

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

21

6749

PIN

headed, 1/2 x 3-5/16"

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

22

352495R1

STOP, front axle bumper

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

23

352476R91

AXLE, front (46-3/8") w/stay rod, assembly composed of (1) axle 352477R11 (NSS), (2) bracket 352481R1 (NSS), (1) bushing 353253R1, (1) bushing 353252R1, (1) bushing 353254R1, (1) rod 352483R1 (NSS), (2) rubbers 352482R1)

1шт.

358417R92 Adjustable wide tread front axle attachment (46-3/8" axle)

1шт.

23

356593R91

AXLE, front (40-3/8") w/stay rod, assembly composed of (1) axle 356594R11 (NSS), (2) bracket 352481R1 (NSS), (1) bushing 353252R1, (1) bushing 353253R1, (1) bushing 353254R1, (1) rod 352483R1 (NSS), (2) rubbers 352482R1)

1шт.

352501R94 Adjustable wide tread front axle attachment (40-3/8" axle)(with automotive type tie rod ends)

1шт.

24

59279D

CLAMP, front axle extension

4шт.

25

14-1056

BOLT,Hex, 5/8" - 18 x 3-1/2", Gr 5

front axle extension clamp

4шт.

425-1110

NUT,5/8"-18, G5

4шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

26

352486R92

EXTENSION, front axle, w/two bushings, 356609R1

2шт.

26

356595R92

EXTENSION, front axle, w/two bushings, 356609R1

2шт.

352501R94 Adjustable wide tread front axle attachment (40-3/8" axle)(with automotive type tie rod ends)

1шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (31/64" long) (Optional w/ 271287) 1/4"-28 NPT x .54" lg

2шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Straight (31/64" long) (Optional w/ 109454) 1/4"-28 NPT x .54" lg

2шт.

28

356597R92

KNUCKLE, steering, w/deflector, 43462D, oil seal, 43463D and washer, 49118DA

2шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

2шт.

Q1538

WASHER

steel, plain, 5/8"

2шт.

29

43462D

DEFLECTOR

dust, steering knuckle

2шт.

30

49118DA

WASHER,46.02mm ID x 64.29mm OD x 4.78mm Thk

felt, front wheel

2шт.

31

43463D

OIL SEAL

OIL SEAL, front wheel

2шт.

32

49116D

GASKET,0.79mm Thk

front wheel hub cap

2шт.

352500R1

FITTING

NIPPLE, grease, front axle pivot (order 109357)

1шт.
