Запчасти Case IH 200 (145) - CHASSIS, FUEL STRAINER (12) - CHASSIS

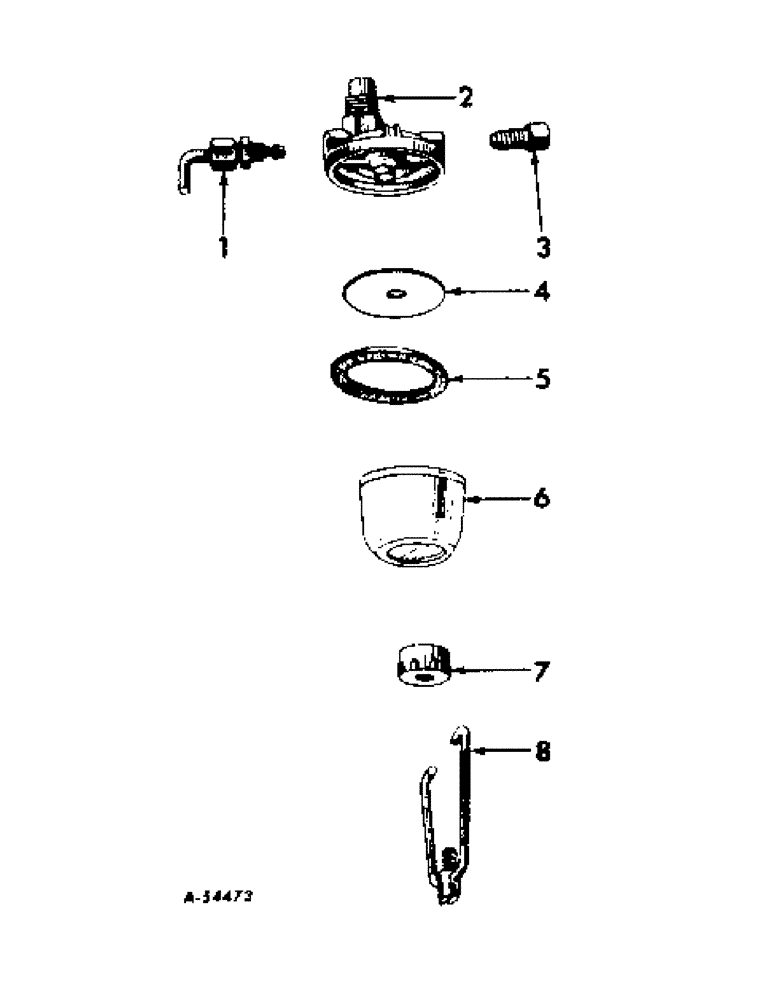

Схема запчастей Case IH 200 - (145) - CHASSIS, FUEL STRAINER (12) - CHASSIS
1
3
2
4
6
7
5
8

Артикул

Название

Примечание

Количество

1

259403R91

COCK

STEM, w/two nuts and packing

1шт.

2

362205R91

BODY

strainer, w/baffle

1шт.

362040R91, Strainer, fuel, assembly (gasoline) Farmall 240 - 501 to, International 240 - 501 to

1шт.

2

355141R91

BODY

strainer, w/baffle

1шт.

357749R91, Strainer, fuel assembly (gasoline) (for tractors equipped with cotton picker mounting parts) (Farmall 200, 230, and 240 tractors)

1шт.

369988R91, Strainer, fuel, assembly (gasoline) (for tractors without cotton picker mounting parts) (Farmall 200 and 230 tractors) Farmall 240 up, International 240 up

1шт.

2

354143R91

STRAINER ELEMENT

BODY, strainer, w/baffle

1шт.

370831R91, Strainer, fuel, assembly (distillate or kerosene) (for tractors not equipped with cotton picker mounting parts) (Farmall 200 and 230 tractors)

1шт.

2

366287R91

BODY, strainer, w/baffle

1шт.

366134R91, Strainer, fuel assembly (distillate) (240 series tractors)

1шт.

3

222-503

TUBE NUT,1/2"-20

NUT, hi-duty tube fitting, brs., 5/16" O.D. tubing

1шт.

357749R91, Strainer, fuel assembly (gasoline) (for tractors equipped with cotton picker mounting parts) (Farmall 200, 230, and 240 tractors)

1шт.

NSS

NOT SOLD SEPARAT

2шт.

370831R91, Strainer, fuel, assembly (distillate or kerosene) (for tractors not equipped with cotton picker mounting parts) (Farmall 200 and 230 tractors)

1шт.

3

369989R1

NUT

fuel strainer coupling

1шт.

369988R91, Strainer, fuel, assembly (gasoline) (for tractors without cotton picker mounting parts) (Farmall 200 and 230 tractors) Farmall 240 up, International 240 up

1шт.

4

49923D

FILTER SCREEN

SCREEN, strainer

1шт.

369988R91, Strainer, fuel, assembly (gasoline) (for tractors without cotton picker mounting parts) (Farmall 200 and 230 tractors) Farmall 240 up, International 240 up

1шт.

357749R91, Strainer, fuel assembly (gasoline) (for tractors equipped with cotton picker mounting parts) (Farmall 200, 230, and 240 tractors)

1шт.

362040R91, Strainer, fuel, assembly (gasoline) Farmall 240 - 501 to, International 240 - 501 to

1шт.

366134R91, Strainer, fuel assembly (distillate) (240 series tractors)

1шт.

4

13194D

STRAINER ASSY.

SCREEN, strainer

1шт.

370831R91, Strainer, fuel, assembly (distillate or kerosene) (for tractors not equipped with cotton picker mounting parts) (Farmall 200 and 230 tractors)

1шт.

5

360679R1

GASKET

strainer (will work for 49924D)

1шт.

369988R91, Strainer, fuel, assembly (gasoline) (for tractors without cotton picker mounting parts) (Farmall 200 and 230 tractors) Farmall 240 up, International 240 up

1шт.

357749R91, Strainer, fuel assembly (gasoline) (for tractors equipped with cotton picker mounting parts) (Farmall 200, 230, and 240 tractors)

1шт.

362040R91, Strainer, fuel, assembly (gasoline) Farmall 240 - 501 to, International 240 - 501 to

1шт.

366134R91, Strainer, fuel assembly (distillate) (240 series tractors)

1шт.

5

355888R2

GASKET

strainer

1шт.

370831R91, Strainer, fuel, assembly (distillate or kerosene) (for tractors not equipped with cotton picker mounting parts) (Farmall 200 and 230 tractors)

1шт.

6

357958R1

BOWL

strainer (glass) (will work for 49922D)

1шт.

369988R91, Strainer, fuel, assembly (gasoline) (for tractors without cotton picker mounting parts) (Farmall 200 and 230 tractors) Farmall 240 up, International 240 up

1шт.

362040R91, Strainer, fuel, assembly (gasoline) Farmall 240 - 501 to, International 240 - 501 to

1шт.

366134R91, Strainer, fuel assembly (distillate) (240 series tractors)

1шт.

6

357778R1

BOWL

strainer (metal)

1шт.

357749R91, Strainer, fuel assembly (gasoline) (for tractors equipped with cotton picker mounting parts) (Farmall 200, 230, and 240 tractors)

1шт.

6

357957R1

BOWL

strainer (glass) (will work for 51344VA)

1шт.

370831R91, Strainer, fuel, assembly (distillate or kerosene) (for tractors not equipped with cotton picker mounting parts) (Farmall 200 and 230 tractors)

1шт.

7

50061D

NUT

strainer

1шт.

369988R91, Strainer, fuel, assembly (gasoline) (for tractors without cotton picker mounting parts) (Farmall 200 and 230 tractors) Farmall 240 up, International 240 up

1шт.

357749R91, Strainer, fuel assembly (gasoline) (for tractors equipped with cotton picker mounting parts) (Farmall 200, 230, and 240 tractors)

1шт.

362040R91, Strainer, fuel, assembly (gasoline) Farmall 240 - 501 to, International 240 - 501 to

1шт.

366134R91, Strainer, fuel assembly (distillate) (240 series tractors)

1шт.

7

17565DA

CUP

NUT, strainer

1шт.

370831R91, Strainer, fuel, assembly (distillate or kerosene) (for tractors not equipped with cotton picker mounting parts) (Farmall 200 and 230 tractors)

1шт.

8

49947D

COLLAR CLAMP

BAIL, strainer

1шт.

369988R91, Strainer, fuel, assembly (gasoline) (for tractors without cotton picker mounting parts) (Farmall 200 and 230 tractors) Farmall 240 up, International 240 up

1шт.

357749R91, Strainer, fuel assembly (gasoline) (for tractors equipped with cotton picker mounting parts) (Farmall 200, 230, and 240 tractors)

1шт.

362040R91, Strainer, fuel, assembly (gasoline) Farmall 240 - 501 to, International 240 - 501 to

1шт.

366134R91, Strainer, fuel assembly (distillate) (240 series tractors)

1шт.

8

17564D

HOLDER

BAIL, strainer

1шт.

370831R91, Strainer, fuel, assembly (distillate or kerosene) (for tractors not equipped with cotton picker mounting parts) (Farmall 200 and 230 tractors)

1шт.

Выбрано товаров: 52
