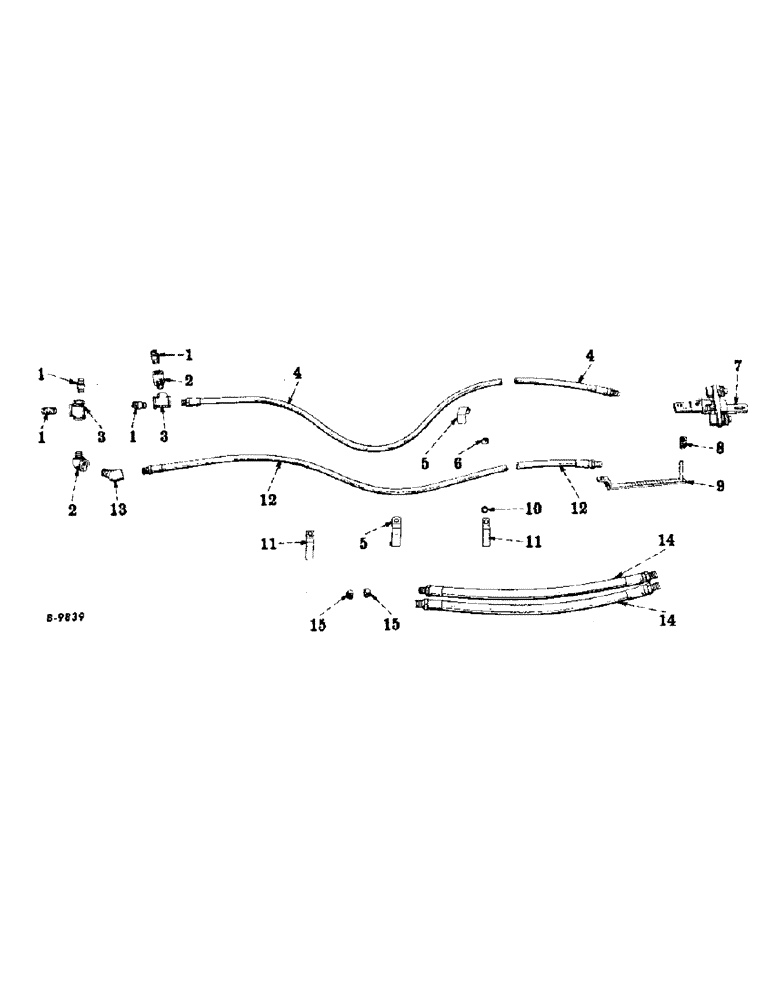

Запчасти Case IH 200 (281) - HYDRAULIC SYSTEM, HYDRAULIC REMOTE CONTROL, SPECIAL, FARMALL 230 TRACTORS (07) - HYDRAULIC SYSTEM

1

192074

NIPPLE, LUBE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE, pipe, 1/2 x 1-1/8"

1шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

2

364148R1

ELBOW

street

2шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

3

368241R1

TEE, female

2шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

4

368248R91

HOSE, LH valve to break-away coupling (long) (3/8" ID x 68" long)

1шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

5

368242R1

GUIDE, hydraulic hose

2шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

102635

NUT,3/8"-16, G5

1шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

179836

SCREW,Hex, 3/8" - 16 x 11/16"

cap, hex-hd., 3/8-16NC x 11/16"

1шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

6

356836R1

SPACER, hydraulic hose guide

1шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

7

364311R91

COUPLING, front section, hydraulic break-away (for components see list of parts under details of "break-away and self-sealing couplings")

1шт.

8

353213R2

SPRING

break-away coupling bracket

1шт.

9

368239R11

BRACKET, break-away coupling, w/pin

1шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

179846

LEVER

hex-hd., 3/8-16NC x 1-3/4"

1шт.

19849H

WASHER, plain, 33/64" ID x 1-3/8" OD x no. 11 ga.

2шт.

10

24523D

WASHER

SPACER, hydraulic hose clamp

1шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

11

368243R1

CLAMP, hydraulic hose

2шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

1шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

12

368249R91

HOSE, LH valve to break-away coupling (short) (3/8" ID x 66" long)

1шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

13

444496

ELBOW, street, automotive pipe, 45 deg., brs., 1/2"

1шт.

368238R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch (double valve) system

1шт.

14

355513R92

HOSE

junction block to break-away coupling (1/2" ID x 21" long)

2шт.

368237R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch rear manifold tubes)

1шт.

15

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga), Spacer 3/8"

2шт.

368237R91, Remote control parts accessory (for Farmall 230 tractors equipped with hydra-touch rear manifold tubes)

1шт.

368710R1

CAP

dust, break-away coupling, front section (illustrated with "break-away and self-sealing coupling")

2шт.
