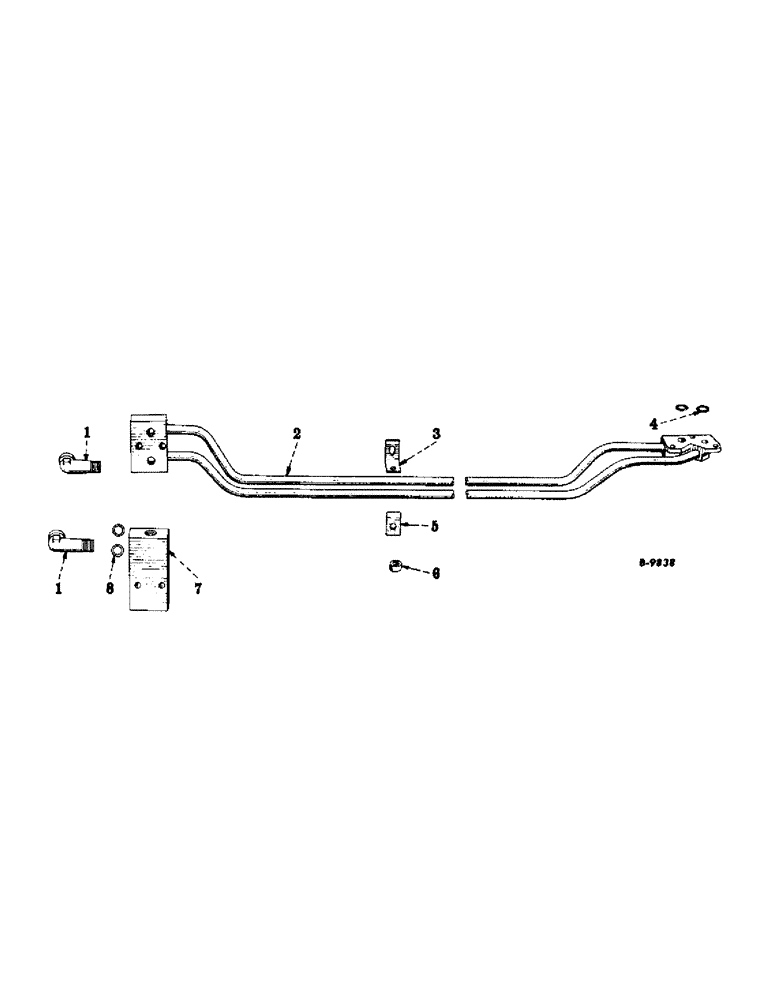

Запчасти Case IH 200 (280) - HYDRAULIC SYSTEM, HYDRA-TOUCH REAR MANIFOLD TUBES (07) - HYDRAULIC SYSTEM

366629R1

REAR MANIFOLD TUBES PARTS ACCESSORY

1шт.

Consists of all the parts listed below, except as noted

1шт.

1

366627R1

ELBOW, street, 90 deg., automotive pipe, Serial Range: 1/2-1/4"

1шт.

See fast-hitch cylinder parts accessory

1шт.

2

366630R91

TUBES, hydraulic rear, manifold, w/block and flange

1шт.

102635

NUT,3/8"-16, G5

2шт.

362355R3

PLUG

hydraulic rear manifold tube junction block (optional with 365239R1)

2шт.

365239R1

PLUG, hydraulic rear manifold tube junction block (optional with 362355R3)

2шт.

444703

PLUG,Hex Soc, 1/2"-14

automotive pipe, hex-socket, stl., 1/2"

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

4шт.

3

366634R1

SUPPORT, manifold clamp, rear

1шт.

4

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

RING, seal, hydraulic manifold flange, rear

2шт.

5

366635R1

CLAMP, manifold tubes, rear

1шт.

6

356836R1

SPACER, manifold tube clamp, rear

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

181316

SUPPORT

1шт.

173124

WASHER

lock, internal-external, 1/4"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

(In rear frame cover) Hex, 3/8"-16 x 2", G5

1шт.

7

362705R91

VALVE

check (for components see list of parts under detail of "check valve")

1шт.

See fast-hitch cylinder parts accessory

1шт.

444703

PLUG,Hex Soc, 1/2"-14

automotive pipe, hex-socket, stl., 1/2"

1шт.

See fast-hitch cylinder parts accessory

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 3-1/4"

1шт.

See fast-hitch cylinder parts accessory

1шт.

8

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, check valve

1шт.

See fast-hitch cylinder parts accessory

1шт.
