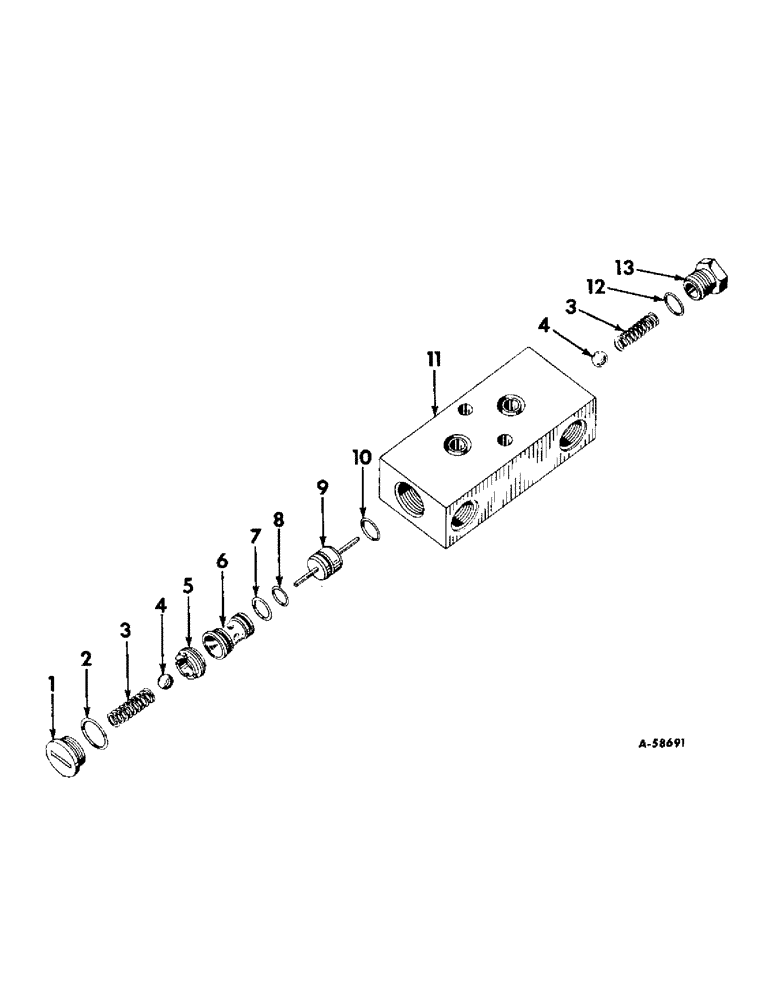

Запчасти Case IH 200 (279) - HYDRAULIC SYSTEM, CHECK VALVE, DOUBLE ACTING (07) - HYDRAULIC SYSTEM

374083R91

VALVE

check, assembly

1шт.

1

374088R1

PLUG

check valve

1шт.

2

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

RING, seal check valve plug

1шт.

3

372649R1

SPRING

check valve

2шт.

4

17016R1

BALL,1/2" Dia

2шт.

5

374172R1

NUT

check valve ball retainer

1шт.

6

374087R11

RETAINER

check valve ball, assembly

1шт.

7

574069R1

O-RING,0.750" ID x .062"

RING, seal, ball retainer (large)

1шт.

8

298385R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

RING, seal, ball retainer (small)

1шт.

9

374085R11

PISTON

check valve actuator, assembly

1шт.

10

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, piston

1шт.

11

374084R1

BLOCK, check valve

1шт.

12

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

RING, seal, check valve plug

1шт.

13

374089R1

PLUG

check valve

1шт.
