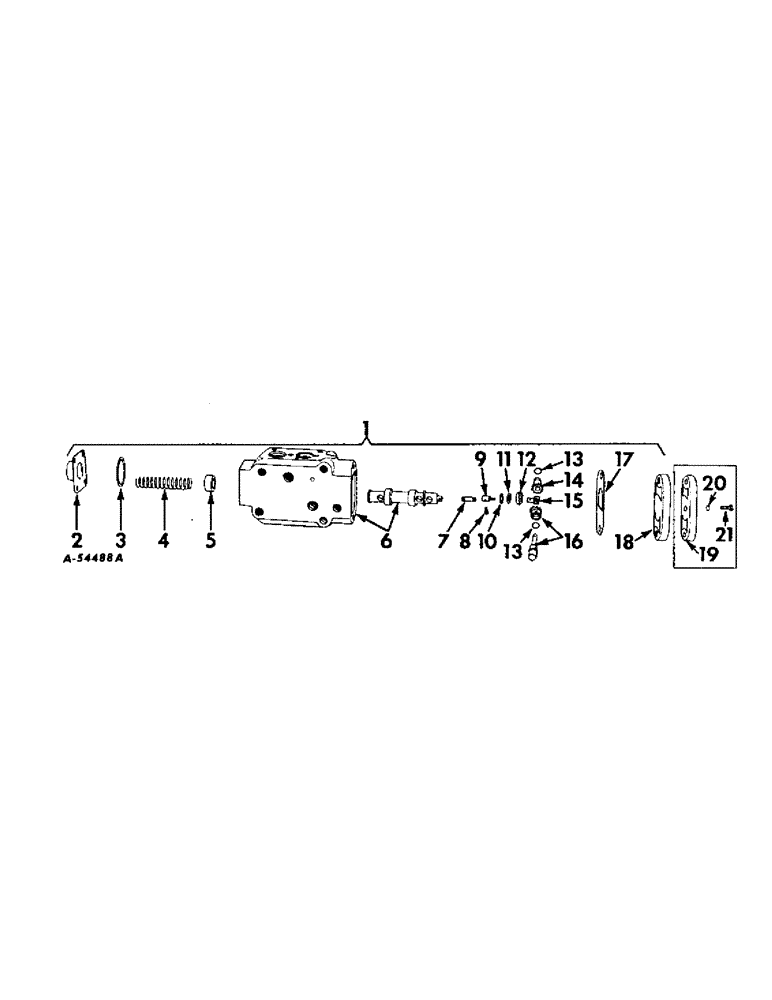

Запчасти Case IH 200 (273) - HYDRAULIC SYSTEM, TEL-A-DEPTH VALVE (07) - HYDRAULIC SYSTEM

1

375138R92

VALVE, tel-a-depth, assembly

1шт.

2

360607R1

CAP

tel-a-depth valve

1шт.

180016

SPRING

SCREW, cap, hex-hd., 1/4-20NC x 1/2"

4шт.

3

360610R1

O-RING,1.609" ID x 0.139" Width

RING, seal, valve cap

1шт.

4

370701R2

SPRING, valve spool centering

1шт.

5

371156R1

CUP, centering spring

1шт.

6

NSS

NOT SOLD SEPARAT

BODY, tel-a-depth valve (not serviced separately - order valve assembly)

1шт.

7

371146R1

BAR

LINK, valve spool

1шт.

141107

KNIFE

PIN, dowel, 1/8 x 3/8"

1шт.

8

371162R1

PIN

valve spool link yoke

1шт.

148145

RETAINER, 3/32" spring

1шт.

446120

WASHER,#6

plain, 5/32" ID x 5/16" OD x .035 ga.

1шт.

9

371157R1

YOKE

valve spool link

1шт.

10

373170R1

WASHER

WASHER, idler gear

1шт.

11

372637R1

SHIM

idler gear, light

1шт.

11

372636R1

SHIM

idler gear, heavy

1шт.

12

371155R1

GEAR

idler

1шт.

13

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, valve shaft

2шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE AND GEAR, control lever, assembly (not serviced separately - order package, 375151R91)

1шт.

372728R1

PIN, dowel, sleeve and gear

1шт.

15

371154R1

SHAFT

idler gear eyebolt

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT AND GEAR, support and stabilizer, assembly (not serviced separately - order package, 375151R91)

1шт.

372775R1

PIN

shaft and gear

1шт.

17

360620R1

GASKET

valve cover

1шт.

18

370702R1

COVER, valve

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

2шт.

19

373240R1

COVER, valve lockout (without countersunk hole for seal ring) (order package, 374800R91)

1шт.

Used for locking out tel-a-depth valve spool.

1шт.

19

374799R1

COVER, valve lockout (with countersunk hole for seal ring)

1шт.

Used for locking out tel-a-depth valve spool.

1шт.

20

252738R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

RING, seal, valve lockout cover screw

1шт.

UNIT, seat suspension, assembly (composed of (1) absorber 351750R93, (1) plate 355750R12, (1) bolt 351751R1, (1) retainer 351128R1, (1) bolt, 181413, (1) rod 355753R1, (1) bracket 352599r94, (2) screw 181427, (2) bushing 361140r1, (2) spacer 354731R1, (1) lever 362671R1, (1) spring 352105R1, (1) locator 352600r91, (1) spring 354671R2, (1) nut 354732R1, (1) tube 354730R1, (1) nut 271505, (1) washer 103322, (1) nut 551172R1, (2) washer 103323)

1шт.

21

373103R1

SCREW, valve lockout cover (used with cover, 373240R1 - order package, 374801R91)

1шт.

UNIT, seat suspension, assembly (composed of (1) absorber 351750R93, (1) plate 355750R12, (1) bolt 351751R1, (1) retainer 351128R1, (1) bolt, 181413, (1) rod 355753R1, (1) bracket 352599r94, (2) screw 181427, (2) bushing 361140r1, (2) spacer 354731R1, (1) lever 362671R1, (1) spring 352105R1, (1) locator 352600r91, (1) spring 354671R2, (1) nut 354732R1, (1) tube 354730R1, (1) nut 271505, (1) washer 103322, (1) nut 551172R1, (2) washer 103323)

1шт.

21

374798R1

SCREW, valve lockout cover

1шт.

UNIT, seat suspension, assembly (composed of (1) absorber 351750R93, (1) plate 355750R12, (1) bolt 351751R1, (1) retainer 351128R1, (1) bolt, 181413, (1) rod 355753R1, (1) bracket 352599r94, (2) screw 181427, (2) bushing 361140r1, (2) spacer 354731R1, (1) lever 362671R1, (1) spring 352105R1, (1) locator 352600r91, (1) spring 354671R2, (1) nut 354732R1, (1) tube 354730R1, (1) nut 271505, (1) washer 103322, (1) nut 551172R1, (2) washer 103323)

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

1шт.

374800R91

PACKAGE, service, valve lockout cover (will work for 373240R1) (consists of (1) cover 374799R1, (1) screw 374798R1, (1) nut 114494, (1) washer 103341, (1) ring 252738R1)

1шт.

374801R91

PACKAGE, valve lockout screw (will work for 373103R1) (consists of (1) nut 114494, (1) screw 374798R1, (1) ring 252738R1, (1) washer 103341

1шт.

375151R91

PACKAGE, service, tel-a-depth valve gear

1шт.
