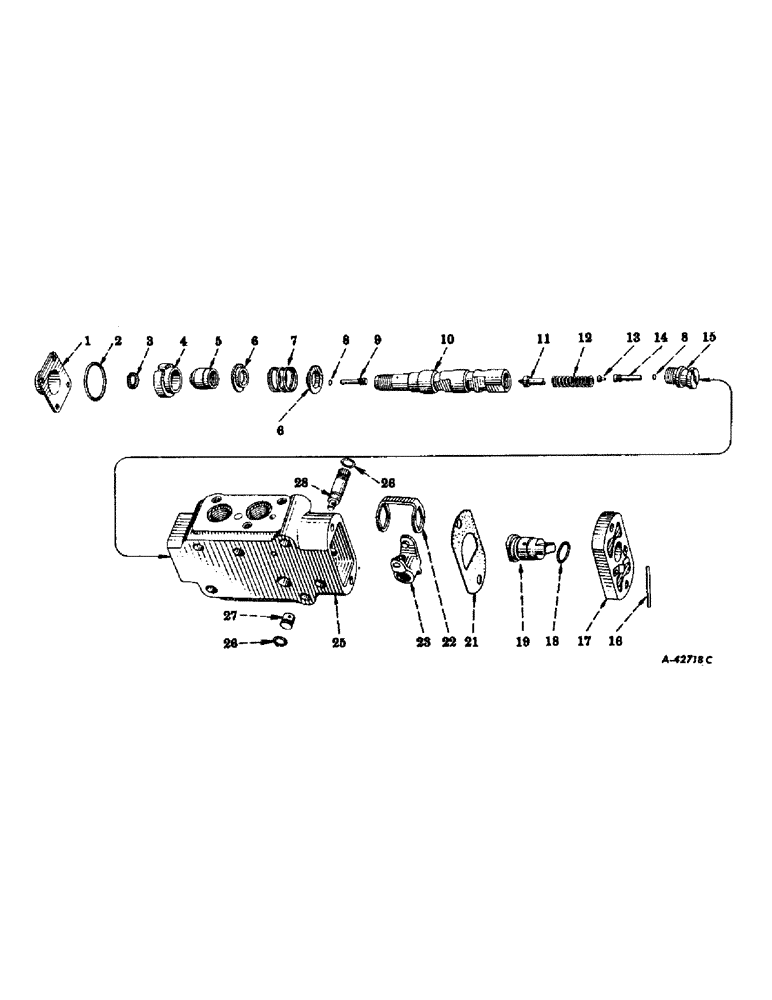

Запчасти Case IH 200 (271) - HYDRAULIC SYSTEM, HYDRA-TOUCH CONTROL VALVE, FOR TRACTORS EQUIPPED WITH HYDRA-TOUCH SYSTEM (07) - HYDRAULIC SYSTEM

371061R92

VALVE, hydra-touch control, assembly (used in single and double valve position) (Farmall and International 240 tractors) (column C)

1шт.

371062R92

VALVE, hydra-touch control, assembly (used in triple valve position) (Farmall and International 240 tractors) (column D)

1шт.

1

360607R1

CAP

control valve

1шт.

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

SCREW, cap, hex-hd., 1/4-20NC x 1/2"

4шт.

2

360610R1

O-RING,1.609" ID x 0.139" Width

RING, seal, control valve cap

1шт.

3

360606R1

SPRING,Extension, 0.174" OD x 1.90" L

garter

1шт.

4

360609R1

SLEEVE, garter spring (optional with 374012R91)

1шт.

4

374012R91

SLEEVE, garter spring (optional with 360609R1)

1шт.

5

360605R1

RETAINER, unlatching piston, lower

1шт.

6

360595R1

RETAINER, control valve centering spring

2шт.

7

360594R2

SPRING

control valve centering

1шт.

8

361300R1

O-RING,0.145" ID x 0.07" Width

RING, seal, unlatching piston

2шт.

9

361024R1

PISTON

unlatching, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE, control, w/seat insert (not serviced separately - order 371068R92)

1шт.

Hydra-touch control valve, assembly (used in single and double valve position) (Farmall and International 240 tractors)

1шт.

Hydra-touch control valve, assembly (used in triple valve position) (Farmall and International 240 tractors)

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE, control, w/seat insert (not serviced separately - order 365986R92)

1шт.

365981R92, Valve, hydra-touch control, assembly (will work for 360590R92) (used in double valve position) Farmall 230 tractors

1шт.

365985R92, Valve hydra-touch control, assembly (used in single valve position) service note - this valve is the same as valve, 365981R92, except that the control valve lever shaft and yoke assembly is reversed 180 degrees. This assembly position is not illustrated here. (Farmall 230 tractors)

1шт.

11

360600R1

VALVE

unlatching

1шт.

12

360601R1

SPRING

unlatching valve

1шт.

13

362164R11

VENT

PLUG AND SCREEN, control valve orifice

1шт.

14

360596R1

PISTON

unlatching, upper

1шт.

15

360604R2

RETAINER, unlatching piston, upper (has 3/4-16NF thread)

1шт.

15

374335R1

RETAINER, unlatching piston, upper (has 9/16-18NF thread)

1шт.

16

17165R1

LOCK PIN,1/8" x 1 3/4", Slotted

PIN, 1/8" x 1 3/4", Slotted

1шт.

17

360617R11

COVER, control valve body, w/clip and two rivets, 14217R1

1шт.

14217R1

RIVET, solid, rd-hd., no. 9 x 5/8"

2шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

SCREW, cap, hex-hd., cd-pltd., 3/8-16NC x 1-1/8"

2шт.

18

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

RING, seal, control valve indexing bushing (43/64" ID)

1шт.

19

360619R1

BUSHING, control valve indexing

1шт.

365981R92, Valve, hydra-touch control, assembly (will work for 360590R92) (used in double valve position) Farmall 230 tractors

1шт.

365985R92, Valve hydra-touch control, assembly (used in single valve position) service note - this valve is the same as valve, 365981R92, except that the control valve lever shaft and yoke assembly is reversed 180 degrees. This assembly position is not illustrated here. (Farmall 230 tractors)

1шт.

19

370697R1

BUSHING, control valve indexing

1шт.

Hydra-touch control valve, assembly (used in single and double valve position) (Farmall and International 240 tractors)

1шт.

Hydra-touch control valve, assembly (used in triple valve position) (Farmall and International 240 tractors)

1шт.

21

360620R1

GASKET

control valve cover

1шт.

22

360611R1

GUIDE

control vavle

1шт.

23

360612R11

YOKE, control valve, w/two pin

1шт.

25

365986R92

BODY, control valve, w/five plugs, retainer, 374335R1 and valve

1шт.

365981R92, Valve, hydra-touch control, assembly (will work for 360590R92) (used in double valve position) Farmall 230 tractors

1шт.

365985R92, Valve hydra-touch control, assembly (used in single valve position) service note - this valve is the same as valve, 365981R92, except that the control valve lever shaft and yoke assembly is reversed 180 degrees. This assembly position is not illustrated here. (Farmall 230 tractors)

1шт.

25

371068R92

BODY, control valve, w/seven plugs, retainer, 374335R1 and valve

1шт.

Hydra-touch control valve, assembly (used in single and double valve position) (Farmall and International 240 tractors)

1шт.

Hydra-touch control valve, assembly (used in triple valve position) (Farmall and International 240 tractors)

1шт.

9410360

PLUG

hydra-touch valve

4шт.

Hydra-touch control valve, assembly (used in single and double valve position) (Farmall and International 240 tractors)

1шт.

Hydra-touch control valve, assembly (used in triple valve position) (Farmall and International 240 tractors)

1шт.

26

355967R1

O-RING,0.364" ID x 0.003" Width

RING, seal, control valve lever shaft

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

hydra-touch valve plug

4шт.

Hydra-touch control valve, assembly (used in single and double valve position) (Farmall and International 240 tractors)

1шт.

Hydra-touch control valve, assembly (used in triple valve position) (Farmall and International 240 tractors)

1шт.

27

360615R1

BUSHING

control valve lever shaft

1шт.

17164R1

LOCK PIN,3/32" x 7/16", Slotted

PIN, 3/32" x 7/16", Slotted

1шт.

28

360614R1

SHAFT

control valve lever

1шт.
